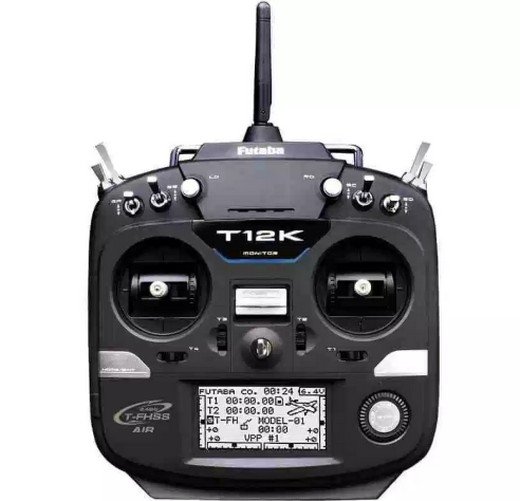

Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver  [12K]

Made with the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K works with with very nearly several different Futaba receivers to permit for modelers' demands. The 12K can move and get telemetry information through T-FHSS protocol. Simply install Futaba telemetry sensors (offered individually) observe trip information, accept alerts during trip and even more. These sensors allow pilots to help keep an eye fixed on battery voltage, altitude, rate alongside key journey functions.

And telemetry, the 12K may be employed with S.Bus2 gear to add multiple servos, gyros and much more to set-ups with less cables. Pilots with non-telemetry set-ups takes benefit of the interference-free S-FHSS protocol. A huge, backlit LCD display, expandable 30-model memory, a 6V 1800mAh NiMH battery pack and charger are just some more connected with features the 12K provides.

Pick from airplane and heli 12K systems with the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized about applications.

Transmitter Qualities:

• Networks: 14 (12 proportional, 2 switched)
• Compatible with T-FHSS and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four electronic trims and two push buttons for fast, quick access
• Headphone plug, trainer slot and S.Bus plug-in
• S.Bus2 system enables numerous servos, gyros and telemetry sensors with a range cables
• Model kinds: six types of primary wing with three end types for airplanes, six swash sorts for helis and multi-rotor functions
• Enhanced stick feel with adjustable lengths and stress
• Dual rates/exponential
• Included 6V 1800mAh NiMH battery power and charger
• Large, backlit LCD display with adjustable comparison for easier reading. Push/dial operation simplifies set-up
• Micro storage space device slot for saving model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, not included)
• Vibration function alerts pilots to different alarms and timers, besides to noise
• 10-character model naming
• Expandable 30-model memory
• 5 trip conditions (Helicopter and Glider model options)
• 5 customizable programmable mixes
• Servo make certain you servo destination display
• Fuel mixing
• Stick calibration
• Servo speed
• Logic switching

Airplane Qualities:

• 6 wing kinds
• 3 tail wing kinds
• 5 journey modes
• Pitch curve
• Throttle bend
• Throttle wait
• Aileron differential
• Flap setting
• Aileron to camber flaps
• Aileron to brake flaps
• Aileron to rudder
• Rudder to aileron
• Camber mix
• Elevator to camber
• Camber flap to elevator
• Butterfly function
• Trim mix
• Air stopping system
• Gyro mix
• V-Tail
• Ailevator (dual elevator)
• Winglet
• Engine rate
• Rudder to elevator
• Snap roll
• Multi-engine functionality
• Airbrake
• Helicopter F

Helicopter Properties:

• Six swash types
• Pitch fold and pitch trim
• Throttle fold and throttle hover trim
• Throttle hold
• Swash band
• Pitch to needle
• Pitch to rudder (revolution mixing)
• Gyro blending
• Governor mixing
• Timer settings
• Throttle % timer

Glider Properties:

• Glider-specific functions
• 6 wing kinds
• 3 end wing types

Multirotor Qualities:

• Throttle stick destination warning
• Gyro Sense
• Flight Mode
• Throttle Curve
• Throttle Delay

R3008SB Receiver Features:

• T-FHSS protocol
• Double Antenna Diversity
• S.Bus/S.Bus2 ports (S.Bus2 slot for bidirectional telemetry sensors)
• 8-channel PWM conventional ports
• High voltage
• Battery fail-safe
• External voltage slot: 0-70V DC
• Power requirement: 4.8-7.4V
• Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
• Body fat: 0.36 oz (10.1 g)
