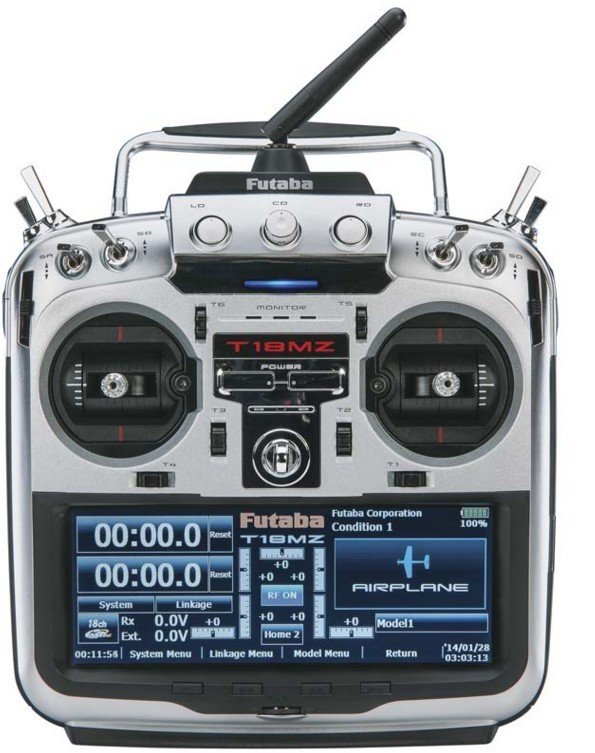

Futaba 18MZA 18-Channel 2.4G T-FHSS with R7008SB TX-Li Ion 18MZ Airplane Version Transmitter  [FP-18MZA-WC]

Futaba 18MZ 18-channel 2.4GHz Computer broadcast System
whenever sheer quantity of actions you are able to take aided by the 18MZ is impressive, the quantity of means it provides you for doing them is absolutely nothing in short supply of awe-inspiring. There's computer software for airplanes, helis and gliders, eight trip conditions and ten programmable mixes for every and a lot of factory-programmed mixes. And even more features than you'll probably used in years of traveling.

If that's real, well-known genuine real question is, "Why contain them?" The response is easy: it's because no two pilots arranged a radio in correctly identical means. The main explanation the 18MZ provides such unparalleled setup and performance versatility is very maybe it's setup inside main method of all: yours.

Features:

• Using the high-voltage R7008SB, your servo and channel alternatives are wide open.Use around 8 networks with standard PWM outputs,up to 18 organizations (16 proportional + 2 switched) through two S.Bus ports, and revel in S.Bus setup convenience and programmable performance.
• Built-in 0.3 megapixel camera makes using aircraft ID photos simple and fast.
• The 6" diagonal (152 mm) HVGA touchscreen display provides 640 x 240 meaning and adjustable backlighting for outstanding presence. SensorTouch technology lets you navigate and prepare with cost and ease.
• Two USB ports offer simple just how to relate genuinely to a keyboard or mouse, down load and storage area telemetry information or access setups saved on an external memory stick.
• This serial interface provides the same convenience when the stand-alone CIU-2. It's ideal for development GY520 and CGY750 gyros, and S.Bus and S.Bus2 Servos.
• Stick views adjust effortlessly, to tailor the 18MZ's feel to your hand.
• The 18MZ comes with a 7.4V, 3500mAh LiPo transmitter battery pack. Provides power for about 6 hours of uninterrupted traveling.
• With effortless Link ID, you are able to link the transmitter and receiver with a tap regarding the touch screen.
• Large spacing between shoulder switches renders space the arms to remainder.
• The elimination of one screw frees the entire switch block. Specific switches are unscrewed for effortless replacement or moved for a custom setup.
• Look in the 18MZ, while'll realize Futaba's commitment to reliability at every change, through the utilizing area mount technology to attenuate the outcomes of vibration to Ball Grid Array to pack essentially the most radio at all area.
• Jacks for S.Bus servo development, in-transmitter recharging as well as the earphone is available on right back panel for fast access and protection.
• The high-voltage R7008SB works together alongside Futaba telemetry sensors, including S.Bus and S.Bus2 servos. Both are plug toward R7008SB, without interface bins and decoders required by other systems.* Decoder needed if non-S.Bus servos are used.

Overview:

• Systems: 16 proportional, 2 switched
• Suitable for:
  • FASSTest, FASST and S-FHSS protocols
  • Futaba HV (High-Voltage) receivers
  • All Futaba telemetry sensors
• Free on the net pc software improvements
• 92MB interior memory
• Expandable model memory
• 32-character specific naming
• 32-character model naming
• Airplane, helicopter, glider and motor glider development
• 3 assignable rotary knobs
• 4 assignable slider switches (2/side)
• 5 assignable three-position switches
• 2 assignable two-position switches
• 1 assignable momentary two-position switch
• Dual, high-speed processors
• Earphone jack
• 0.3 megapixel camera
• Audio & movie players
• integrated microphone
• Development tools for S.Bus servos & gyros
• Easy Link ID touchscreen
• Comfortable plastic grips regarding edges and back
• Stick calibration, plus anxiety and angle corrections
• Quad bearing gimbals
• Quick model select
• Servo monitor (fundamental and going tests)
• 2 up/down timers
• integrated timer system
• Model timer
• 4 vibration warning alternatives (battery, condition, trim mix 1 & 2)
• Programmable trainer system
• Servo rate adjust
• Trim mix
• Programmable logic switches
• Consumer menu
• Sub-trim (240 actions; networks 1-16)
• Servo reversing (all systems)
• Fail-Safe (all networks)
• Battery fail-safe (all linear sites)
• Endpoint modification (all channels)
• Trim (adjustable action, price & mode)
• Journey conditions
• AFR
• AFR bend mode (6)
• AFR bend point volume (15)

Airplane programming features:

• 8 trip conditions
• 15 factory-programmed mixes
• Flap developing menu
• Differential ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Airbrake to elevon Mixing
• Rudder to ailevator blending
• Rudder to elevator blending
• Camber combining
• Elevator to camber blending
• Camber flap to elevator mixing
• Snap roll combining
• Airbrake mixing
• V-Tail mixing
• Motor blending
• Fuel mixture
• Multi-Engine mixing
• Gyro blending

R7008SB Receiver Features:

• Bi-directional interaction with a FASSTest Futaba transmitter using the S.Bus2 slot
• Multiple optional telemetry sensors might be connected to the S.Bus2 slot as well as the information exhibited regarding transmitter
• Includes both standard PWM manufacturing ports and S.Bus production ports
• External voltage slot, 0-70V DC
• The outside Voltage connector necessary for this can be:FUTM5551 CA-RVIN-700 EX VLT CBL

R7008SB Receiver Specs:

• Getting Frequency: 2.4GHz FASSTest system
• Energy Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
• Current drain: 75mA
• Exterior voltage Port: 0 - 70V DC
• Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
• Body fat: 0.38oz (10.9g)
• Antenna Length: 5-3/4"
