O.S. (#13641) - O.S. 21VG-X (P) w/21F autumn Carb .21 VG-PX OS Motor

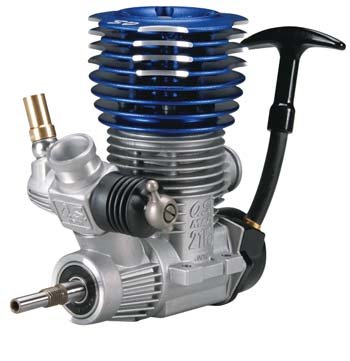

here is the O.S. Max .21 VG-P Pilot Shaft Sport Engine with Pull Starter.
Developed for 1/8 scale car utilize.
ROAR Legal.
QUALITIES: 1/4-28 pilot (SG) crankshaft for Centax type clutch Advanced Bi-Metallic Liner. This technique utilizes a double layer of plating item as opposed to one thick layer. It can help steel so that you can connect to cylinders and it is more powerful. Also, the plating procedure is more constant, finally causing an even more accurate fit between piston and sleeve for better compression, considerably longer life. Pull novice Two-needle 21F Slide Valve Carburetor One-piece 8-fin Tornado cylinder brain utilizes standard radiance plug back exhaust Two year limited guarantee
CONTAINS: O.S. Max .21 VG-P Pilot Shaft Sport engine with pull beginner, Slide Valve Carburetor, exhaust seal musical organization, #8 radiance plug and directions
NEEDS: gasoline: Nitro vehicle blend with 10-30percent nitro content as well as minimal 16percent lubricant Glow starter and track equipment
SPECS: Displacement: 0.211 cu in (3.46cc) Bore: 0.654" (16.6mm) Stroke: 0.63" (16.0mm) Practical RPM: 3,000 - 36,000 RPM energy manufacturing: 2.0 ps / 30,000 RPM bodyweight: 13.9oz (395g) Distance Between Mounting Holes identical part: 0.83" (21mm) Distance Between Mounting Holes Opposite Side: 1.4" (37mm) Height Bottom of Mounting Tabs/Top of Cylinder Head: 3.4" (87.4mm) Width of Mounting Tabs: 1.8" (45mm) Distance from Pull Starter to Front Bearing: 3.2" (82.5mm) Distance from Center of motor to Front Bearing: 1.7" (44mm) Distance from Center of motor to Pull Starter: 1.5" (38.5mm)
Some documents on slip Valve and Rotary Carburetors: Rotary carbs offer a larger response in the heart of the vitality band. This is certainly ideal for off road applications whenever throttle response must certanly be diverse. Slide Valve carbohydrates offer greater effect from the beginning and end from power musical business. This really is perfect for on-road and racing applications for quick take-offs and higher rate.
