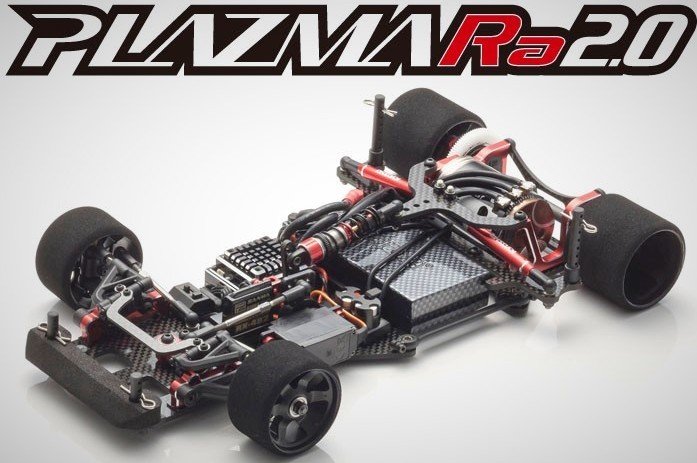

Kyosho 30423 - 1/12 PLAZMA Ra 2.0  [KY-30423]

1/12 Scale Electric Rc 2WD Racing Car PLAZMA Ra Series: PLAZMA Ra 2.0

Filled up with rushing technology developed through best degree!Drive the planet’s revolutionary production race unit!

A fresh competition scene is rolling out within the four years since the launch the PLASMA Ra in December 2011. It is now time for a brand new machine that embodies the amount each of the knowledge from constant racing competition. With all the current freedom adjust fully to various conditions, like free motion of the center surprise position to improve from high-grip areas to slippery circuits, which means choice of crank or direct steering systems, this groundbreaking machine includes probably the most higher level design features. The product and design of each carbon and red anodized aluminum component is meticulously developed to own optimal power and fat balance. The 2-stage finishing procedure linked to the red anodized aluminum components produces a feeling of pride in purchasing a machine with such an immaculate high-quality finish.

• Adaptable to any or all or any area sorts, complete performance potential is attainable on various competition circuits.
• Red anodized aluminum components with 2-stage finishing procedure gleam with top-quality engineering.
• Brand brand-new king-pin strut system on front suspension system system system. Slim and easy framework permits screw be used down outside for easier upkeep. Alignment of camber, caster and tread are modified.
• Rear suspension system with center pivot and rear part hyperlink retained because of its superior control of roll and pitching characteristics.
• Back center surprise with diaphragm keeps constant oil quantity and combines with friction pipeline that entirely controls roll option to produce superior working protection. Features accuracy device cut POM (white synthetic) shock piston and titanium coated spindle.
• Features worldwide standard size straight back axle. Thrust bearing included creates smooth diff function and metric size (4mm) diff nut provides improved versatility.
• Height is defined just by changing the axle mount.
• Grooves inside framework avoid fiberglass tape accustomed secure the battery pack from pressing the path area. O-ring battery power owner furthermore makes battery modifications effortless during training runs.
• Center destination for this engine provides optimal left/right weight security of back component. Design allows motor become moved 2.5mm towards the middle which means hefty fat of engine and ball diff item may be regularly optimize fat stability.
• Crank steering system provides excellent left/right stability. Optional steering meal permits free Ackerman setting. Crank product is supported by ball bearings at the top and base and may also be positioned in 3 various front-rear settings.
• 1/12 electric race car includes the planet’s innovative design technology.
• Interchangeable front suspension system system (except knuckle) knows upkeep effectiveness.
• Suitable for dependable JR and Futaba mini servos for 1/12 program. *Sanwa can be used with optional component.
• Verified performance of coil springs set up on both front part and right back sides. Many different springs could be found.
• Includes biggest global standard size tires (largest in its course).
• Uses metric (mm) size screws and peanuts. *Only screws for rear wheel and clamp hub (L) are ins size.
• Ball diff has an abundance of capability with big diameter diff band. Standard spur gear for DD vehicles can be utilized.

Kit Articles:

• Unassembled framework kit
• Decals
• Guide

Required for Process :

• 2ch, 1 mini servo R/C system for vehicles
• Brushless engine (540 course)
• ESC (80A minimum proposed) for brushless motor
• 1 mobile (3.7V) Li-Po battery power for 1/12 or 2 cellular (7.4V) Li-Po battery power for charger for framework
• Pinion gear (64 pitch 13-38T)
• Tires
• 1/12 rushing automobile body
• Tools
• Paint for body
• Batteries for R/C system

Other Features:

• Big roll shock features a revised roll piston and knows larger tread area and increased effectiveness of oil through device cut lateral grooves.
• Tall durability 7075-grade engine mount changed from two reduced fixing points to top & reduced fixing points including being thinned for lighter fat. Additionally, space manufactured in the center of your screws concerning the engine mount and reduced pad decreases anxiety under contact from hits.
• Modification of springtime tension are manufactured with no elimination of elements through a hole on reduced pad which allows a 2.0mm hex wrench usage of a 2mm hexagonal groove partly springtime owner.
• Stabilizer control is delivered through a carbon dinner linking the remaining & right suspension system obstructs.
• Urethane bumper included as standard. Body mount place relocated 10mm towards finally causing stop body overhang.
• Roll point between main framework and paid down pad relocated 2mm rearward to supply sharper switching performance.
• Aluminum antenna owner secures antenna and center surprise stay firmly. 6 center shock functions are opted for whenever employed in combination with optional elements.
• Five ride height adjusters included: 0mm; 1.5mm; 2.5mm; 2.75mm, and 3.0mm. Most often used settings from 2.5mm to 3.0mm are modified at 0.25mm increments. Nylon item provides superior effect opposition.
• Big diameter tires the Ra 2.0 could be the biggest in its class. Created from soft nylon.
• Excess ended up being symmetrically removed from the framework causing 20g lighter fat for pure racing performance.
• Front upper supply redesigned to a universal interchangeable kind become applied to both front & straight back, left & right sides, and less play. Lower suspension system system supply redesigned for lighter fat and effective flex.
• Complete ball bearing specifications (total 11). Crank additionally features two ball bearings.
• 92T spur gear included. Proven thrust bearing using 16 balls in addition included as standard.
• Engine mount repairing changed to top & repaid securement with 0.25mm lower mount than previous model. Made from high energy 7075-grade aluminum.
• Chassis height could be modified with carbon spacer. Loosen the screw on bulkhead and push from behind to proceed for easily framework height modification. Carbon spacers of assorted thicknesses can be acquired as choices.

Chassis Technical Data:

• Length: 281mm
• Width: (F/R) 164mm/166-170mm
• Height: 47mm
• Wheelbase: 200mm
• Tire(F/R): F41mm minimum / F41mm minimum
• Body fat: 730g approx. (JMRCA regulation)
• Engine: 540 course brushless motor (offered separately)
