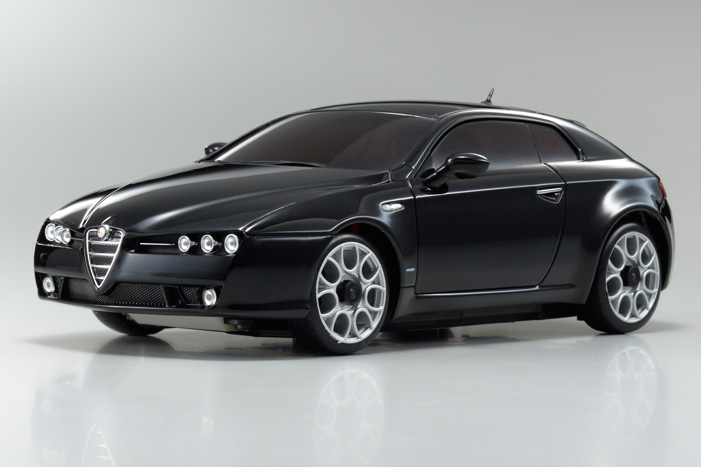

Kyosho 30568BK - 1/27 Alfa Brera Black  [30568BK]

Kyosho 30568BK - 1/27 Alfa Brera Black
Price:
£139.81
Brand:
Kyosho
Model:
30568BK
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"
alt="Kyosho 30568BK - 1/27 Alfa Brera Black" title="Kyosho 30568BK - 1/27 Alfa Brera Black"

Advanced technology and satisfaction condensed into Mini-Z size.
AWD and 4-wheel separate suspension system begin a fresh phase in Mini-Z history!

The desire for Kyosho to reproduce comparable effective and sort of a genuine AWD (all-wheel-drive) in Mini-Z size ended up being too much to resist. The high level design combines a shaft driven AWD with a precision 4-wheel separate suspension system system utilizing a king-pin and strut system in an ultra-compact framework. The addition of newly developed front and back differential products using top and pinion gears produces high effectiveness drive performance with comparable paid down levels of opposition towards present 2WD variation. Additionally, the addition for the AWD drive train barely increases the fat with this framework anyway, permitting the many benefits of AWD become recognized without downside. The last result is a robust framework with awesome maneuvering. The slim 65mm width linked to chassis additionally fits many the exquisite car systems your Mini-Z is well-known for. The style also allows individualized environment modifications particularly effortless toe angle improvements with optional parts. This AWD chassis presents a totally brand new dimension towards high-tech realm of micro competition.

  • Mid-ship engine mount to the shaft driven AWD creates perfect driving faculties.
  • King-pin strut system on 4-wheel split suspension system system understands high level working performance.
  • Fully develop framework includes pre-installed RA-12 receiver item with integrated ESC.
  • Precision universal move shafts are fitted on all axles. Produces uninhibited suspension system movement and transfer of drive power.
  • 3-bevel differential drives all tires and utilizes a higher and pinion with specially developed gear teeth.
  • Advanced precision technology is employed to produce the ultra-reliable differential unit.
  • One-touch tie-rods are just attached or expunged. Optional tie-rods enables you to adjust front and straight back toe angle settings.

  • Finished human body, finished with artwork and affixed with decals.
  • Resin-coated steel core about the universal move shafts create strong and reliable drive power.
  • Designed with 4 precision ball bearings for high-efficiency performance.
  • Includes four pinions and three spur gears for an extensive collection of gear ratio settings.
  • Chassis height modification collars enable framework become fallen down low.
  • Front end features bump end that regulates move and prevents tire reference to the body.
  • High-accuracy 1/100mm finish.
  • Differential item could be removed with only four screws regarding front part and six in straight back.
  • Features the managed drift of a real AWD machine.
  • Merely 5g thicker versus MR-02 chassis, inspite of the AWD and separate suspension system.
  • Employs the narrowest 65mm framework design and so the Mini-Z 01 / 015 body designs may be used.
  • Are simply just turned into the Mini-Z Racer M and L size to fit your present Mini-Z human body. (someone designs is typically not appropriate).

Chassis Technical information
Length
131.5mm
Width
65~70mm
Height
43mm
Ground Approval
4mm
Wheelbase
90mm(M), 94mm(L)
Tread (F/R)
56.5~59.5mm / 54.0~59.5mm
Tire(F/R)
Φ25x8.5mm / Φ25x8.5mm or 11mm
Gear Ratio
7.2/6.4/6.0/5.7/5.3/5.0/4.5 : 1
Fat
135g (approx.)
Engine
130-Class
