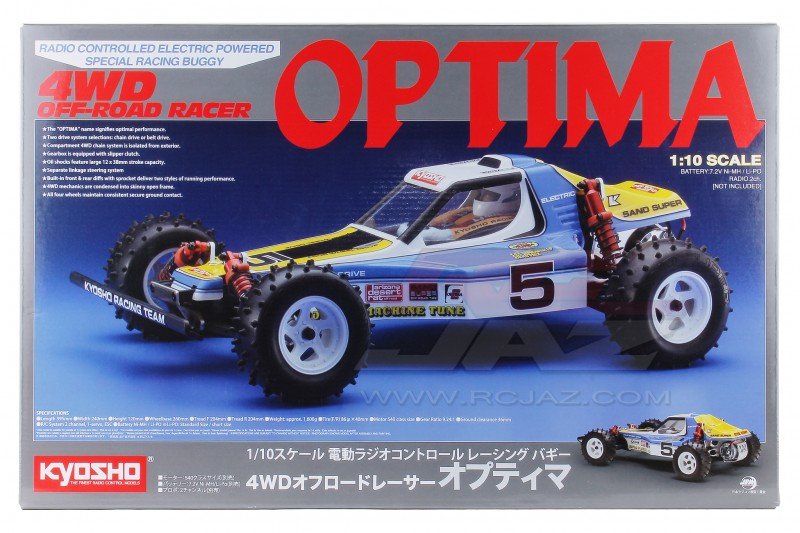

Kyosho 30617 - 1/10 Optima 4WD Off-Road Racer Kit Vintage Series Buggy  [KY30617]

The Vintage Series ,Return of Legend,the Optima 4WD Off-Road Racer 1/10th Scale broadcast Control electric 4WD rushing Buggy.

Speed has sort. The winning formula is …The 1st OPTIMA model happen heralded as a technical masterpiece at its launch in 1985 and from then, Kyosho has set the normal in R/C development. Memories associated with OPTIMA are fresh despite three years and its stylish type and ruthlessly efficient performance but resonate amongst modern racing devices. Now the most recent OPTIMA is able to continue the battle for rushing dominance, embodying the newest in technical development but using the distinctive OPTIMA design. The slim backbone shaped framework provides the platform for optimal geometry with big steering perspectives and double wishbone suspension system system with long 35mm suspension system move. Recreated inside image linked to initial design, the the 4WD series system is housed inside a sealed compartment and also the gears and gearbox through the entire center from drive train have robust metal countertop gear pinion and rear diff situation. The drive train additionally features a slipper clutch and accuracy 48-pitch gear modules that decrease drive loss and match the feasible of modern power sources. Modern features range from the range of string drive or gear drive additionally big bore shocks on front part and right back which were recreated into the initial OPTIMA colors, plus hex screws. As a genuine competition partner, the OPTIMA is preparing to battle once again due to the latest advancements in driving performance.

The Optima was built in line aided by the original variation released inside 80s. We've updated several areas but kept the elements appropriate for the original framework.

• The “OPTIMA” title signifies optimized performance. This famous off road racer is willing to win in almost every conditions.
• 4WD mechanics are condensed into a narrow open framework framework 6061T6 aluminum pubs (caunter sunk)
• Two drive system choices: string drive or gear drive.
• Gearbox fashioned with slipper clutch for transmission security and effective traction control.
• Accuracy 48-pitch gear modules. Sintered alloy gears along with high effect nylon gears and newly added slipper clutch. This durable design allows efficient power distribution and could deal with today's high power motors.
• Accuracy 48-pitch gear modules deliver paid down drive loss. Steel backside diff example and metal gears deliver exceptional durability.
• Glass blended nylon item found in rigid dual wishbone system suspension system.
• Strong impact-resistant resin bumper. Includes mini bumper suitable for race and big bumper for activities driving.
• Includes unique device for shock absorbers. Can be used as a 5, 5.5 and a 7mm wrench.

brand new features:

• Framework: All dishes even though the primary framework pubs are now 6061T6 aluminum(counter sunk).
• Aluminum framework bars are significantly thicker to get more durability.
• Drive-train: Kit includes both sequence and gear drive trains allowing usage of more powerful machines.
• Diff gears need ball bearings installed.
• Gears: Now in 48 pitch gears. Sintered alloy gears along with high effect nylon gears and newly added slipper clutch will cope with the current energy plants.
• Shocks: Brand new 10mm diameter aluminum cylinder with SUS shaft allows improved damping.
• Tires / Wheels: notably modified tread designs and fresh softer combination for superior hold and managing. Back tires consist of interior sponge. Unique 1 piece wheel design.
• 2 Forms of bumpers included(open and Narrow)
• Aluminum engine guard.
• Updated geometry.
• Hardware: All Hex
• Updated servo fixture.
• Driver: Molded helmet design.
• Option Components: we'll launch different option elements.
• Electronics compatibility: befitting the present standard servos, Receiver items, ESCs, machines and battery power packages.
• Packing: similar to the initial with blister pack showing several of the components included. Some components will more than likely become preassembled and elements will undoubtedly be bagged in actions after instructions for effortless set up.

Kit Articles:

• Pre-assembled kit (gearbox and oil shocks are pre-assembled)
• Clear polycarbonate body
• Decals
• L-shape hex wrench
• Cross wrench
• Shock wrench
• Shock oil
• Oil
• Threadlock glue

Needed for procedure:

• 2-channel R/C system (servo x 1, ESC x 1)
• 540 Size Motor
• 7.2V NiMH battery pack or 7.4V Li-PO battery pack pack
• Charger for motor battery pack (For DC: Regulated 12V power)
• Tools for human body artwork
• Batteries for transmitter
• Tools (phillips head screw driver big, small. Needle Nose Pliers, Scissors, Sharp Hobby Knife)

Chassis Technical Information

• Length: 395mm
• Width: 240mm
• Height: 120mm
• Ground Clearance: 36mm
• Wheelbase: 260mm
• Tread (F/R): 204mm / 204mm
• Tire(F/R): 86f x 40mm / 86f x 40mm
• Gear Ratio: 9.24:1
• Weight: approx. 1,600g
• Engine: 540 program size
• Battery: Ni-MH / Li-PO ,Li-PO: Standard Size / fast size
• R/C System: 2 channel, 1-servo, ESC
