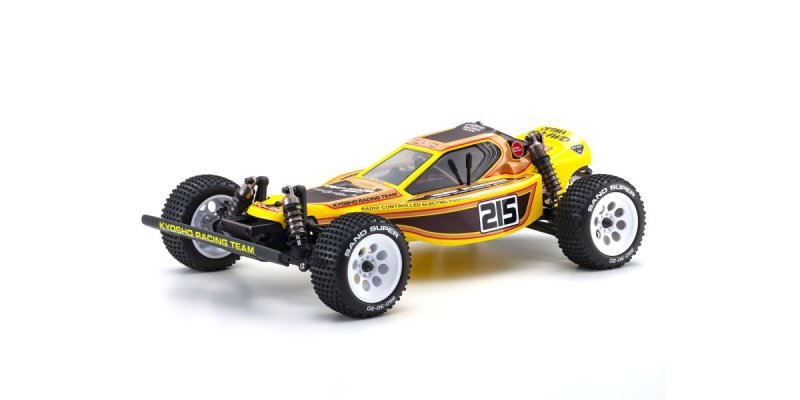

●Reproduction of popular rear-motor 4WD buggy is improved because of the most sophisticated technology to get rid of up being the 15th style of the Kyosho Vintage show.
●Stylish and aerodynamic human anatomy and underbody faithfully capture the looks and nature the very first.
●Cut lines for connecting the Javelin wing are molded towards the human body.
●Belt-type 4WD system produces exceptional drive effectiveness and reliability. Are changed to chain-drive by switching to (OT226) series (offered independently).
●Uses current standard 48-pitch pinion & spur gear, dissimilar to the 1st.
●Equipped with a slipper clutch to support high production engines and steer clear of gear damage.
●Molded resin radio dish recreates the type of the original.
●Battery is guaranteed in full utilizing a hook-and-loop fastener which is perfect for contemporary battery power sizes.
●Drive system includes ball bearings throughout.
●Hex screws deliver enhanced effectiveness and look.
●Compatible with various optional elements the Vintage Series.
●Each component is compatible as a result of initial model and free components from initial model doubles.
TECHNICAL INFORMATION
- Length 395mm
- Width 244mm
- Height 120mm
- Wheelbase 260mm
- Tread(F/R) 208mm
- Weight approx 1600g(with 7.2V4000 LiPo)
- Tires(F/R) 82x36mm
- Motor 540 course size (offered separately)
- Gear ratio 9.24: 1
KIT CONTENT
- Chassis
- Tire
- Wheel
- Clear human body & underbody
- Decals
- Hexagon wrench
- Cross wrench
- Shock wrench
- Grease
- Shock oil
- Thread locker
REQUIREMENT TO DO
- 2 channel R/C system
- Servo
- servo size: L41xW20xH38mm
- Recommended: No.82274KS4031-06W or No.82273KS5031-09MW
- 540 Motor
- Recommended: LE MANS 240 GOLD Brushless engine 13.5T No.37034
- ESC
- ESC size: L40xW42xH29.5mm
- Recommended: No.37051BLE MANS 240S ESC
- Battery for chassis
- Battery size: L140xW50xH25mm
- Recommended: No.GAB4202Gens ace LiPo 4000 straight pack(60c/7.4V)
- Batteries for transmitter
- Charger for battery
- Paint for body
- Regulated power supply
