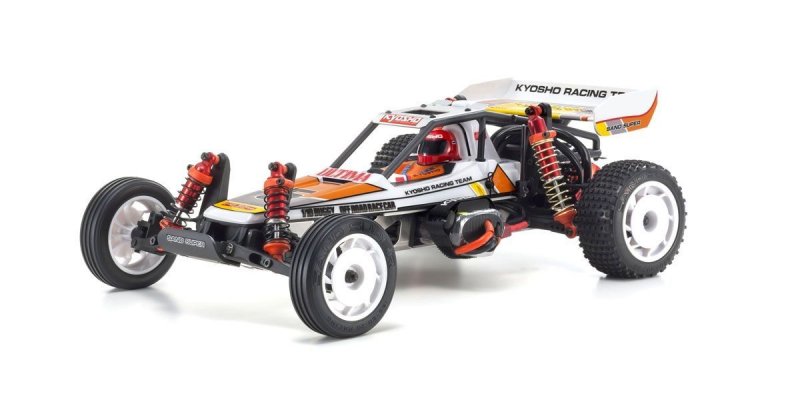

Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy [KY30625]

Price:

£219.48

Brand:

Kyosho

Model:

KY30625

GTIN:

4548565369539

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

alt="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy" title="Kyosho 30625 - 1/10 Ultima EP 2WD Off-Road Racer Buggy"

Description

The end result the ULTIMA’s dominantTQ & 1-2-3 finish on 2WD program at second Electric Off course World Championship in England in 1987 finished up being sensed through the RC vehicle scene. Now Kyosho’s famous ULTIMA turns straight back the clock having its return although the 8th model inside Kyosho Vintage Series! Now Kyosho’s famous ULTIMA turns back the clock featuring its return because 8th model inside the Kyosho Vintage Series!
First circulated in 1986, the 2WD ULTIMA channeled rushing technology through OPTIMA into an electric race buggy whirlwind that swept across the world. Good Vintage Series, the 2019 ULTIMA variation is marketing in design and build to meet up with performance criteria for contemporary R/C race circuits and power sources. As an example, the monocoque framework is composed of aircraft grade A60601T6 aluminum alloy and multi-pin block pattern back tires deliver maximised performance on modern off road songs. Complete ball bearing specs reduce drive loss and complement high-durability sintered alloy metal gears, slipper clutch and motor guard to shield the drive system while crash-resistant resin back wing are included.
Relive the nostalgia with this specific ULTIMA’s glory using the 2019 variation with progressed into a modern-day competition device that permits one to drive like some sort of champ.

ULTIMA is faithfully recreated, with component improvements for compatibility with modern power sources.

Polycarbonate human anatomy with motorist cockpit recreates the style and environment for the initial ULTIMA.

Full ball bearing specs (14)

Equipped with battery pack guard that stops battery pack fast circuit during a collision.

A monocoque framework created from tempered A6061T6 pressed clear anodized aluminum alloy useful for aircraft make combines with a glass strengthened resin top deck to produce light-weight and durability for difficult driving. The battery pack stay works and battery power sorts and utilizes a hook & period fastener (includes battery band printed with KYOSHO logo design) for effortless battery mounting.

Front and back double wishbone suspension system adopts the proven OPTIMA design. Similar front-rear geometry assures handling protection anyhow speed ranges. Impact-resistant nylon paid down supply combines with metal pole upper arm to enable camber modification. Upgrade with optional titanium adjust pole 38mm (No.92413) for both front part and rear.

The same big ability 12mm diameter oil shocks simply because OPTIMA deliver superior operating stability over uneven areas. Long type nylon resin molded surprise tower allows tuning for modern RC battle circuits. Upgrade with optional silver shocks OTW128 (F) and OTW129 (R).

Optimized geometry with aluminum steering website link and metal bushings aided by the servo saver including aluminum pipeline and metal springtime design within present race buggies, provides stable and precise steering feel. Upgrade with optional ball bearings and titanium adjust rod 50mm (No.92416).

Toe angle settings within the rear hub organizations are set to 1.0°, 2.0°, 2.5°by changing resin bushings. Detailed settings might be adjusted good specific rushing conditions.

Gear module have been changed to 48-pitch through the original model’s 8-pitch to provide paid down drive loss. In addition to the newly created 46 nylon 57T first gear, most of the gears are upgraded towards the sintered steel gears from OPTIMA. Upgrade with optional diff OTW101 to improve driving feel.

Gearbox has slipper clutch to shield the gearbox and drive system from unforeseen load customizations such as for instance jump landings. An easy task to modify and adaptable to various race conditions. Upgrade with optional slipper pad (SCW021 HD) for compatibility with higher power and hard driving.

Included motor guard (had been simply available as optional enhance concerning the original ULTIMA) is manufactured from A6061T6 product and offers increased durability. Resin wing mount provides selection of 2 height settings and angle might set between 3 ° - 6 ° with shims. Formerly produced from polycarbonate, the resin wing delivers enhanced crash opposition. And white, there are 5 color options to include extra design to your unit.

Rear tires work optimized multi-pin pattern to produce stable hold on numerous areas including been recreated within the image regarding the initial difficult block tires. Upgrade with optional OTT244S (smooth) and OTT244H (hard) tires. Tall rigidity one-piece tires exchange the 50mm three-piece tires using this initial Ultima. Along with white, you can find 3 color alternatives to choose from.

TECHNICAL INFORMATION

Length: 370mm
Width: 244mm
Height: 106mm
Wheelbase: 260-263mm
Tread (F/R): 206mm / 208mm
Tire(F/R): 75f x 20mm / 82f x 36mm
Gear Ratio: 8.64:1
Weight: approx. 1,500g
motor: 540 program size

KIT CONTENT

Pre-assembled kit
Polycarbonate clear body
Decals
Chassis parts
Cross wrench
Shock wrench
Grease

REQUIREMENT TO EXECUTE

2ch 1 servo R/C system for cars
540 program motor
ESC perfect for motor used
Battery for framework suitable for ESC used
Battery charger
Paint for polycarbonate body
Batteries for transmitter
