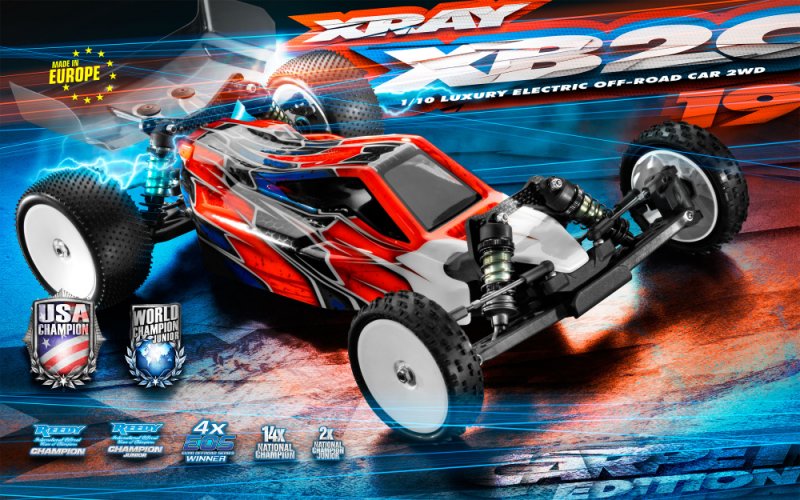

XRAY 320006 XB2C 2019 Specs - 2WD 1/10 Electric Off-road Car - Carpet Edition  [XR-320006]

XRAY XB2C '19

1/10 LUXURY OFF-ROAD vehicle 2WD

General

• Brand brand new, from ground up 2WD 1/10 electric race buggy
• Uni-Platform concept: Carpet Edition and Dirt Edition
• Full compatibility and interchangeable parts
• Designed for greatest performance anyway examples of racing
• Engineered with give attention to smallest details
• Manufactured with famous imaginative craftsmanship from premium European materials
• EFRA, ROAR, FEMCA spec compliant
• Super very easy to build, set up, keep, and drive
• Developed, designed, and styled by European Champion Martin Bayer and Dipl. Eng. Juraj Hudy, produced solely by XRAY in Europe worldwide's numerous higher level RC production facility
• Setting the latest standard for premium quality, reliability and performance
• Premium XRAY solution & assistance

Uni-Platform Concept

• Uni-Platform concept two editions: Carpet Edition and Dirt Edition
• Single platform, two editions for various traction conditions
• Full compatibility and interchangeable elements

 Carpet Edition:  designed for medium to very-high traction conditions

• Gear Differential
• Mid-Motor Gear Box
• Mid-Motor Plate
• Graphite Front & right back Shock Towers
• Rear Roll Center Holder
• Motor Upper Brace
• Battery Strap
• Medium and tough Composite elements

• Dirt Edition:  made for very-low, low, moderate, and medium-high traction conditions
  • Ball Differential
  • Mid Gear Box for 3 Gears
  • Mid & back engine Plate
  • Composite Front & back Shock Towers
  • Rear Roll Center Holder
  • Motor Upper Brace
  • Battery Strap
  • Gear cover
  • Medium Composite elements

Chassis

• Optimal framework fat blood supply & stability, particular to Carpet Edition or Dirt Edition
• Carpet Edition Gear Box and motor meal specially built to install the motor in middle spot with top shaft place lower
• Dirt Edition Gear Box and engine Plate specifically designed to set up the engine in either center place or back place, with top shaft placed greater. Gear package may be beautifully made with either a 3- or 4-gear setup, allowing modification connected with motor orientation from left to right component in either mid or right back roles.
• distinctive XRAY Multi-Flex technology for effortless framework flex adjustment
• Swiss 7075 T6 hardcoated aluminum framework: lightweight, strong, rigid
• Electronics design enables going the batteries frontwards/rearwards, furthermore using standard or mid-size servos and either utilizing seat pack or quick pack batteries
• Composite component guards are a straightforward bit of the XB2 Multi-Flex system
• Custom-designed front side reduced framework brace, obtainable in moderate and difficult hardness for several track conditions
• Front security bumper
• Custom-designed top deck, obtainable in medium and difficult hardness for several track conditions
• Swiss 7075 T6 aluminum engine meal, particular to Carpet Edition (mid-motor) or Dirt Edition (mid- or rear-motor)
• Battery band with foam spacer, certain to Carpet Edition or Dirt Edition
• Lightweight, strong surprise towers with many shock mounting functions, particular to Carpet Edition (graphite) or Dirt Edition (composite)
• Pre-drilled framework holes for extra loads for maximum vehicle balancing; centerline holes are pre-drilled for effortless balancing utilising the HUDY Chassis Balancing Tool #107880

Drivetrain & Differentials:

• Conventional gear-driven 2WD off road car
• Unique gear package, specific to Carpet Edition or Dirt Edition
  • Carpet Edition Gear Box and motor Plate with lowered top shaft, forward-shifted motor for improved steering and handling on higher-traction surfaces
  • Dirt Edition Gear Box with raised top shaft, motor positioning nearer to differential for enhanced straight back hold in lower-traction conditions
• Included right back differential is definite to Carpet Edition (gear differential with adjustable oil viscosity, 53T gear & inside satellite gears) or Dirt Edition (externally-adjustable ball differential with top-notch carbide thrustbearing and carbide balls)
• 25T graphite composite idler gear is for certain to Dirt Edition & 36T gear to Carpet Edition
• 20T super-lightweight Swiss 7075 T6 hardcoated aluminum top shaft
• Robust slip-adjustable clutch with 81T main spur gear molded from exclusive key combination of composite material
• 3-pad slipper clutch with ultra-efficient SLS item to obtain more efficient & exact slide modification, and HUDY Spring Steel™ hardened outdrives for extra lifespan and reliability
• Constant velocity drives (CVD) are produced from unique HUDY Spring metal for paid off fat and increased durability
• Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 not forgetting black-coated have actually ultra-true hex clamping design which guarantees solid mounting associated with the wheel
• Full group of 24 high-speed, blue-sealed ball-bearings may be used through drivetrain to make sure maximum effectiveness, degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and endurance

Suspension

• Integrated Suspension Settings (I.S.S.) for fast & easy suspension system geometry developing making use of eccentric bushings placed into Swiss 7075 T6 aluminum suspension system system holders
• Specially-designed suspension system system elements made from cautiously developed customized composite mixtures to make certain appropriate flex and durability
• Race-perfected suspension system system geometry for superior performance and freedom in almost every competition conditions.
• Suspension elements: fingers, steering obstructs, caster obstructs and uprights comes in moderate and hard hardness for many track conditions
• Lower composite supply mount with built-in 26° kick-up angle; optional aluminum and steel supply mounts available
• Lightweight, rigid caster obstructs can do various basic caster angles making use of included caster bushings
• Tiny yet tough steering obstructs composed of composite steering obstructs + graphite Ackermann extensions
• Adjustable weight stability & wheelbase via included shims on exterior suspension pins
• Compact backside uprights with 0° toe and 6 different top roll center positions
• HUDY Spring steel item for turnbuckles (featuring a tougher core) may be used for front & rear upright linkages, and steering system.
• Optionally available straight back anti-roll club set to support a large part for the car; easily modified via linkages; laser-engraved markings for effortless recognition, easily obtainable in various sizes for fine-tuning

Steering

• Simple yet effective dual-arm steering system
• Fully bearing-equipped with 8 high-speed ball-bearings for actually precise steering
• Easily-adjustable Ackermann by quickly changing the steering website link mounting jobs regarding steering plate
• Bump guide modification for more aggression
• Ackermann modification via included shims or making use of various graphite expansion dishes on steering obstructs

Shocks

• constant, dependable, membrane-free shocks with bleed-screw surprise limit design function up-stop & downstop modification via shims (under shock collar, and under pistons, correspondingly)
• Swiss 7075 T6 aluminum shock numbers, reduced nut & bleeder shock caps
• Super-precise molded Delrin™ pistons can be acquired with various holes & diameters for exact surprise modification; for customized modification, some blank pistons (no holes) will also be included
• Shock rods are machined from a certain steel material, precision hand-ground for maximum smooth operation and additionally hardened for increased lifespan
• Premium shock springs created especially to test the XB2 shocks; by hand determined, selected and matched into pairs to ensure equal length and damping characteristics; laser etched for easy identification
• Full distinct linear -or- progressive shock springs available
• Premium silicone oils laboratory tested and calibrated to be sure optimum determination and quality

Body, Wings, Wheels:

• High-downforce, low-profile aerodynamic Lexan™ human anatomy built to completely fit the XB2, flat cockpit & body edges to direct airflow for improved component safety, and rooftop flow channels
• Tough composite component guards work double-sided Velcro™ tape to seal your body entirely towards framework and seal against dirt.
• Optional available ultra-lightweight human anatomy for very-high-traction tracks conditions
• Stylish, effective Lexan backside wing made to work perfectly due to the XRAY XB2 body, supported on wing mounts by extra flat shims to elevated assistance and expand the life span regarding the wing. Suggested thicker 1.5mm (#323511) back wing for greater traction & stability
• Lexan front part wing yields front downforce, mounted totally on front side surprise tower
• Specially designed 12mm hex hub tires for high-competition racing; featuring reinforcement ribs to eliminate deformation and molded from really versatile product to retain kind despite having effects

Assembly, Set-up & assist:

• Premium 3D full-color guidelines & supplementary sheets
• To totally understand the set-up opportunities we recommend the most popular HUDY Set-up Book which is full of over 40 pages of high-quality pictures and easy-to-read RC automobile set-up explanations
• Exclusive Virtual on line Setup Sheet database with a wide array of set-up sheets for battle tracks over the world
• Premium, unmatched XRAY online support

Adjustment Possibilities:

• Fully-adjustable front side and back suspension system system geometry: caster, camber, back toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, Multi-Flex
• Adjustable rear differential action
• Adjustable slipper clutch
• Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear top links)
• several top & paid off shock mounting locations at front & rear
• Adjustable Ackermann and bumpsteer
• Optional adjustable rear anti-roll bar
• Chassis pre-drilled holes for fat stability modification
