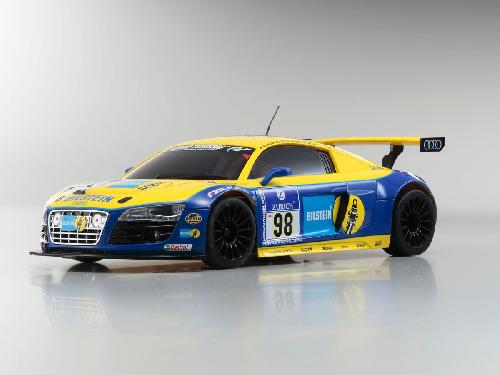

Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set  [32153BT]

Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set
Price:
£194.63
Brand:
Kyosho
Model:
32153BT
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"
alt="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set" title="Kyosho 32153BT - MA-020 ASF BCS Audi R8 LMS Phoenix Racing NBR 2010 #98 Body/Chassis ASF 2.4Ghz Set"

Fashioned with MR-03 front suspension system alongside DWS!
Evolutionary jump in MA-020 framework design understands a fresh level of MINI-Z AWD performance.

The higher level design with this Mini-Z AWD includes four wheel separate suspension system and a shaft driven 4WD featuring accuracy differential gears on front side and straight back handled by the pre-installed ASF 2.4GHz item, and it is tiny sufficient to suit regarding palm of your respective hand! The one-piece RA-23T receiver-amp product features a Chase Mode that turbo-boosts the excitement of R/C race. Whenever combined with a compatible 3-channel transmitter (provided separately), the Chase Mode acts as an electric limiter to restrict manufacturing to 70per cent of complete throttle. But once the possibility pops up, push another key and production is instantaneously risen to 100percent for a 3-second rush of price. Motivated by the boost activate full-size formula rushing machines, this brand new function notably escalates the strength of rushing action! Restricting probably the most price actually permits better driving lines and supports easier control, however when the overtake key is forced, the apparatus surges ahead like a tiger in attack! Nonetheless thoughts is broken in-front, you become the hunted. The lead can transform sometimes during a race with much more overtaking, including greater excitement towards sporting battles. Furthermore, the Chase mode is set so the overtake switch can merely be used a particular quantity of times per device (optional No.82080/I.C.S. USB adapter and computer are required). This enables that you apply a handicapping system by limiting how many rate bursts each car could use, allowing novices to compete on an even more also footing with additional experienced motorists. Demonstrably, the ASF 2.4GHz 2-channel transmitter the MINI-Z Racer can be employed plus the optional gyro is set up into the top target. As it evaluates the operating place linked to the model it immediately corrects the steering and throttle for smoother control which makes it easier to run a car, particularly for newbies and drift motorists. As this set is packed without transmitter, it truly is ideal for current owners of an ASF 2.4GHz MINI-Z Racer, making this affordable as an additional along with 3rd model. The more expensive level AWD chassis whilst the blistering acceleration from Chase Mode create exceedingly addicting quantities of excitement and battle action.

  • Revised front suspension system system system. 020 framework takes an evolutionary action with DWS installed on straight back as standard.
  • Incorporates the proven front side suspension system system system linked to MR-03. Keeps exemplary controllability, despite having improvement in tread. Also laden up with VCS.
  • Features down stop unit, ball hyperlink suspension system shaft and friction surprise with damping force modified by oil as standard.
  • Features 2.4GHz RA-23T circuit board that needs no regularity musical organization selection. Overtake intent behind Chase Mode appears temperature in racing.
  • Optional gyro product could be set up. Detects running position changes and instantly corrects with steering and throttle.
  • Install the optional scramble flasher that flashes to aim whenever overtake mode is triggered, lights up with regards to’s wanted to utilize and fades just in case it is unavailable.

  • MA-020 chassis is rolling out to a different location level with revitalised suspension system system system.
  • MINI-Z Racer MR-03 front suspension system system system framework included.
  • Back double wishbone suspension system (DWS) installed.
  • ASF2.4GHz R/C system removes must manage frequency bands. **Transmitter sold individually.
  • Up to 40 automobiles could possibly be run at precisely the same time.
  • Ultra fast sign processing price leads to nearly instantaneous control response.
  • Shipped in standard setup. Might be changed to Chase Mode.
  • Other setting alterations is adjsuted utilising the I.C.S. USB adapter (provided individually).
  • Light-emitting Diode indicator programs energy status.
  • AWD device provides free control of position for smooth drift control.
  • Using the narrowest 65mm framework design, most MINI-Z 01/015 body designs are set up.
  • constructed with four ball bearings as standard.
  • Zero point specification with factory-set steering neutral provides superior right running.
  • Control timing of reverse might be modified.
  • Optional long period straight back suspension system supply (upper, paid off) may be put up.

< Chassis Set Contents >

  • Factory assembled framework with R/C unit set up
  • Pinion gear (15T, 17T, 19T, 21T)
  • Spur gear for wheelbases: 27T, 29T, 31T each for M, for L, for LL
  • Components for changing wheelbase
  • Components set for changing tread
  • Back suspension system spacers for framework height adjustment
  • Pinion gear tool
  • Free nut
  • Wheel wrench
  • Pairing stick

< needed for process >

  • Vehicle Scale Collection individuals body
  • 3-channel transmitter for MINI-Z ideal for ASF 2.4GHz or Perfex KT-18 transmitter (unless you utilizing the Chase mode)
  • AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
  • Batteries for transmitter
  • I.C.S. USB adapter (No.82080) to help make utilization of I.C.S. functions and Chase Mode modification.
  • *Note: Overtake function may utilize R246 2.4GHz module adapter it's perhaps not assured with transmitters besides Kyosho or KO 3-channel transmitters. Also, the 2-channel KT-18 transmitter can be used without Chase Mode.

Chassis Technical Information
Length
127.5(M)-135.5mm(L)
Width
65-72mm
Height
43mm
Wheelbase
90(M)-98(LL)mm
Tread (F/R)
56.5-63.5mm / 56.5-61mm
Tire(F/R)
Φ25.0 x 8.5 mm / Φ25.0 x 11 mm
Gear Ratio
7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
Fat
120g (approx.)
Motor
130-class engine
