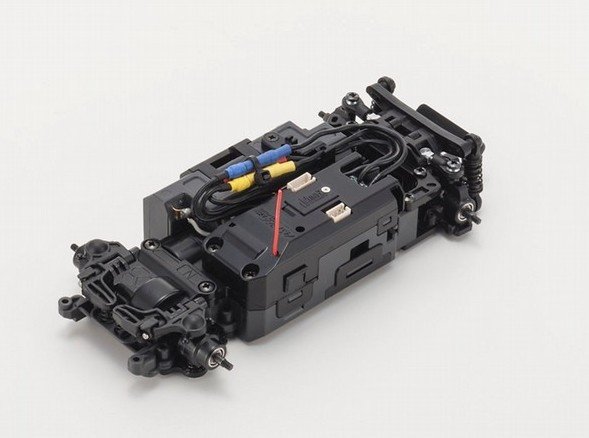

The newest MINI-Z AWD framework evolves to the PRO program!

Brushless engine power and AWD originated the MA-020VE recently and it is evolving with a brand new higher rate RC device installed. Aided by the technical the various areas of first MA-020VE create, the newest variation features comparable MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system put on the MR-03VE professional. The blend of brushless engine power and AWD aided by the quickest control impact available makes this revolutionary product the most effective spec in its show. The MHS 2.4GHz system was designed to be utilized aided by the latest high-end SYNCRO EX-6 transmitter (offered independently) and offers impact 16 times faster when compared with ASF 2.4GHz system and KT18 transmitter combination, and 4 times quicker compared to the KO EX-1. With faster processing speed and superior servo keeping power, you will locate lines through corners like never before. Linear control feel and the unique AWD traction performance give you the ultimate side in battle competition. Whilst the framework matches the MR-03VE PRO, it's suited to today's ASF 2.4GHz system so owners of KT-18 and KO PROPO EX-1 transmitters can instantly setup during pairing.

  • The much-anticipated MA-020 framework set installed with brushless motor has turned up. Shaft drive AWD produces a development in driving performance.
  • 8500kV XSPEED VE brushless engine that provides drive capability to any or all four tires may be the perfect match the AWD framework.
  • Newly created receiver target features area the optional gyro to be effectively bolted on and eliminated.
  • DWS features downstop unit, ball-connected system on suspension system system shafts and friction damper that use oil to modify quantity of damping force.
  • VCS optimizes camber in accordance with suspension system system system stroke to provide sure-footed traction and grip.
  • Brushless motor create on AW-020 framework as standard function.
  • Incorporates the ‘VCS’ front suspension system system from MR-03.
  • Features back double wishbone suspension system system (DWS).
  • Comprehensive ball bearing requirements contain 14 ball bearings.
  • Designed with top cover appropriate starting the optional gyro.
  • ASF2.4GHz R/C system eliminates need certainly to handle regularity bands. *Transmitter offered individually.
  • Up to 40 cars might be run at precisely the same time.
  • Ultra quick indication processing price contributes to almost instantaneous control reaction.
  • Shipped pre-assembled in slim tread and M size wheelbase setup.
  • Includes components for changing to wide tread and elements for changing to L and LL wheelbases.
  • Other establishing changes might be made utilizing I.C.S. USB adapter (sold individually).
  • Using the narrowest 65mm chassis design, numerous MINI-Z 01/015 human body designs are set up.
  • Factory set steering with zero point requirements.
  • Control timing of reverse is adjusted.

Chassis Set Articles:


  • Factory assembled framework with R/C product set up
  • Pinion gears (15T, 17T, 19T, 21T)
  • Spur gears for wheelbases: 27T, 29T, 31T for M, L, and LL correspondingly
  • Parts for changing wheelbase
  • Parts set for changing front tread
  • Pinion gear device
  • Spare peanuts
  • Wheel wrench

Necessary for procedure:


  • ASF 2.4GHz KT-18 transmitter or MHS 2.4GHz EX-6 transmitter
  • Car Scale Collection (human body set, tires, tires)
  • 4 x AAA alkaline batteries or 4 x Ni-MH for framework
  • 4 x AAA alkaline batteries for transmitter

Chassis Technical Suggestions:


  • Length: 126mm
  • Width: 65mm
  • Height: 28.5mm
  • Wheelbase: 90(M)-98(LL)mm
  • Tread (F/R): 65-76mm/65-76mm
  • Tire(F/R): F25 x 8.5mm/F25 x 11mm(offered separately)
  • Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
  • Body fat: 130g (approx.)
  • Engine: 8500kV XSPEED VE Brushless
