The separable receiver design pioneered regarding MR-03EVO happens to be available with all the new AWD model MA-030EVO, in line with the FWD MA-03F framework. The MINI-Z was at very first beautifully created using a receiver, servo and rate controller, within the MR-030EVO the receiver ended up being created to be bought and place up as a separate product to allow the model to be used with other makes of transmitter such as for example KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), Flysky (Noble NB4). Besides, top AWD show spec MA-020VE PRO included a 3-stage steering servo unit, though the completely new MA-030EVO includes the additionally greater spec 5-stage gear kind from MR-03. In addition, a unique CPU for servo control improves the control speed of positioning feedback and the updated control system provides top steering feel of any AWD model through improved responsiveness and linear a reaction to motorist control. The one-piece heatsink and aluminum situation about the KYOSHO SPEED RESIDENCE XSPEED 85 (8500KV) brushless engine keeps it cool for maximised performance. The I.C.S. manager permits precision environment changes plus the switch to a brushed engine, that was impossible with past framework sets. Switch between drift and hold driving designs to begin to see the best in AWD driving performance.
MA-030 AWD framework is founded on MINI-Z FWD MA-03F chassis.Chassis set is sold with split ESC and receiver unit.Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500).I.C.S manager enables precise setting control making usage of of either brushless or brushed motor.Independent CPU control with an increase of processing price provides a lot more accurate control.Full ball bearing needs decreases drive loss.Includes back twin wishbone suspension.Compatible with L（94mm） and LL（98mm） wheelbases. Just LL（98mm） works extremely well with right back dual wishbone suspension system set. Befitting MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set the different MR-03F framework models
TECHNICAL INFORMATION
*Scale: 1/27.6
*Length: 126.0mm
*Width: 65.0 - 76.0mm (adjustable by wheel offset)
*Height: 36.0mm
*Chassis Type: MA-030
*Wheelbase: 94.0mm (only with strut rear suspension system system put up), 98.0mm (factory put together)
*Weight: 135g
*Brushless 8500KV
*Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
*Tire Diameter (F/R): provided separately
*Tire Width (F): offered independently
*Tire Width (R): sold individually
*Transmitter: maybe not included
*Top rate: approx. 17km/h
*Runtime: approx. 50min.
KIT CONTENTS
CHASSIS SET ARTICLES

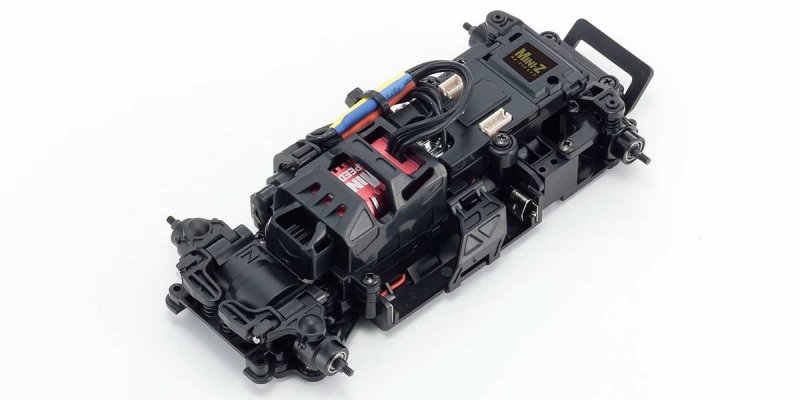

*Factory-assembled chassis packed with EVO main product installed
*Pinion Gears (15T, 17T, 19T, 21T)
*DWS transformation components *Front tread change components
*Pinion gear therapy device
*Spare wheel peanuts
*Wheel wrench
*Center shaft for L wheelbase
*Wide back suspension system fingers for DWS
*swing shafts (4 x long)
*Spur gears (27T, 29T, 31T)
NECESSARY FOR OPERATION
REQUIRED FOR PROCEDURE
*8 x AAA batteries
*Auto Scale Collection (human body, wheels and tires)
*Transmitter
*MINI-Z EVO receiver device worthy of the transmitter used
