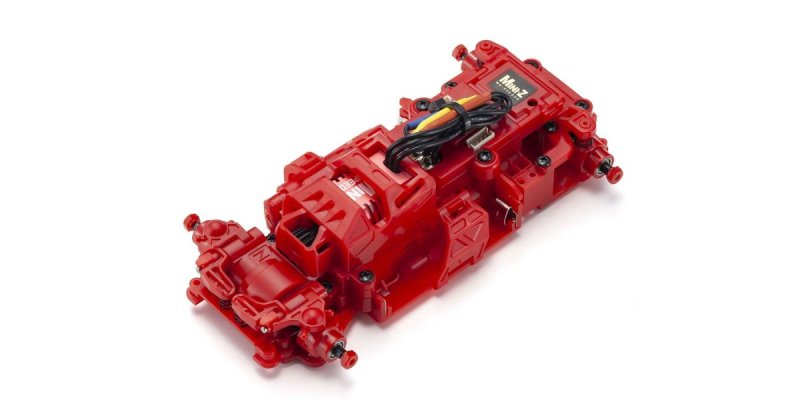

The MA-030EVO Red Limited equips with unique red color parts through the complete framework! The MINI-Z finished up being initially beautifully made out of a receiver, servo and speed controller, nonetheless regarding MR-030EVO the receiver have been created to be bought and create as a different sort of kind of product to allow the model to be used along with other makes of transmitter like KYOSHO (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO PROPO (EX-2/EX-RR/EX-NEXT), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). Additionally, the MA-030EVO is set up with an increased spec 5-stage gear kind servo. Furthermore, a unique CPU for servo control improves the control price of positioning feedback plus the updated control system provides top steering feel ever through enhanced responsiveness and linear response to motorist control. The one-piece heatsink and aluminum situation regarding KYOSHO SPEED HOME XSPEED 85 (8500KV) brushless motor keeps it cool for optimized performance. The I.C.S. supervisor allows precision environment alterations including a brushed engine compatibility function. Switch between drift and hold driving designs to have the best in AWD driving performance.
●MA-030 AWD framework will depend on MINI-Z FWD MA-03F framework.
●Chassis set includes separate ESC and receiver device.
●Includes KYOSHO SPEED ABODE 85 brushless engine (KV8500).
●I.C.S supervisor enables precise setting control making usage of of either brushless or brushed engine.
●Independent CPU control with additional processing rate provides more precise control.
●Full ball bearing requirements decreases drive loss.
●Includes back increase wishbone suspension system system.
●Compatible with L（94mm） and LL（98mm） wheelbases. Simply LL（98mm） can be employed with straight back dual wishbone suspension system system set.
●Compatible with MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set Red Limited ?Limited variation? the many MR-03F framework models
＜Mountable human body＞
・MAZDA DEMIO XD Touring (MZP442)
・Toyota PRIUS PHV (MZP443)
・RENAULT MEGANE R.S. (MZP441)
・Honda CIVIC Type R (MZP445)
・SUBARU WRX STI (MZP440)
・NISSAN GT-R R35 (MZP417)
・NISSAN SKYLINE GT-R NISMO R32 (MZP437)
・NISSAN SKYLINE GT-R R34(MZP427）
・MITSUBISHI LANCER DEVELOPING X (MZP439)
・Audi R8 LMS(MZP444)
You'll be able to change the after wheels
・McLaren 12C GT3(MZP226)
・Lamborghini Murcielago LP670-4SV (MZP215)
・McLaren F1 GTR (MZP237) ※DWS perhaps not possible
・Audi R8 LMS 2015/2016 (MZP234)
・Honda NSX(MZP233)
・McLaren P1 GTR (MZP235) ※DWS maybe not possible
・McLaren F1 GTR (MZP232) ※DWS impossible
AWD MA-030 framework is founded on the FWD MINI-Z MA-03F framework. Front midship design of motor creates superior lateral and vertical fat blood circulation to understand exemplary maneuvering.
Get rid of the top address associated with the receiver combined with the framework to put together the receiver products befitting KYOSHO, KO, FUTABA and Flysky transmitters.
Featuring superior VCS front suspension system used from previous models. Settings are modified with using any tools by simply changing coil springs.
Straight back suspension system system gets the same strut unit whilst the MA-03F framework (standard environment at time of distribution). Not just is upkeep simple, settings might be changed with toe control rods and camber knuckles based on conditions.
Precision back enhance wishbone suspension system system set permits establishing improvements through toe angle modification. Can be utilized rather than normal strut kind suspension system system based on requirements.
*Only LL size wheelbase can be utilized with back dual wishbone suspension set.
KYOSHO SPEED RESIDENCE brushless motor XSPEED 85 (8500KV) features a one-piece aluminum example that understands efficient heat dissipation.
TECHNICAL INFORMATION
- Scale: 1/27.6
- Length: 126.0mm
- Width: 65.0 - 76.0mm (adjustable by wheel offset)
- Height: 36.0mm
- Chassis Type: MA-030
- Wheelbase: 94.0mm (just with strut straight back suspension system system system set up), 98.0mm (factory built)
- body weight: 135g
- Brushless 8500KV
- Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
- Tire Diameter (F/R): sold separately
- Tire Width (F): offered separately
- Tire Width (R): offered separately
- Transmitter: not included
- Top rate: approx. 17km/h
- Runtime: approx. 50min.Length: 126.0mm
KIT CONTENT
- Factory-assembled framework laden up with EVO main item installed
- Pinion Gears (15T, 17T, 19T, 21T)
- DWS conversion components *Front tread change parts
- Pinion gear treatment tool
- Spare wheel nuts
- Wheel wrench
- Center shaft for L wheelbase
- Wide straight back suspension system hands for DWS
- swing shafts (4 x long)
- Spur gears (27T, 29T, 31T)
REQUIREMENT TO USE
- 8 x AAA batteries
- Auto Scale Collection (human anatomy, tires and tires)
- Transmitter
- MINI-Z EVO receiver item befitting the transmitter used
