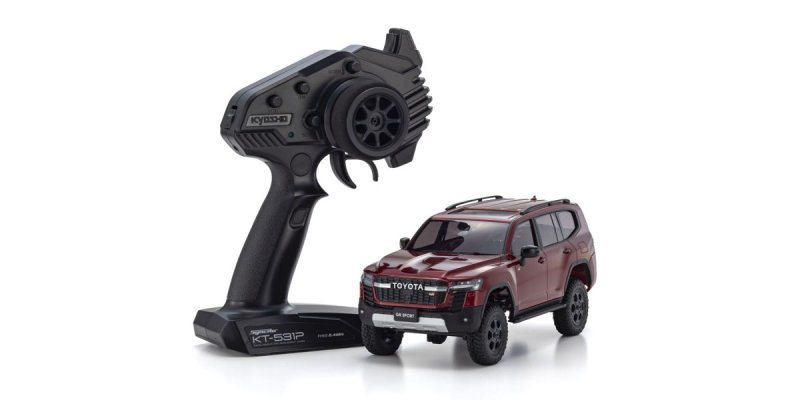

In 2019 the whole world's most favored mini RC show, known as the Kyosho MINI-Z, celebrated a lot more than twenty years of unmatched performance and scale realism inside hobby-grade RC category. The constant look for performance and development has resulted in the creation of a completely-new ‘MINI-Z 4x4’ design providing you with an all-new driving experience for RC fans of stripes, with superior basic design, driving performance and top-quality injection-molded scale body construction. A significant function the MINI-Z 4x4 show would be the greater focus of human body information and quality of finish that also surpasses current benchmarks set by the MINI-Z. The body is molded with thicker product to raised resist crash damage from procedure in rough landscapes. Incorporating equivalent ladder- design framework of genuine 4WD automobiles, the MINI-Z 4x4 boasts a 3-link rigid axle suspension system system combining exactly what would frequently be two top links into only one top A-arm to provide maximum suspension system system motion. A specially produced high-torque steering servo enables this machine to place its elbows around in hard landscapes for exemplary performance inside most challenging rock-crawler conditions. The high-torque 130-size motor brings forth the beast within the MINI-Z 4x4, particularly aimed at operate well in low to moderate price varies common in crawling. Built to balance exquisite design, scale detail and superior driving performance, most of the MINI-Z 4x4 needs is 8 x AAA alkaline batteries (offered individually). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the wonderful creative look. The Kyosho Mini-Z 4x4 could be the only mini crawler that delivers the total array of crawling performance in a smaller package.
● Adopts full-fledged solid axle links like 1/10 scale models, ensuring the driving performance and wheel travel required for crawler models.
● Packed with a specially tuned high-torque 130 motor. Additionally, one of the tips gear device features a slipper clutch that protects the drive system by releasing torque whenever under hefty load.
● Features a high-torque servo specifically designed for crawler models, good at supporting authentic crawling performance. The steering website link optimization achieves the maximum steering angle in Mini-Z history.
● Complete bearing specification with an entire of 18 ball bearings. Metal gears, known in terms of their durability, are utilized in parts that bear hefty lots.
● The "KT-531P" transmitter utilizes the FHSS 2.4GHz system and features a sponge inside controls to improve operability.
● Comes as a completely put together, ready-to-run model, needing only the insertion of batteries to start out procedure.
● An optional light set (MZW429R) is generate close to the top of the circuit board. The lights answer throttle procedure, and headlight's lighting duration are modified freely—from constant lighting to blinking—via the transmitter's trim.
● Supports the individually provided gyro unit (MZW446), and simply just like the RWD/AWD show, handbook alterations could be made through amount control.
● Saturated in popular BS Goodrich tires.
GR (Gazoo rushing) takes the at the moment solid off road performance by using this world-famous SUV around a better degree with strengthened suspension system and higher-level electronic settings. Leading bumper and grille are exclusive toward GR Sport model.
Equivalent ladder framework and multi-link rigid-axle suspension system system popular in popular 1: 10-scale down road models, is condensed into Mini-Z size probably the most articulation and satisfaction obtainable in any mini RC vehicle.
The Mini-Z 4x4 incorporates a ladder framework design with metal straight plates, in conjunction with various molded elements, to provide the maximum security of of rigidity and flex for superior performance and durability.
Solid front side and back axles function links with steel rods and captured pole ends. Ring and pinion gears, and also other gears and elements, feature steel construction to withstand the hefty lots in toughest driving conditions.
the key axle features perfect Ackermann geometry. Along with advanced design linked to the axle housing as well as the other steering elements, This model features the tightest switching radius in Mini-Z history. This implies the Mini-Z 4x4 has exceptional managing ability for anything including casual driving to hard-core crawling.
Tires and tires that are specific every single model are an important focus of the Mini-Z 4x4.
metal gears are employed in areas vunerable to high lots to make sure durability.
The Mini-Z 4x4 features a specially-designed high-torque motor which unique in Mini-Z World. It's optimized for maximum torque, also it develops more energy at paid off rates.
the most truly effective drive effectiveness is achieved utilizing the included set of 18 ball bearings, factory installed to guarantee the smoothest most effective procedure feasible, appropriate out of the industry.
TECHNICAL INFORMATION
- Length 207.0mm
- Width 88.5mm
- Height 90.0mm
- Chassis Type MX-01
- Wheel Base 120mm
- Tread F/R: 72.7mm
- Weight 242.0g (excl. battery)
- Motor/Engine 130 Class
- Gear Ratio 55.44: 1/46.20: 1/39.60: 1/34.65: 1/30.80: 1/27.72: 1
- Front Tire Diameter ?37.0mm
- Rear Tire Diameter ?37.0mm
- Front Tire Width 12.0mm
- Rear Tire Width 12.0mm
- Battery 4 x AAA alkaline
- Transmitter Syncro KT-531P
- Speed Approx. 2.7km/h?5.4km/h
- Running Time Approx. 60 minutes
KIT CONTENT
- Complete framework with vital gadgets.
- Factory-painted human body filled up with many fine details
- KT-531P 2.4GHz transmitter
- Pinion gear set(10T?12T?14T?16T?18T?20T)
- 3 forms of pinion gear spacers
REQUIREMENT WORKING
- 4 x AAA batteries the transmitter
- 4 x AAA batteries for framework (Alkaline or NiMH)
