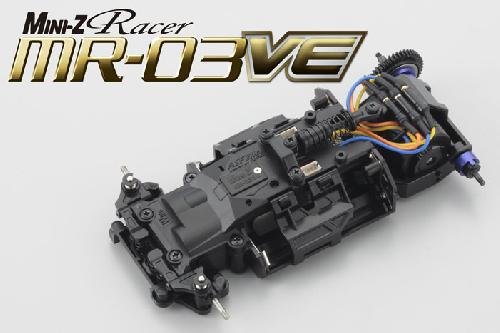

Kyosho 32760 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set  [KY32760]

Chassis pre-installed with a higher performance brushless engine!
Next generation MINI-Z presents a lot more durability and power!

The following growth of the MINI-Z Racer now incorporates the most recent brushless motor technology into its performance. Don't ever used before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless motor featuring its characteristic high durability, power, RPM and an appartment torque feel. The MINI-Z provides full good thing about the brushless motor’s efficient low friction; non-contact properties that minimize usage and minimize electric noise to deliver outstanding linear effect and smooth acceleration for a sensorless brushless engine which authorized to be utilized inside MINI-Z Cup as well as other formal races. A restriction applied to maximum RPM keeps the playing industry degree for several drivers. In addition, a newly developed circuit board with ICS function links to some form of computer (adapter provided individually) for precision setting corrections. Merely download the ‘ICS VE Manager’ computer software from Kyosho web site to manage the brushless motor settings and eradicate the RPM limitation to extract the whole potential from your device. The newly developed top target also enables easy mounting with this optional gyro ahead and framework has the MR-03 ball diff that has been previously optional. Now the MR-03’s effective performance is turbo-charged with brushless motor power to mark a new stage inside development of MINI-Z performance and technology.

*Can be operated with previous MINI-Z Racer ASF2.4 GHz 2-channel transmitter.

Features:

• MR-03 Chassis Set installed with brushless motor

• Ball Diff Set (No.MZW206) included as standard.

• Appropriate for several present MINI-Z Racer human anatomy types.

• Unique brushless motor circuit board features 3 LEDs to indicate appropriate function.

• Redesigned top address allows simple investing in gyro.

• appropriate optional elements the MR-03 chassis.

• Features newly developed revolutionary ‘VCS’ front suspension system that alterations camber angle in collaboration with suspension system stroke.

• ASF2.4GHz R/C system removes need certainly to handle regularity bands. Only 1 transmitter may be used with many models. **Transmitter comes individually.

• designed with digital steering servo with integral coreless motor.

• Coil springs on front suspension system system is simply changed by reducing the springtime stopper with just two screws.

• Features high effectiveness silver plated engine terminals.

• Pre-calibrated zero point steering setting.

• Brushless motor could be the identical size as current 130-class engines. Delivers outstanding durability and power.

• Newly developed brushless engine circuit board could possibly be included into the MR-03 framework. Loaded with 3 LEDs to point appropriate procedure and ICS function.

• Upper cover redesigned to check on new circuit board which is befitting all existing human anatomy types. Features space ahead for mounting optional gyro.

• Good quality silver plated engine terminals and silicon cables included as standard to deal with the high energy manufacturing.

• Ball Diff Set (formerly optional component No.MZW206) is roofed as standard. Functions in perfect combination with brushless engine power.

brushless motor

• As opposed to the brush and commutator present brushed machines until recently, brushless engines be determined by the electric circuit to power the engine. To produce power, brushed engines needed constant contact between your brush and commutator, which produced opposition and triggered usage regarding contact areas to minimize the motor's durability.
  Brushless engines eliminate this problem and produce greater power manufacturing, torque and greater supreme quality performance through the identical energy input. As there is absolutely no contact area, durability is enhanced so the motor keeps its higher level of performance for much longer. These faculties make it possible for R/C models to perform at greater quantities than previously.

VCS (adjustable Camber suspension system system system) takes performance to another dimension!

• Upper arms associated with master pins and knuckles with ball links let the camber angle to improve with suspension system system swing, like on a genuine automobile. Tire connection with the external liner remains constant, additionally during framework roll and suspension system move from area tracing. The newly developed electronic steering servo uses a coreless motor providing you with fast steering effect and razor-sharp maneuverability that feels like its riding on rails. In addition, the top of supply and one-piece cantilever provide perfect cushioned motion the coil springtime. Furthermore, the steel master pin and wheel shaft delivers smooth motion for exemplary operating security. Precision geometry settings eliminate toe in and toe down modification during suspension system move and produce a neutral steering feel. The most recent VCS (adjustable Camber suspension system) represents an important evolutionary assist the history of the MINI-Z.

Newly developed electronic steering servo features coreless engine and brand new gear decrease ratio

• The effective place retention and motion of electronic servo is improved using the use of a coreless engine providing you instantaneous grab and stopping. Also, the newly developed steering gear product has 3 x the product ratio of earlier versions for greater power keeping in mind its devote order so it holds its line securely facing kickbacks from the road area and provides a whole lot more accurate motion and reaction.

Kit Articles

• Factory assembled MR-03W framework arranged with Team ORION XSPEED VE brushless motor.

• One-piece RA-27 receiver and brushless engine circuit board designed with ICS connector

• Modification components for RM-type engine mount

• Upper and reduced meal and steering tie pole for (front) slim tread (included)

• Front suspension system system system spacers for adjustment

• Pinion Gears (7T, 8T, 9T)

• Wheel wrench

• Pinion gear device

• Pairing stick

• free wheel peanuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)

• AAA size alkaline batteries or Ni-MH x 4 for framework

• AAA sized alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

Chassis Technical Suggestions

• Length: 124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)

• Width: 65~76mm

• Height: 34~35mm

• Wheelbase: 86~106mm(86,90,94,98,102,106)

• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]

• Tire(F/R): 23.5~25×8.5mm / 25~27×8.5~11mm

• Gear Ratio: 7.3,6.3,5.5,4.9:1

• Weight: 135g approx.

• Engine: Team ORION XSPEED VE
