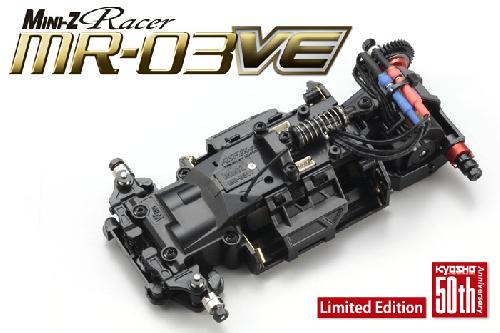

Kyosho 32761 - 1/27 R/C EP Touring Car MINI-Z Racer ASF 2.4GHz Brushless Motor MR-03VE Chassis Set (50th Limited Edition)  [KY32761]

These development connected with MINI-Z Racer now includes the most recent brushless motor technology into its performance. Never ever utilized before on a MINI-Z, this model includes the same-sized ‘Team Orion XSPEED VE’ brushless motor having its characteristic high durability, energy, RPM and a group torque feel. The MINI-Z takes complete benefit of the brushless motor’s efficient low friction; non-contact properties that minimize wear and reduce electric noise to give you outstanding linear impact and smooth acceleration for a sensorless brushless engine which authorized to be used inside MINI-Z Cup and other formal occasions. A restriction put on maximum RPM keeps the playing field degree for a lot of motorists. Furthermore, a newly developed circuit board with ICS function links to a PC (adapter sold individually) for accuracy environment improvements. Just download the ‘ICS VE Manager’ pc software from Kyosho internet site to control the brushless engine settings and acquire gone the RPM limitation to eliminate the entire potential from your own device. The newly designed top address furthermore enables easy mounting associated with the optional gyro towards the utmost effective even though the framework gets the MR-03 ball diff which was formerly optional. Now the MR-03’s powerful performance is turbo-charged with brushless engine capacity to mark a fresh phase in growth of MINI-Z performance and technology.

Features:

• MR-03 Chassis Set installed with brushless motor
• Complete bearing, ball differential, gold-plated battery power terminal gear.
• Appropriate for all present MINI-Z Racer body sorts.
• Unique brushless engine circuit board features 3 LEDs to indicate proper function.
• Redesigned upper address allows simple installing gyro.
• Appropriate optional elements the MR-03 framework.
• Features newly developed revolutionary ‘VCS’ front suspension system system that improvements camber position alongside suspension system system system swing.
• ASF2.4GHz R/C system removes must handle regularity bands. One transmitter works extremely well with numerous models. **Transmitter comes individually.
• Constructed with electronic steering servo with built-in coreless engine.
• Coil springs on front suspension system could be simply changed by eliminating the springtime stopper with just two screws.
• Features high effectiveness silver plated engine terminals.
• Pre-calibrated zero point steering environment.
• Brushless engine may be the identical size as present 130-class machines. Delivers outstanding durability and power.
• Newly developed brushless engine circuit board may be included into the MR-03 framework. Made with 3 LEDs to indicate appropriate procedure and ICS function.
• Upper cover redesigned to complement brand-new circuit board which is suitable for all current human anatomy types. Features area ahead for mounting optional gyro.
• Top quality silver plated motor terminals and silicon cables included as standard to regulate the high energy output.
• Ball differential unique form of Red anodized.

Kit Articles

• Factory assembled MR-03W framework installed with Team ORION XSPEED VE brushless motor.
• One-piece RA-27 receiver and brushless engine circuit board beautifully made with ICS connector
• Modification components for RM-type engine mount
• Upper and paid off meal and steering tie pole for (front part) slim tread (included)
• Front suspension system spacers for adjustment
• Pinion Gears (7T, 8T, 9T)
• Wheel wrench
• Pinion gear unit
• Pairing stick
• free wheel peanuts

Needed for procedure

• ASF 2.4GHz Perfex KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• AAA size alkaline batteries or Ni-MH x 4 for framework
• AAA size alkaline batteries x 4 for transmitter (KT-18), AA size alkaline batteries x 8 (EX-5UR)

*PERFEX EX-5UR ASF Transmitter

Chassis Technical Information

• Length:124~133mm(MM Chassis:125~133mm?RM Chassis:124~132mm)
• Width: 65~76mm
• Height: 34~35mm
• Wheelbase: 86~106mm(86,90,94,98,102,106)
• Tread (F/R): (Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0]
• Tire(F/R): 23.5~25x8.5mm / 25~27x8.5~11mm
• Gear Ratio: 7.3,6.3,5.5,4.9:1
• Bodyweight:135g approx.
• Engine: Team ORION XSPEED VE
