Kyosho 32780 - MINI-Z ASF 2.4GHz MR-03VE JSCC Blue Limited sho 50th Anniversary Specification  [32780]

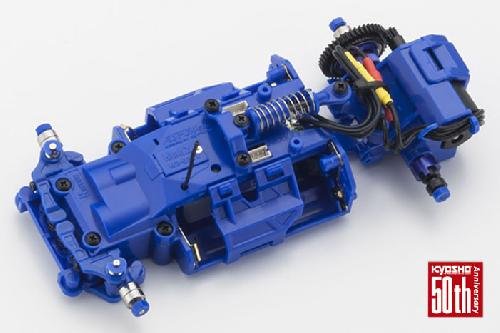

Vivid blue colored framework and framework elements mark the MR-03VE Blue Limited 50th Anniversary Chassis as a particular device. Featuring its brushless motor demands the MR-03VE framework competes at best degree inside the popular JSCC system linked to the MINI-Z Cup. In addition to the ECO Tuned VE motor’s motorist friendly traits, comes the dependability and high torque of brushless engine performance. Inside temperature of JSCC program race battle, these benefits can offer the benefit. This limited version with full bearing requirements is delivered on very same cost although the present framework set. Additionally, the framework permits an optional gyro become bolted on and it's also befitting all human anatomy designs (some one designs need additional elements). Download the free ICS VE Manager computer programs through the Kyosho internet site and step-by-step settings might be modified (adaptor provided separately becomes necessary). Enhanced functions and technology prepare the motorist along with the unit for future development. Utilizing the MR-03VE Blue Limited 50th Anniversary Chassis, there is certainly the actual essence associated with rushing experience.

Priced just like the prevailing framework set, this model features complete ball bearing needs to provide high effectiveness and low opposition for JSCC program competition.

• Pre-assembled MR-03VE N-RM framework set fitted with ECO Tuned brushless motor.
• distinctive version blue color finish.
• Complete ball bearings, ball diff, silver plated battery terminals included as standard.
• RM motor mount and slim tread needs.
• Includes MM motor mount and front tread replacement components.
• Compatible using the most of human body designs. (Some systems require extra components)
• Upper cover permits optional gyro to be easily fitted.
• Appropriate for quantity of optional components the MR-03 framework.
• Revolutionary front suspension system system design adjusts camber with suspension system swing.
• ASF 2.4GHz system straight away manages regularity bands. ※Transmitter offered separately
• Digital steering servo featuring coreless motor.
• Spring stopper is set up or eliminated with just 2 screws.
• Tall conductivity silver plated electric batteries terminals.

  ＜ Kit articles ＞

• Pre-assembled MR-03VE N-RM chassis fitted with ECO Tuned VE brushless engine
• One-piece RA-27 receiver with ICS connector and brushless motor circuit board
• MM motor mount transformation components
• Front part lower and top dishes, steering tie-rod for wide tread.
• Front suspension system system modification spacer
• 7T, 8T and 9T pinion gears
• Wheel wrench
• Pinion gear tool
• Pairing stick
• Spare wheel peanuts

＜ needed for procedure ＞

• ASF2.4GHz PERFEX KT-18 transmitter for MINI-Z or Kyosho EX-5UR ASF transmitter (No.82011)
• Auto Scale Collection (human anatomy set, tires. tires)
• 4 x AAA-size alkaline or NiMH batteries
• 4 x AAA-size alkaline batteries for transmitter (KT-18), 8 x AA-size alkaline batteries (EX-5UR)

Chassis Technical Information

• Size
  124 – 133mm (MM Chassis:125 – 133mm, RM Chassis:124 – 132mm)
• Width
  65 – 76mm
• Height
  35mm
• Wheelbase
  86 – 106mm (86,90,94,98,102,106)
• Tread (F/R)
  (Wide)61.5mm/59mm (Narrow)56.5mm/56.5mm (whenever Wheel Offset=0)
• Tire(F/R)
  23.5 – 25 x 8.5mm (provided separately) / 25 – 27 x 8.5-11mm (available individually)
• Gear Ratio
  7.3, 6.3, 5.5, 4.9 : 1
• Weight
  135g (approx. without body)
• Engine
  ECO Tuned VE Brushless
