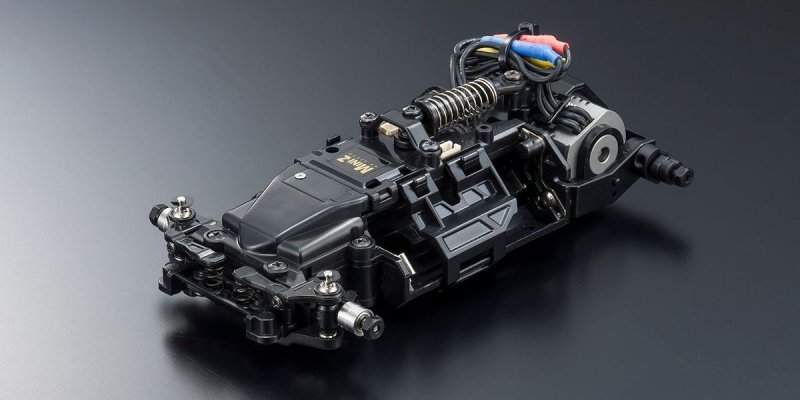

Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)  [KY-32790]

Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)
Price:
£0.00
Brand:
Kyosho
Model:
KY-32790
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
alt="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)" title="Kyosho 32790 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/12000KV)"
The current MINI-Z is set up receiver, servo and ESC by 1 controlled PCB product. Even so the unique MR-03EVO Chassis Set has split receiver as 1 item. By buying and setting up an optional receiver product dependent on used transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. It will be additionally used with Sanwa transmitter in future. Further, by setting up amazing CPU which control servo function just, it improves internal feedback of positioning control which will be 11.2 times faster than current VE specialist models. The newly developed control program realizes top ever steering feeling in the MINI-Z history. The ESC furthermore improves the consequence rate in maximum 100 times faster than current VE specialist models. The included KYOSHO SPEED HOME XSPEED 120 (12000KV) brushless engine features a one-piece aluminum situation that delivers efficient temperature dissipation for superior cooling. Unlike past framework sets, you can alter towards the brushed engine mode although the I.C.S manager to add an optional brushed engine. The I.C.S manager also enables more exact environment modifications to be made. Completely new advanced level performance features in the MR-03EVO just take the MINI-Z competition experience to a different location level!

TECHNICAL INFORMATION

  • Length 117.7mm
  • Width F:7075mm/R:7076mm
  • Height 35mm
  • Wheelbase 98.0mm (LL)
  • Tread F:61.566.5mm/R:61.565mm
  • Tires (F/R) φ25×8.5mm (sold separately)/φ25×8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight g (approx.)
  • Motor KYOSHO SPEED HOUSE/12000KV Brushless Motor

  • KIT ARTICLES

  • MR-03W-MM Factory assembled framework with KYOSHO SPEED HOME XSPEED 120(12000KV) brushless motor
  • Parts set for changing front part tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

  • REQUIRED FOR PROCEDURE

  • Receiver unit
  • Transmitter suitable for receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
