The present MINI-Z is set up receiver, servo and ESC by 1 managed PCB product. Though the unique MR-03EVO Chassis Set has split receiver as 1 product. By buying and setting up an optional receiver item prior to used transmitter, allows for Kyosho (EX-6R/KT-531P), KO Propo (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), and Flysky (Noble NB4) transmitters. Further, by installing groundbreaking Central Processing device which control servo function just, it improves interior feedback of placement control that will effortlessly be 11.2 times quicker than present VE professional models. The newly developed control system knows the most effective ever steering feeling into the MINI-Z history. The ESC besides improves the effect rate in optimum 100 times faster than present VE expert models. The included KYOSHO SPEED ABODE XSPEED 85 (8500KV) brushless motor features a one-piece aluminum example promoting efficient heat dissipation for superior cooling. Unlike previous framework sets, you certainly will change towards brushed engine mode through the I.C.S supervisor to set up an optional brushed engine. The I.C.S manager also enables more accurate environment alterations become made. Brand new high level performance features inside the MR-03EVO simply take the MINI-Z competition experience to some other location degree! The SP edition has nickel plated hex screws and an oil shock (MZW432) as standard. Additionally, the ball diff is especially completed with red anodizing. Furthermore, groundbreaking top hands with various caster perspectives (1 degree/2 degree/3 level) are included allowing wider environment range. The Red Limited variation newly features red synthetic components through chassis being well coodinated utilising the red anodized motor and ball diff.
＊First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
＊Includes brand new KYOSHO SPEED HOME XSPEED 85 brushless engine (8500KV).
＊I.C.S supervisor features detail by detail steering and throttle parameter modification, and switching between brushless and brushed modes.
＊Powered by separate CPUs for ESC and receiver, increased inside processing price plays a role in accuracy steering and throttle control.
＊Equipped with ball bearings and red anodized Ball Diff Set II.
＊Newly designed separate receiver target and front top supply mount render tread modification easier.
＊Compatible with MINI-Z Racer MR-03EVO SP Chassis Set Red Limited (W-MM 8500KV) the MR-03 framework.
＊Including newly developed front top arms with caster perspectives (1 level, 2 degree and 3 degree)
＊Special variation designed with a colored framework, which simply avialable inside framework set.
On the basis of the MR-03VE expert framework, newly produced split receiver address and front top supply mount make tread modification easier.
Receiver devices available are for KYOSHO, KO and FUTABA transmitters and also will be attached/detached by reducing receiver target through the top framework.
Brand-new KYOSHO SPEED HOME XSPEED 85 brushless motor (8500KV) features a one-piece aluminum example that knows efficient heat dissipation.
Full of Ball Diff Set II that decreases fat of aluminum elements about the spur gear component and optimizes safety regarding hub part. This is a must-have product and it's utilized usually in competition-level race.
Full ball bearing specs minmise drive loss
TECHNICAL INFORMATION
- Length 123.5mm
- Width 70~76mm
- Height 35mm
- Wheelbase 94.0mm(LL)
- Tread F:61.5~63.0mm/R:61.5~63.0mm
- Motor Mount MM
- Tires F: 25x8.5mm (provided individually)/R: 25x8.511mm (offered separately)
- Gear Ratio 7.36.35.54.9:1
- Weight 135g (approx.)
- Motor KYOSHO SPEED ABODE / XSPEED 85 (8500KV)
KIT CONTENT

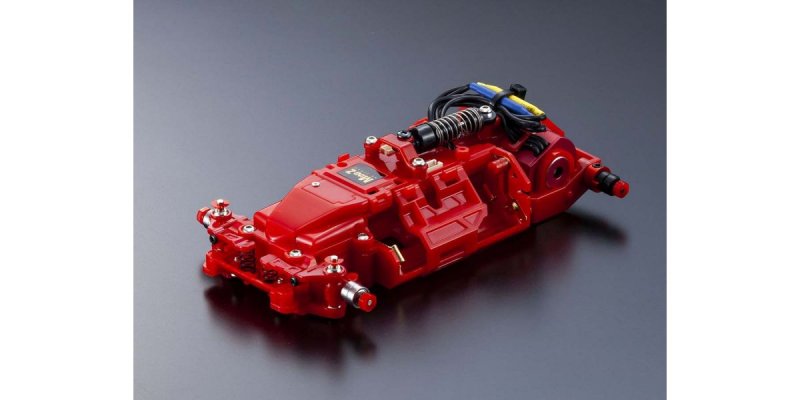

- MR-03EVO-W-MM Factory assembled framework with KYOSHO SPEED HOUSE XSPEED 85 8500KV brushless motor
- Parts set for changing front part tread
- 6T7T8T9T Pinion gears
- Wheel wrench
- Tools for pinion gears
- Spare wheel peanuts
REQUIREMENT TO DO
- Receiver unit
- Transmitter appropriate for receiver unit
- Auto Scale Collection (human anatomy set, wheels, tires)
- AAA x 4 alkaline batteries or Ni-MH batteries for chassis
- Batteries for transmitter
