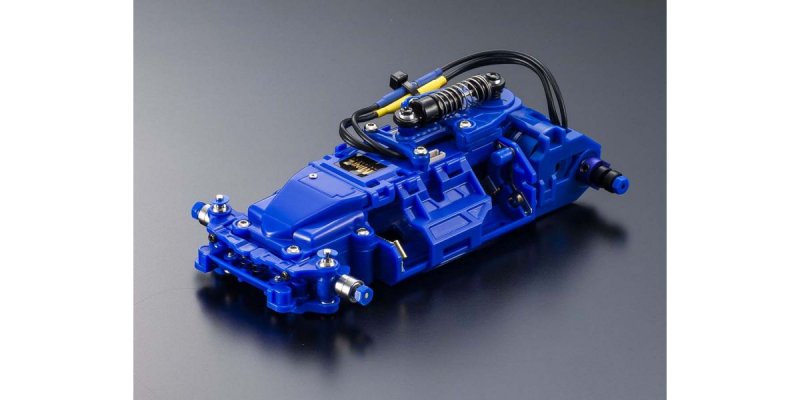

Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)  [KY-32793SP]

Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)
Price:
£165.67
Brand:
Kyosho
Model:
KY-32793SP
GTIN:
4548565423194
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
alt="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)" title="Kyosho 32793SP - MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV)"
The current MINI-Z is established receiver, servo and ESC by 1 managed PCB unit. However the brand new MR-03EVO Chassis Set has split receiver as 1 device. By purchasing and installing an optional receiver device influenced by applied transmitter, permits for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by developing brand-new core Processing Unit which control servo function just, it improves interior feedback of placement control which 11.2 times faster than present VE expert models. The newly developed control system knows top ever steering feeling inside MINI-Z history. The ESC additionally improves the effect price in maximum 100 times faster than existing VE professional models. The included KYOSHO SPEED HOME XSPEED 56 (5600KV) brushless motor features a one-piece aluminum situation that delivers efficient heat dissipation for superior cooling. Unlike previous chassis sets, you'll change towards brushed motor mode although I.C.S manager to install an optional brushed engine. The I.C.S manager in addition permits more exact setting changes become made. Fresh advanced performance features into the MR-03EVO simply take the MINI-Z battle experience to a different location level!
The SP variation comes with nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is specially completed with blue anodizing. Also, new top hands with various caster perspectives (1 degree/2 degree/3 level) are included enabling wider environment range.

＊First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
＊Includes groundbreaking KYOSHO SPEED RESIDENCE XSPEED 56 brushless engine (5600KV).
＊I.C.S supervisor features step-by-step steering and throttle parameter modification, along side switching between brushless and brushed modes.
＊Powered by split CPUs for ESC and receiver, increased inside processing rate plays a role in precision steering and throttle control.
＊Equipped with ball bearings and blue anodized Ball Diff Set II.
＊Newly developed split receiver address and front top supply mount render tread modification easier.
＊Compatible with MINI-Z Racer MR-03EVO SP Chassis Set Blue Limited (N-MM2/5600KV) for the MR-03 framework.
＊Including newly developed front top hands with caster views (1 level, 2 degree and 3 degree)

based on the MR-03VE professional framework, newly produced separate receiver target and front top supply mount make tread modification easier.


Receiver units available are for KYOSHO, KO and FUTABA transmitters which can be attached/detached by detatching receiver target from top framework.


New KYOSHO SPEED HOME XSPEED 56 brushless engine (5600KV) features a one-piece aluminum instance that realizes efficient heat dissipation.


Fashioned with Ball Diff Set II that decreases fat of aluminum elements in regards to the spur gear component and optimizes stability on hub component. This will be actually a must-have item and it is utilized frequently in competition-level race.


Comprehensive ball bearing demands minimize drive loss



TECHNICAL INFORMATION

  • Length 120.5mm
  • Width 70~76mm
  • Height 35mm
  • Wheelbase 94.0mm(L)
  • Tread F:61.5~63.0mm/R:61.5~63.0mm
  • Engine Mount MM2
  • Tires F: 25x8.5mm (offered separately)/R: 25x8.511mm (sold separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED RESIDENCE / XSPEED 56 (5600KV)


KIT CONTENT

  • MR-03EVO-N-MM2 Factory come up with framework with KYOSHO SPEED RESIDENCE XSPEED 5600KV brushless engine
  • Parts set for changing front part tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts


REQUIREMENT TO EXERT EFFORT

  • Receiver device
  • Transmitter suitable for receiver unit
  • automobile Scale Collection (body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for framework
  • Batteries for transmitter
