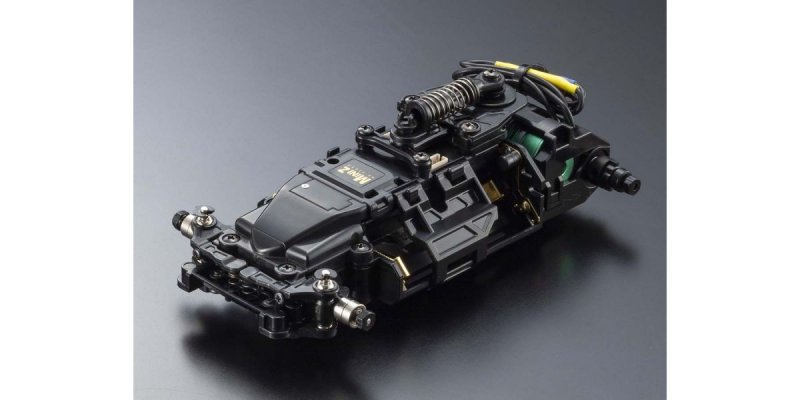

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)  [KY-32798]

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)
Price:
£121.61
Brand:
Kyosho
Model:
KY-32798
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
First released in December 2018 the MR-03EVO series delivered amazingly fast processing rate and showcased another receiver board that offered the flexibility of transmitter option. couple of years after its stunning very first, the MR-03 EVO lineup happens to be strengthened with a race-based framework. Confirmed the rate range environment have already been KV5600 for wide framework, however it is paid down a straight to KV4100. While keeping the whole bearing specs and Ball Diff Set II, align the beds base framework due to the brand new standard rate range and initiate a wider level of users. Through appropriate receiver products : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from Readyset. Most likely the MR-03EVO framework set’s greatest advantage usually additionally it is in conjunction with a brushed motor (No.MZ9E, supplied on their own) to comply with a straight wider collection of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
●Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
●I.C.S supervisor features detail by detail steering and throttle parameter modification, additionally switching between brushless and brushed modes.
●Powered by separate CPUs for ESC and receiver, increased interior processing cost plays a component in accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II.
*Newly designed split receiver address and front top supply mount render tread modification easier. *Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 framework.

In line with the MR-03VE professional framework, newly developed split receiver target and front top supply mount make tread modification easier.

Receiver item come in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and you will be attached/detached by eliminating receiver target from upper framework.

New KYOSHO SPEED RESIDENCE brushless engine XSPEED 41(4100KV) features a one-piece aluminum example that understands efficient temperature dissipation.

Constructed with Ball Diff Set II that decreases weight of aluminum elements on spur gear part and optimizes balance inside hub component. This is actually a must-have product and is used usually in competition-level racing.

Comprehensive ball bearing requirements minimize drive loss.



TECHNICAL INFORMATION

  • Length 119.5mm
  • Width 70~76mm
  • Height 38mm
  • Motor Mount MM2
  • Wheelbase 94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (provided separately)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (Body / tires / tires maybe not included, battery included.)
  • Motor KYOSHO SPEED RESIDENCE 4100KV


KIT CONTENT

  • MR-03W-MM2 Factory put together framework with KYOSHO SPEED HOME KV4100 brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO EXECUTE

  • Receiver unit
  • Transmitter well suited for receiver unit
  • Auto Scale Collection (human anatomy set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
