Description

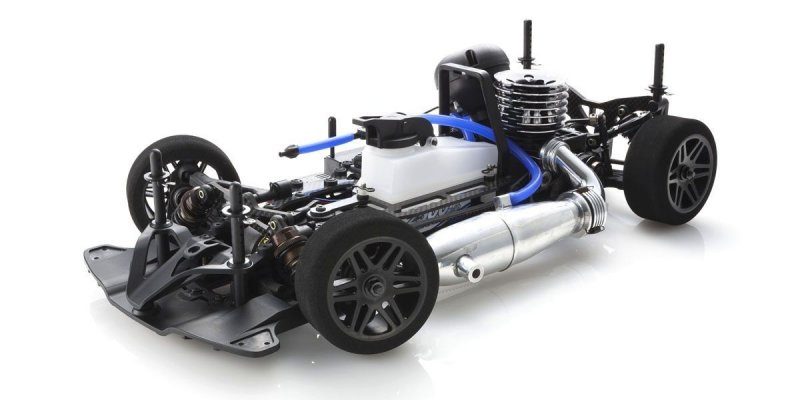

The V-ONE R4 show has a reputation built on proven performance in major events in Japan and all over the world. Since its launch, the V-ONE R4 has maintained its sporting benefit through constant enhancement now takes an evolutionary step utilising the amazing Evo.2. On the basis of the past Evo. platform, essential elements as an example the primary chassis and top deck have been redesigned in brand new V-ONE R4 Evo.2 for optimal rigidity and superior performance with modern high-power machines. Increased technical hold is accomplished split of tire grip and complies with competition instructions with managed tires. The V-ONE R4 show is celebrated due to the low center of gravity, that is further enhanced by brief oil shocks that deliver increased cornering rate on high-grip areas while preventing highside. Improvements towards clutch and braking system rotor are further improvements in R4 Evo.2, making this a great machine to see superior racing in tasks including the Sports Class through the entire 2018 JMRCA 1/10 Engine Touring automobile nationwide Championship.

●Evo.2 features improvements to key elements while maintaining the most effective associated with V-ONE R4 Evo.
●Newly designed main framework and top deck deliver additionally greater technical hold.
●New stopping system rotor included as standard improves driving feel at low price.
●Front universal move shafts increase drive effectiveness and expel risk of drive shafts coming loose.
●Hook pin guaranteed in full fuel tank is effectively eliminated and set up.
●Equipped with front knuckle and rear hub that may be fitted with optional carbon disk.
●Compatible aided by the most existing optional elements.

Retains the very best linked to the V-ONE R4 Evo. with improvements through redesign of critical elements. Steering post revised for optimal Ackerman ratio and enhanced cornering speed.

Grooved primary framework further increases technical hold and combines with newly produced top deck to create perfect roll and pitching rigidity.

Shorter oil shocks on front side and backside know paid off center of gravity to boost cornering price. Shock springs may included as standard and they are additionally optimized to be used with sponge tires.

Special 3D rushing clutch the Evo.2 maximizez motor performance. Revised clutch footwear product with tiny diameter flyweel understand both improved throttle reaction and top end speed.

Aerodynamic 3D design front part bumper increases cornering protection and allows high rate cornering performance.

Compact radio package protects the receiver and wiring from crash harm and gas splashes during refueling.

TECHNICAL INFORMATION

Length 368mm
Width 200mm
Height 105mm
Wheelbase 258mm
Tread (F/R) 174mm/170mm
Tires (F/R) provided separately
Gear Ratio 7.18/5.09 : 1
Weight 1,700g (approx.)
Engine 12-15 course (offered separately)

KIT CONTENT

Unassembled framework kit
Steering servo horn worthy of major brand R/C systems
5.0mm L-shape hex wrench
Cross wrench (little)

REQUIREMENT TO RUN

2ch-3ch R/C vehicle transmitter
Receiver
Servos x 2
Switch
Batteries for transmitter
Batteries for receiver (flat pack)
12-15 program motor with straight back making exhaust
Manifold
Muffler
Glow gas (for R/C models)
Engine beginning gear (novice package, gas container, plug heater)
200mm width touring automobile body
Paint for automobile body
Wheels and tires
Tools
Instant glue
