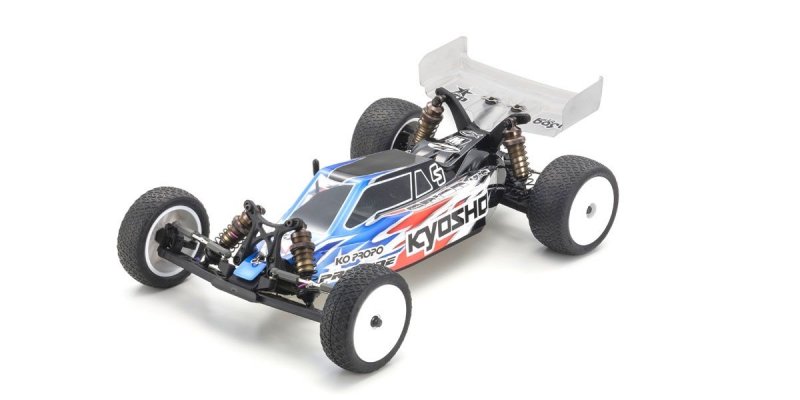

Kyosho 34302 - ULTIMA RB6.6 1/10 EP 2WD Buggy KIT [KY-34302]

Price:

£0.00

Brand:

Kyosho

Model:

KY-34302

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

Description

Following the IFMAR Electrical Off-Road World Championship in Ultra high grip areas specially synthetic turf and carpeting are becoming main-stream in off road battle as the 2015 IFMAR Off-Road World Championships run at Yatabe Arena in Ibaraki, Japan. To keep before these constantly evolving designs, Kyosho’s Ultima RB6 is updated to the fresh 6.6 model. While keeping the superiority of proven suspension system system and steering in RB6, this brand new 6.6 model features an array of 4 different gearboxes: “Rear Motor”; “3 Gear Midship”; “4 Gear Midship”, and “Lowdown Midship”. As well as the ever-reliable back motor for looser areas, the 6.6 features midship transmissions for greater hold dust areas and a newly produced paid C of G lowdown midship transmission for ultra high-grip areas especially artificial turf and carpeting. With step by step accuracy environment capability, this solitary product works with any area kind that a racer must drive on. Additionally, the wider 7075-T6 grade primary framework with side guards is unchanged to provide the cornering top features of its width. With all the midship design, either right or sideways battery mounting orientation could possibly be accustomed fine-tune the framework fat blood circulation impact on running performance.

・Features upgraded requirements in line with the Ultima RB6 (No.34301) model circulated on in 2015.
・Highly adaptable framework settings with choice of lowdown midship motor, midship engine and rear motor designs.
・Ball differential features endurance and superior accuracy tungsten diff balls.
・Features one-piece wheel shafts made out of high-strength steel.
・Clamp screw aluminum hex wheel hubs provide protected traction and accurate rotation on backside.
・Large ability slipper clutch works together with with an increased energy engines.
・Gun metallic anodized aluminum elements create a formidable searching finish.
・Includes X-GEAR ball diff oil, high graphite oil and shock springs.

Incorporates high level specifications including: high rigidity 7075-T6 main framework, surface-tracing Big Bore shocks and choice of motor layout.

With the RB6 model’s width, the 7075-T6 grade primary framework features increased rigidity and reduced center of gravity to perform both in high-speed and high-grip competition conditions.

Battery are oriented right or sideways (with midship design) for precision modification of framework fat blood supply to aid the hold and design of varied rushing courses.

Newly developed low down midship transmission decreases the spur gear axis by 15.5mm (compared to the midship transmission included), to significantly decrease the framework center of gravity.

Includes collection of 3-gear or 4-gear midship transmissions. 3-gear transmission shown in photo delivers sharper throttle response compared to the 4-gear and it is better suited to high-grip track areas.

4-gear midship transmission provides easier control set alongside the sharp throttle response regarding the 3-gear transmission. 3-gear and 4-gear transmission choices provide a decisive racing benefit.

Includes sus pins that license 3 caster angle settings: 0°, 2° and 4°. Precision setting modification enables superior cornering and satisfaction over gaps.

Uses a similar one-piece steel wheel shafts, hardened ball ends and chrome-moly metal adjustable tie rods considering that the previous model for superior crash opposition and durability.

Features gull-wing shaped suspension system hands that enable maximum feasible move through straight back shocks. Constructed with moderate shock springs for additional back grip.

TECHNICAL DATA

Length: 395mm
Width: 249mm
Height: 140mm
Wheelbase: 285mm
Tread (F/R): 221mm/201mm
Tire(F/R): supplied separately
Gear Ratio: 2.60 :1 (additional decrease ratio), Spur 76T/pinion gear offered independently
body fat: 1,620g (approx.)
Motor: offered separately

REQUIREMENT TO OPERATE

2-channel, 1-servo, 1-ESC R/C System

engine

Battery for framework

Tires

Tire inners

Battery charger

Pinion gears

Paint for human body

Batteries for transmitter

Tools
