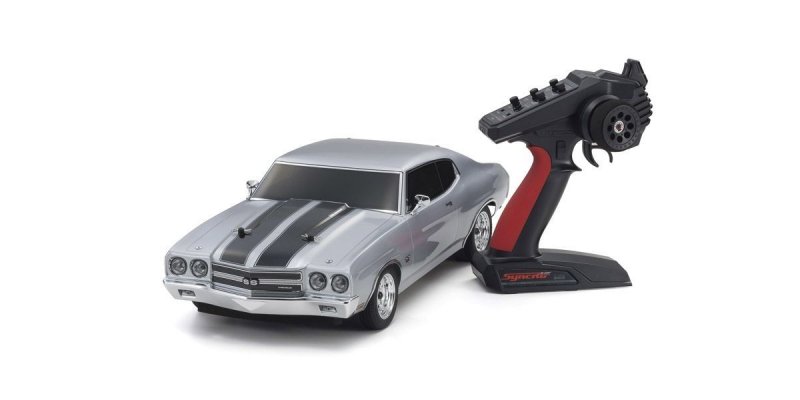

Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver [KY-34416T1]

Price:

£0.00

Brand:

Kyosho

Model:

KY-34416T1

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

Description

The pure satisfaction of R/C automobile driving, the blend of a beautifully reproduced vehicle body utilising the FAZER show framework can’t be beaten. Kyosho has brought its standard touring vehicle framework and trained because of the whole model makeover with developed performance to a brand new level. A simplified design with less components has improved upkeep effectiveness and paid off fat while core power and rigidity is increased through unique materials and ribbing and stiffeners on front part and back. Besides, the symmetrical framework design synergizes excellent front-rear stability through suspension system with responsive control, as well as energy supply. Featuring slipper clutch, front & straight back gear differentials, oil shocks and full ball bearing specifications, the high durability and effect opposition allows motorists to unleash the total potential regarding framework. Brake disk wheel hubs with two different offsets (0mm, +5mm) offer compatibility with 190mm and 200mm width human body designs and allows the wheelbase become modified to 274mm by changing some components (available independently) for compatibility as well as other 1/10 scale body designs, and also the body included. The Readyset package comes totally produce and includes anything except charger and battery power the framework, and batteries for the transmitter.

●“Ultra Scale Body” replicates the fine info on the human body towards vehicle. Kyosho took one action further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package simply requires 4 x AA alkaline batteries the transmitter, and battery with charger the framework.
●Equipped with 2-bevel grease-filled gear diffs on front part and back.
●Large size dog bones and cup bones understand superior dependability and durability.
●Belt mounting battery pack compartment allows different battery power sorts become used.
●Full ball bearings that decrease drive loss ready through the complete drive system.
●Features KS202W waterproof steering servo.
●Includes totally finished human anatomy with color scheme and decals utilized.
●Sealed differential and transmission deliver dependable performance, furthermore on dusty parking lot areas.
●Performance are further enhanced by setting up various optional components.

Brand-new framework knows low center of gravity featuring its simple, practical design. Featuring a gearbox that optimizes torsional rigidity from the main framework, the nylon material decreases weight while boosting impact resistance. Each key component happens to be strengthened inside easy design without upper deck.

Features a lowered quantity and amount of screws and parts, and consolidation of popular screws to the identical size. Numerous screws are flat brain screws which can be eliminated with a 2.0mm hex wrench for simple disassembly.

managing facets like bump steer and scrub radius are optimized on front suspension system system. Effortless ball-connected steering knuckle guarantees dependable control movement. Interchangeable on both front side and right back left-right hub companies optimize additional parts utilization and enhance upkeep effectiveness.

Includes number of two offset stopping system disk wheel hubs with dummy calipers (for creative styling) providing compatibility with 190mm and 200mm human anatomy widths.

New design oil shocks mark an evolutionary intensify from previous models Oil surprise is newly created. Optimal front-rear geometry and security on top of that provides both light managing and accurate control. Loaded with long surprise end enables a high journey height to pursue true scale look.

Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings may be used from 29T – 37T to create a wide range of gear ratio settings. The latest fixed gear mesh engine mount has holes to be utilized with each various pinion gears. Simply just install the engine right to the opening areas corresponding towards the pinion gear. No gear mesh adjustment is essential.

Equipped utilizing the ‘LS6’ 7400cc V-type 8-cyclinder OHV engine that generated 450ps / 69.1kgm of maximum torque, the superior ‘SS’ form of Chevrolet’s legendary Chevelle was indeed a force become reckoned with. The 1970 model is really reproduced in 1/10 scale polycarbonate human body featuring its signature 4 circular headlights.

New design Vintage Touring automobile (VTC) tires & Rostyle sort tires to suit classic automobile design.

Comes utilising the brand new effective 550 size 14T brushed motor(G14L). The long might with Steel band across the motor case and internal cooling fan provides efficient torque and high speeds.

TECHNICAL INFORMATION

Length 484mm
Width 195mm(Body width:210mm)
Wheelbase 274mm
Tread (F/R) F:167mm/R:167mm
Tires (F/R) F:φ64×27.7mm/R:φ64×27.7mm
Gear Ratio 6.54:1
Weight 1650g (approx.)
R/C system Syncro KT-231P+
Motor G14L

KIT CONTENT

Completed framework with R/C radio installed
Factory assembled body detail by detail with color scheme
Syncro KT-231P+ transmitter
Installed 60A waterproof electronic cost controller (forward/brake/reverse)
+5mm off-set wheel hub (for 200mm width framework), M4 x 22 wheel screw
Hexagonal wrench
Spanner

REQUIREMENT TO RUN

4 x AA batteries for transmitter
Battery for framework (advised: 7.2V Ni-MH battery)
Charger for battery power for chassis
Tools
