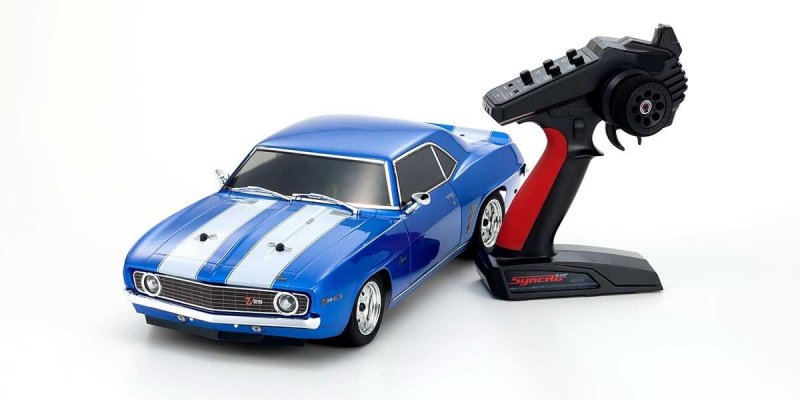

Kyosho 34418T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02 Series Readyset 1969 Chevy(R) Camaro(R) Z/28 Le Mans Blue [KY-34418T1]

Price:

£0.00

Brand:

Kyosho

Model:

KY-34418T1

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

Description

The pure satisfaction of R/C automobile driving, the combination of a beautifully reproduced vehicle human body combined with the FAZER show framework can’t be beaten. Kyosho has gotten its standard touring car framework and trained with a whole model makeover which has developed performance to a whole new degree. A simplified design with less components has improved upkeep effectiveness and reduced fat while core power and rigidity is increased through new materials and ribbing and stiffeners on front part and rear. In addition, the symmetrical chassis design synergizes exemplary front-rear stability through suspension system system with responsive control, aside from power supply. Featuring slipper clutch, front & rear gear differentials, oil shocks and complete ball bearing specifications, the high durability and impact opposition enables motorists to unleash the full probability of the framework. Brake disk wheel hubs with two various offsets (0mm, +5mm) offer compatibility with 190mm and 200mm width human body designs and permits the wheelbase become modified to 260mm by changing some components (offered individually) for compatibility with other 1/10 scale body designs, additionally your system included. The Readyset package comes entirely put together and includes any such thing except charger and battery power the framework, and batteries the transmitter.

●“Ultra Scale Body” replicates the fine informative data on the specific human anatomy regarding automobile. Kyosho took one action further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package merely requires 4 x AA alkaline batteries the transmitter, and battery pack with charger the framework.
●Equipped with 2-bevel grease-filled gear diffs on front and back.
●Large size dog bones and cup bones understand superior reliability and durability.
●Belt mounting battery pack compartment permits various battery types to be used.
●Full ball bearings that reduce drive loss prepared through the drive system.
●Features KS202W waterproof steering servo.
●Includes totally finished human anatomy with color scheme and decals utilized.
●Sealed differential and transmission deliver reliable performance, additionally on dusty parking tremendous amount areas.
●Performance are further enhanced by setting up different optional elements.

New framework understands low center of gravity along with its easy, practical design. Featuring an integrated gearbox that optimizes torsional rigidity of this primary framework, the nylon item decreases weight while enhancing effect opposition. Each key component is strengthened within easy design without top deck.

Features a lower life expectancy volume and quantity of screws and elements, and consolidation of frequently used screws on identical size. Most screws are flat mind screws which might be eradicated with a 2.0mm hex wrench for easy disassembly.

managing facets particularly bump steer and scrub radius are optimized on front suspension system system. Effortless ball-connected steering knuckle guarantees reliable control motion. Interchangeable on both front part and right back left-right hub companies optimize additional elements utilization and enhance maintenance effectiveness.

Includes number of two offset stopping system disk wheel hubs with dummy calipers (for artistic styling) providing compatibility with 190mm and 200mm body widths.

New design oil shocks mark an evolutionary step-up from past models Oil surprise is newly created. Optimal front-rear geometry and stability also provides both light managing and exact control. Loaded with long shock end permits an increased journey height to pursue genuine scale look.

Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be utilized from 29T – 37T in order to make a myriad of gear ratio settings. The present day fixed gear mesh motor mount has holes to be used with each different pinion gears. Just install the engine straight to the opening locations corresponding toward pinion gear. No gear mesh modification is essential.

As the signature American recreations coupe, the Chevrolet Camaro has maintained its popularity around the world. Sold during 1967 to 1969, the Z/28 ended up being the maximum specification into the 1st Camaro model. Along side its long nose and brief deck proportions, the classic coke-bottle front component and straight back fender lines are beautifully reproduced in 1/10 scale.

Fresh design Vintage Touring automobile (VTC) tires & Rostyle type tires to check on vintage vehicle design.

Comes with all the current new effective 550 size 14T brushed motor(G14L). The long will with metal band over the engine situation and interior cooling fan provides efficient torque and high speeds.

TECHNICAL INFORMATION

Length 507mm
Width 195mm(Body width:210mm)
Wheelbase 260mm
Tread (F/R) F:167mm/R:167mm
Tires (F/R) F:φ64×27.7mm/R:φ64×27.7mm
Gear Ratio 6.54:1
Weight 1650g (approx.)
R/C system Syncro KT-231P+
Motor G14L

KIT CONTENT

Completed framework with R/C radio installed
Factory built body detailed with color scheme
Syncro KT-231P+ transmitter
Installed 60A waterproof electronic rate controller (forward/brake/reverse)
+5mm off-set wheel hub (for 200mm width framework), M4 x 22 wheel screw
Hexagonal wrench
Spanner

REQUIREMENT TO RUN

4 x AA batteries for transmitter
Battery for framework (suggested: 7.2V Ni-MH battery)
Charger for battery power for chassis
