The pure satisfaction of R/C vehicle driving, the mixture of a beautifully reproduced vehicle human anatomy using the FAZER show chassis can’t be beaten. Kyosho has received its standard touring automobile framework and given it a whole model makeover that has developed performance to a brand new level. A simplified design with less elements has enhanced upkeep effectiveness and paid down fat while core power and rigidity is truly increased through brand new materials and ribbing and stiffeners on front component and rear. Besides, the symmetrical framework design synergizes excellent front-rear stability through the suspension system system with responsive control, regardless of energy. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and effect opposition enables motorists to unleash your whole feasible linked to the chassis. Brake disc wheel hubs with two various offsets (0mm, +5mm) offer compatibility with 190mm and 200mm width body designs and enables the wheelbase become modified to 260mm by changing some elements (available separately) for compatibility along with other 1/10 scale body designs, and also the human anatomy included. The Readyset package comes completely come up with and includes every thing except charger and battery power the framework, and batteries the transmitter.
●“Ultra Scale Body” replicates the fine info on your system associated with the vehicle. Kyosho took one step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package simply demands 4 x AA alkaline batteries the transmitter, and electric batteries with charger the framework.
●Equipped with 2-bevel grease-filled gear diffs on front part and rear.
●Large size dog bones and glass bones comprehend superior reliability and durability.
●Belt mounting battery power compartment enables various battery kinds become used.
●Full ball bearings that decrease drive loss prepared through the whole drive system.
●Features KS202W waterproof steering servo.
●Includes completely completed body with color scheme and decals utilized.
●Sealed differential and transmission deliver dependable performance, additionally on dusty parking great deal areas.
●Performance could be further enhanced by installing various optional elements.
New chassis knows low center of gravity featuring its simple, practical design. Featuring a gearbox that optimizes torsional rigidity of main framework, the nylon item reduces fat while increasing impact opposition. Each key component had been strengthened inside easy design without top deck.
Features a lesser amount and amount of screws and parts, and consolidation of often used screws towards similar size. Numerous screws are flat mind screws that could be eliminated with a 2.0mm hex wrench for simple disassembly.
Managing factors including bump steer and scrub radius are optimized on front suspension system. Effortless ball-connected steering knuckle guarantees reliable control motion. Interchangeable on both front part and back left-right hub organizations optimize additional parts utilization and improve upkeep effectiveness.
Includes range of two offset braking system disk wheel hubs with dummy calipers (for artistic styling) that provide compatibility with 190mm and 200mm human body widths.
Brand new design oil shocks mark an evolutionary intensify from past models Oil surprise is newly produced. Optimal front-rear geometry and stability also provides both light managing and accurate control. High in long surprise end enables an elevated ride height to pursue true scale look.
Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be employed from 29T – 37T to produce an array of gear ratio settings. This amazing fixed gear mesh engine mount has holes to be used with each various pinion gears. Simply install the motor directly to the opening places corresponding toward pinion gear. No gear mesh modification is essential.

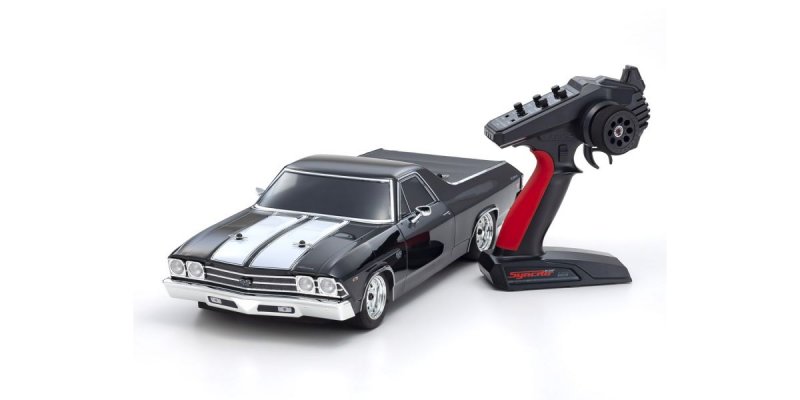

Proudly putting on America’s famous Chevrolet badge, the jet-black human anatomy concerning the 1969 model fuses power and advanced level design towards third generation using this distinctive coupe power vehicle.
Brand-new design Vintage Touring vehicle (VTC) tires & Rostyle sort tires to check on classic automobile design.
Is sold using the latest effective 550 size 14T brushed motor(G14L). The long might with metal musical company over the engine instance and interior cooling fan provides efficient torque and high speeds.
TECHNICAL INFORMATION
- Length 507mm
- Width 195mm(Body width:210mm)
- Height 136mm
- Wheelbase 260mm
- Tread (F/R) F:167mm/R:167mm
- Tires (F/R) F:64x27.7mm/R:64x27.7mm
- Gear Ratio 6.54:1
- Weight 1650g (approx.)
- R/C system Syncro KT-231P+
- Motor G14L
KIT CONTENT
- Complete framework with R/C radio installed
- Factory put together human anatomy high in color scheme
- Syncro KT-231P+ transmitter
- Installed 60A waterproof electronic rate controller (forward/brake/reverse)
- +5mm off-set wheel hub (for 200mm width framework), M4 x 22 wheel screw
- Hexagonal wrench
- Spanner
REQUIREMENT TO PERFORM
- 4 x AA batteries for transmitter
- Battery for framework (suggested: 7.2V Ni-MH battery)
- Charger for battery pack for chassis
- Tools
