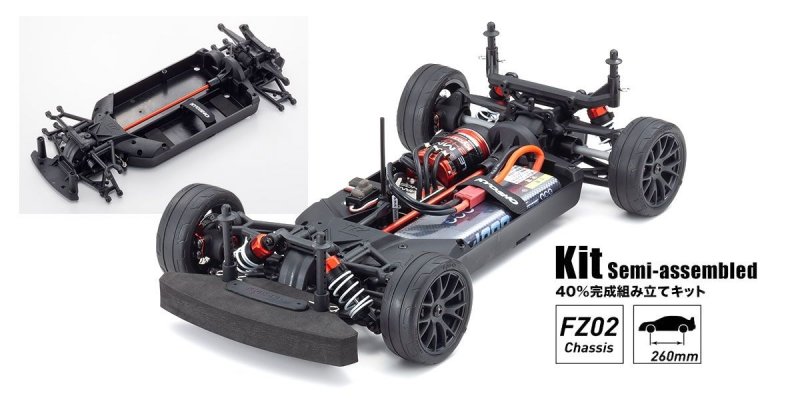

The FAZER Mk2 Readyset is perfect for the pure satisfaction of R/C automobile driving. Available these days as a framework kit, owners have in fact in fact the flexibleness to include unique human anatomy and R/C system. Specs happen elevated with optional components including HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system system balance with this lightweight framework for R/C racers to savor. Since the deckless design seems effortless, a minimal range elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon product further decreases fat and improves effect opposition. Having its unique design, the FZ02 framework embodies features and satisfaction which could interest R/C drivers on most amounts.
40percent pre-assembled (shocks and diff gears aren't filled with oil so installation is finished to preferred environment). The FZ02’s effective low center of gravity design compliments the high energy and rigidity recognized through front side & rear stiffeners and rib reinforcement at key parts of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft into the Readyset. And smoother driving transmission, the red anodized color has striking appearance. Included aluminum dish protects the engine from dust and provides effective heat dissipation, specially in to the heat of summer season competition.
TC Universal swing shafts L (FAW202) regarding forward drive component don’t fall on hefty contact like dog bone tissue tissue muscle mass shafts. Besides, the move shafts deliver constant drive transmission although joint are in an extensive steering angle.
A certain resin transponder mounting stay is included for when the framework is contending in battle occasions. You don't need to create a handmade stay or holes within the body to fit a transponder.
Included human body mounts enable systems from various manufacturers become fitted. Additionally, two various brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with different body sorts.
Oil shocks and springs optimize the front-rear geometric safety, delivering both light managing and exact control. (Silicone oil the shocks comes individually)
Bump steer and scrub radius, the 2 factors along with the most readily useful effect on control, have now been optimized regarding front suspension system. Interchangeable front-rear and left-right hub carriers improve elements effectiveness and maintenance.
Included initial low-profile semi-slick pattern FAT701M TC Tire (M), inner sponge and FAH701BK Wheel (unglued), providing superior performance.
Built with Front and right back light buckets right for optional 97054 LED Light device which are generally provided individually.
By establishing the LED light unit, improves scale realism for human body shell.
TECHNICAL INFORMATION
- Length (Body Size) 375mm(464mm)
- Width(Body Width) 200mm /190mm(207mm)
- Ground clearance 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: φ66mm x 25mm/R:φ66mm x 25mm
- Gear Ratio 6.54:1
- Total room for stocking fat Approx. 1,490g (with 7.4V4000 LiPo)
KIT CONTENT
- 40percent pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width body)
- body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- FAH701BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO EXECUTE
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended products No.82138/82151
- 540-550 program engine *Recommended items No.37031/37032
- ESC appropriate engine used(Size:L36xW32xH23mm or less)*Recommended things No.37051
- Survo *Recommended products No.82273
- Battery charger
- Battery for framework perfect for ESC used(SIze:L145xW47xH25mm or less)*Recommended products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended things F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate body
- Tools
