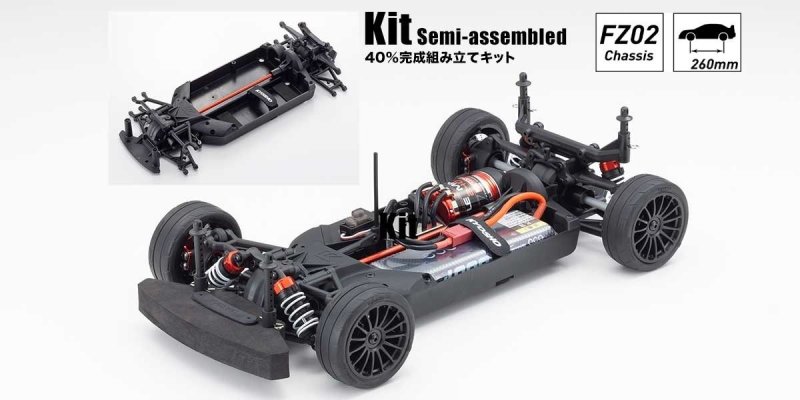

The FAZER Mk2 Readyset is made the pure satisfaction of R/C automobile driving. Available nowadays as a framework kit, owners have actually actually truly the flexibleness to include their human anatomy and R/C system. Demands have already been elevated with optional components like HD TC center shaft S and TC universal move shaft L to improve the unrivaled symmetrical design and front-rear suspension system protection concerning the lightweight framework for R/C racers to have enjoyment from. Even though the deckless design appears easy, less level of elements improves upkeep effectiveness and optimizes torsional rigidity. Incorporation of nylon item further decreases fat and improves effect resistance. Along with its unique design, the FZ02 framework embodies features and satisfaction which could attention R/C motorists of all amounts.

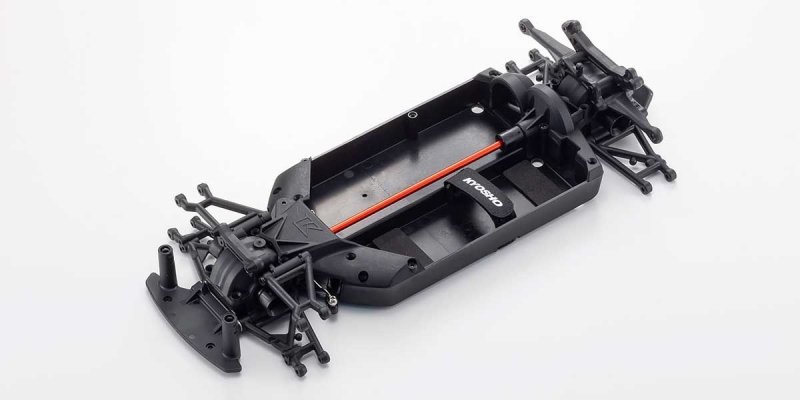

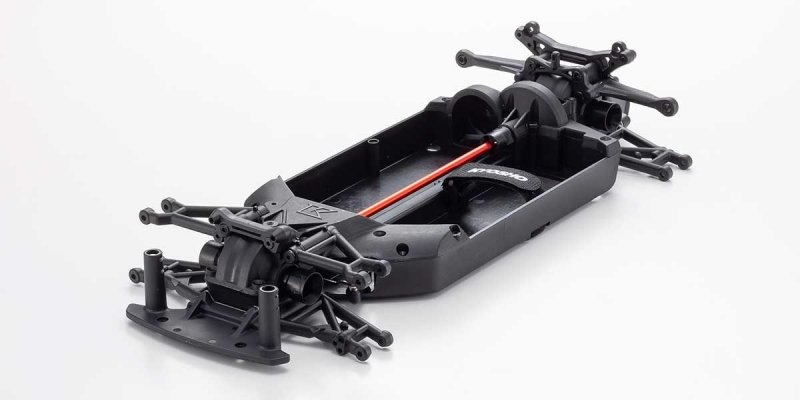

40per cent pre-assembled (shocks and diff gears aren't filled up with oil so construction are completed to preferred environment). The FZ02’s effective low center of gravity design compliments the high power and rigidity recognized through front side & right back stiffeners and rib reinforcement at key chapters with this framework.

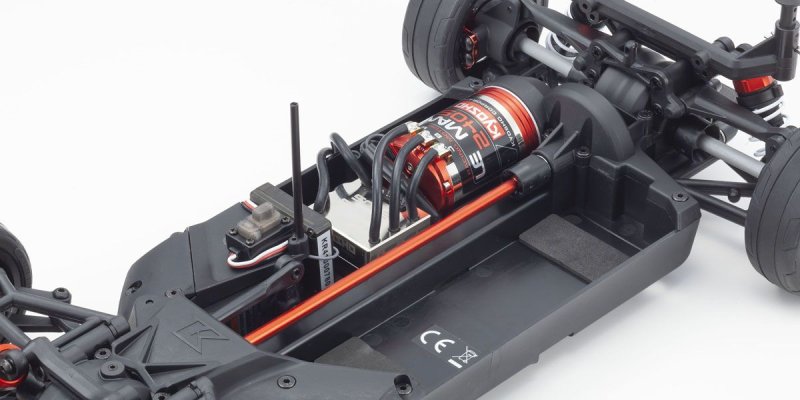

Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft within the Readyset. Along with smoother driving transmission, the red anodized color has striking appearance.
TC Universal swing shafts L (FAW202) inside front drive part don’t autumn on heavy contact like dog bone tissue shafts. Besides, the move shafts deliver constant drive transmission even though joint is at an intensive steering angle.

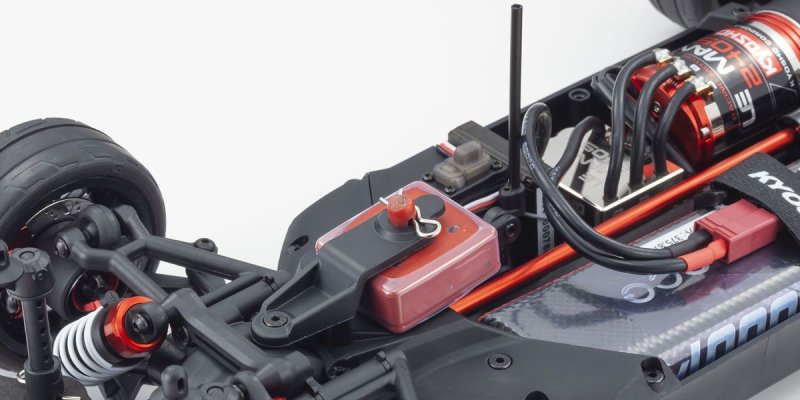

A unique resin transponder mounting stay is roofed for after the framework is competing in competition occasions. There's no necessity to help make a handmade stay or holes in the torso to complement a transponder.

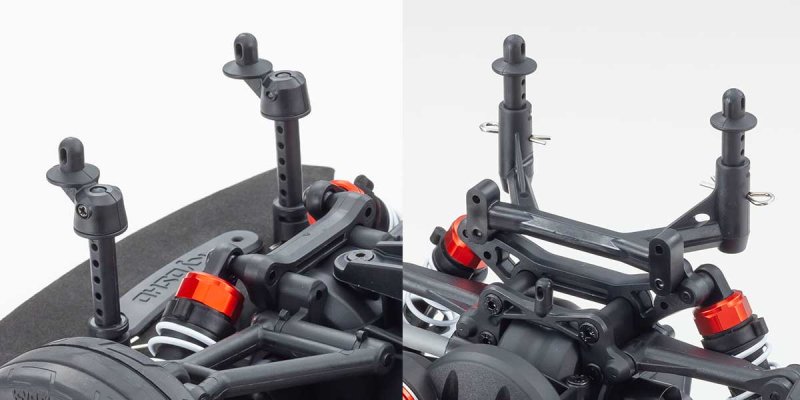

Included body mounts enable systems from different manufacturers become fitted. Besides, two various brake-disk wheel hubs allow 190mm and 200mm framework width settings for compatibility with various human body sorts.

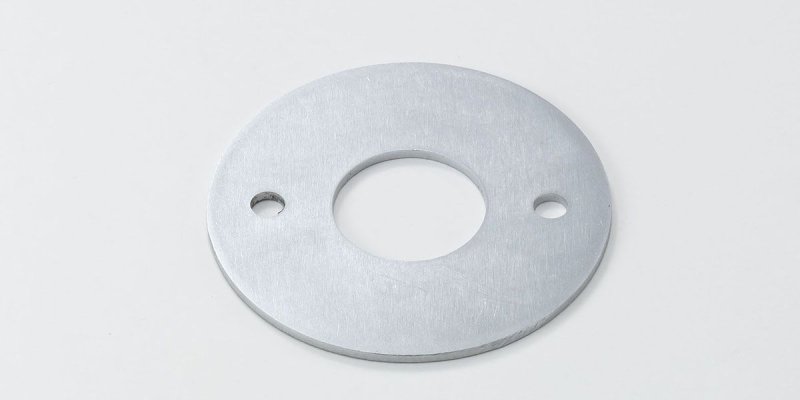

Included aluminum dinner protects the motor from dust and effective heat dissipation, particularly on temperature of summertime competition.

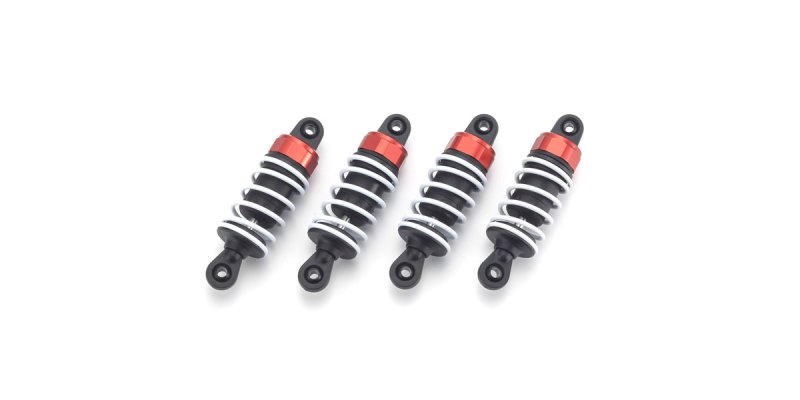

Oil shocks and springs optimize the front-rear geometric protection, delivering both light handling and accurate control. (Silicone oil the shocks comes individually)

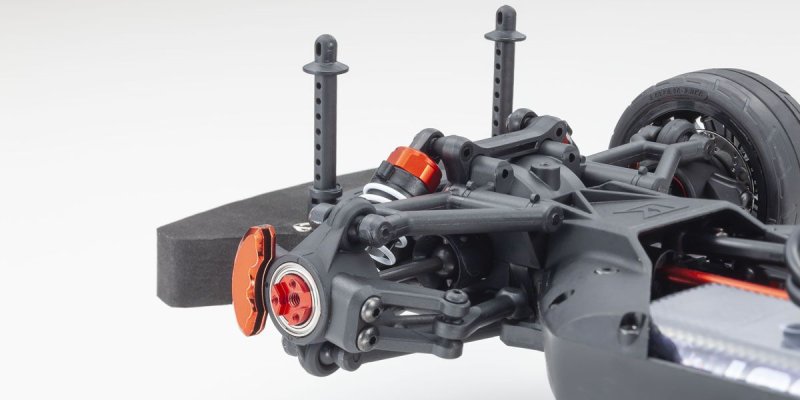

Bump guide and scrub radius, both factors along with the best affect maneuvering, have already been optimized within the front suspension system. Interchangeable front-rear and left-right hub businesses improve elements effectiveness and upkeep.

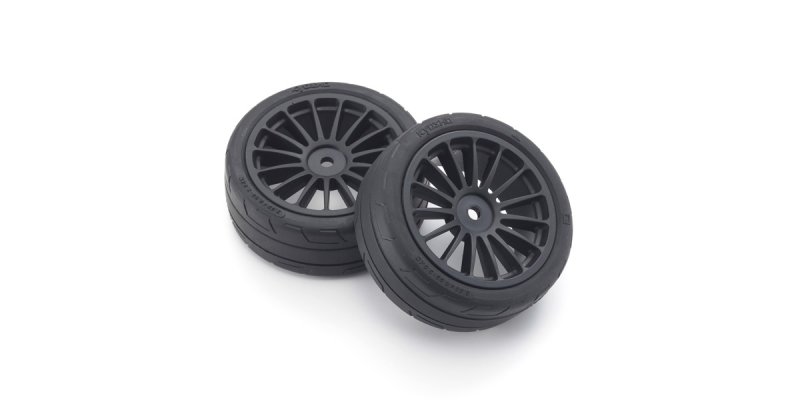

Original low-profile semi-slick pattern tires and internal sponge (FAT701M) match 15-spoke black colored colored tires for enhanced rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground approval 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: ?66mm x 25mm/R:?66mm x 25mm
- Gear Ratio 6.54:1
- Total storage area fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40% pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- Transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human anatomy)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width body)
- Body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO RUN
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended things No.82138/82151
- 540-550 program motor *Recommended services and products No.37031/37032
- ESC suitable for engine used(Size:L36xW32xH23mm or less)*Recommended items No.37051
- Survo *Recommended services and products No.82273
- Battery charger
- Battery for framework suitable for ESC used(SIze:L145xW47xH25mm or less)*Recommended services No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended items No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended products and services No.96162
- Silicone OIL(for Diff)*Recommended services and products F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate human anatomy
