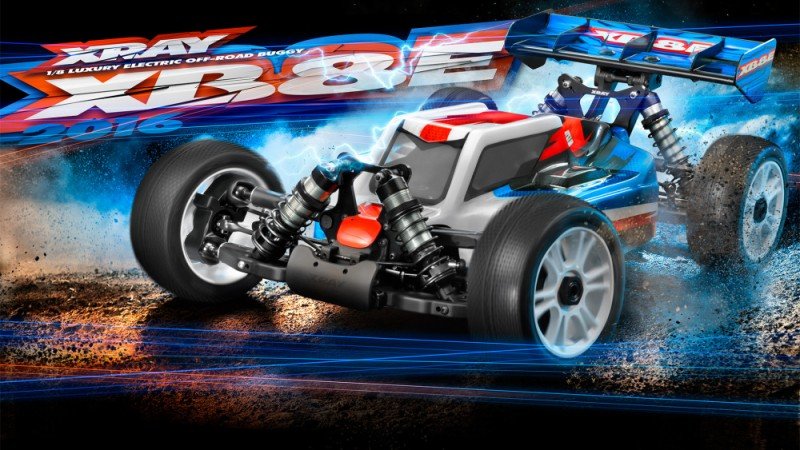

XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car [XR-350153]

Price:

£527.44

Brand:

XRAY

Model:

XR-350153

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

alt="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350153 XB8E 2016 Specs - 1/8 Luxury Electric Off-Road Car"

Description

Dimensions

Length: 500mm
Chassis size: 399.5mm
Wheelbase: 322~328mm
Width: 310mm
Weight: 2014g
Approximate operating fat: 3450g

Chassis

Chassis: 3mm CNC-machined Swiss 7075 T6 hardcoated aluminum
Receiver tray: CNC-machined 2.2mm graphite
Radio instance: Composite
Front top deck: CNC-machined 2.5mm graphite
Central diff top deck: CNC-machined 2.2mm graphite
Braces: Composite braces (front side part / back)

Suspension

Suspension: Pivot ball completely adjustable suspension
Rear suspension system system: Lower H-arm with adjustable top camber link
Front suspension system system: Lower H-arm with adjustable top camber website link A-arm
Rear upright: Composite with double arm mounting and 2 paid off roll center jobs and upper aluminum meal with 3 top roll center jobs
Shocks: Big-bore shocks with different shock pistons featuring Delrin pistons
Shock towers: Front & rear 4.0mm alu

Drivetrain

Type: Full-time shaft-drive 4WD w/ center differential
Primary: metal spur gear / pinion
Drive shafts: HUDY Spring metal CVD drive shafts
Central shafts: HUDY Spring metal CVD drive shafts
Differentials: Sealed, 6 gear, silicone-filled
Bearings: Rubber-sealed

Gearing

Pinion: 14T front part / rear
Crown gear: 46T front / rear
Pinion gear: not included (optional 12T~17T)
Spur gear: 46T
Primary ratio: 3.33
Final gear ratio: 11.79

Body, tires, wheels & misc.

Body: XRAY XB8'16 body
Tires: not included
tires: maybe not included, standard 17mm hub

Modification possibilities:

Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, paid down & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat stability

Goods maybe not included:

Electrical motor, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal product for many peanuts and turnbuckles, Set-up Book

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
