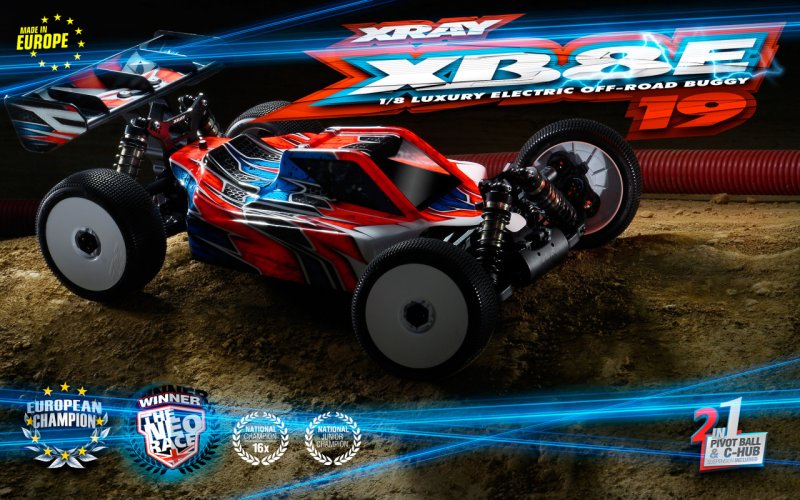

XRAY 350156 XB8E 2019 Specs - 1/8 Luxury Electric Off-Road Car  [XR-350156]

XRAY XB8E'19

• All-new framework with a rise of area between front tires and component guards, unique positions for straight back brace for improved framework flex characteristics and chamfered front edges on the cheap dust pick-up

• All-new framework design is currently completely compatible between XB8 & XB8E platforms

• All-new 40per cent lighter wing mount with super low CG along with significantly less fat behind a corner suspension system system dramatically improves managing faculties of vehicle and featuring all-new construction allows more flex besides features groundbreaking more optimized wing mounting positions

• All-new backside brace between wing mount and rear framework brace prevents back gearbox breakage during effects besides practices the transfer of capacity to various some the chassis

• All-new fat transfer from wing towards center with this automobile with minimal stress in regards to the right back diff bulkhead

• All-new back human body holder

• All-new back surprise tower features two lines of shock absorber mounting roles and so the updated design allows to complement groundbreaking wing mount and gearbox brace

• All-new harder right back paid off arms for increased component protection and improved durability in hot conditions

• All-new more powerful & strengthened steering ball joints for increased reliability

• All-new composite graphite shims between steering ball and nut guarantees free procedure of pivot balls even yet in extreme dusty conditions

• All-new improved diff O-rings to obtain additional precise differential sealing

• All-new softer shock membranes for enhanced surprise performance in bumpy conditions

• Rear CVD drive shafts for increased straight back traction

• New 2.6mm back sway club for increased traction

• All-new exhaust mounting cable with improved fit

• All-new more powerful brain screws for diff bulkheads for more reliable

• High-speed human anatomy for improved control on high-speed tracks  & with a rise of rotation in tight corners

Chassis

• CNC-machined framework made from 3mm top-quality Swiss 7075 T6 aluminum
• Strategic machining for ultra-light weight and uncompromised energy & rigidity
• XRAY Multi-Flex Technology
• Chassis design totally appropriate between XB8 & XB8E platforms
• Engine parallel with framework centerline, center diff placement for straight-line main drive shafts
• Countersunk screw holes on framework base for smooth underside
• Chamfered front edges on framework at a lowered cost dust pick-up
• Pre-drilled holes for extra balancing weights
• Pre-drilled centerline holes to be utilized with HUDY Chassis Balancing Tool
• 1-piece gadgets arranged is compact and easy to remove
• Side guards for better protection and enhanced traction
• Chassis braces for increased flex, better traction, and reduced amount of vibration from suspension
• Rear brace between wing mount and right back framework brace stops back gearbox breakage during impacts and moves the transfer of power to different some the chassis
• Large, easy-access, molded radio box
• Super strong diff bulkheads
• Strong mind screws for diff bulkheads for better dependability
• Composite top deck with optimized flex which results in increased traction and enhanced steering characteristics.
• Connecting link between throttle servo and radio field, for reduced amount of vibrations to chassis and more accurate throttle & stopping system control.
• Premium Swiss 7075 T6 shock towers.
• Rear shock tower features two lines of surprise absorber mounting functions

Motor & Clutch

• High-grade, CNC-machined extensive aluminum engine mounts for greater reinforcement concerning the framework in to the longitudinal method, minmise framework bending after jumps
• High-torque clutch for smooth and constant power transfer at high RPM
• Swiss 7075 T6 aluminum flywheel has a tiny diameter, increased fat for smoother and even more balanced engine operation
• Hard Swiss 7075 T6 aluminum clutch shoes allow smoother engagement
• Extra-tough Hudy Spring Steel™ flywheel nut
• Smooth-flowing, efficient 2-part atmosphere filter
• Extra-strong gas tank created from unique composite mixture features a floating rock filter and inside baffles to be sure constant fuel supply
• Fuel tank mounting with synthetic grommets to soak up vibration

Brakes

• Well-proven, superior stopping system for strong, accurate and dependable stopping performance.
• Laser-cut, precision flat-ground steel braking system disk is hand-ground for true, wobble-free rotation
• Special high-grip stopping system pads arranged in laser-cut stopping system plates
• Rigid, high-precision machined stopping system cam articles

Drivetrain

• Conventional shaft-driven 4WD down road drivetrain
• Large amount front & rear gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
• Large amount main differential with adjustable oil viscosity featuring large 46T spur gear with standard 13T engine clutchbell
• Front universal drive shafts offer less opposition into the front side at maximum steering angle.
• Rear CVD drive shafts for maximum straight back traction
• Front & rear primary CVD drive shafts
• All drive shafts made from HUDY Spring Steel
• Central spacious & strong outdrives function protective synthetic footwear, dense 3mm pins, and a protective locking ring
• Ultra-lightweight 17mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full number of 24 high-speed, greased, blue-sealed ball-bearings verify maximum effectiveness

Differentials

• Large volume high accuracy front side side, primary, and rear gear differentials Rubber-sealed composite differential housings with strengthened interior diff gears with an increase of teeth and enhanced enamel profiles
• Differential inside gears created from forced steel, heat addressed, and machined for ultra high accuracy and smooth operation
• Super-lightweight diff outdrives machined from HUDY Spring Steel
• Easy using center differential
• Center diff housing is sized to allow for optional spur gears
• Differential main gears made from HUDY Gear Metal

Suspension

• Longer straight back hands cause the automobile more straightforward to drive in a large amount track conditions
• Harder backside reduced arms increase part security and improves durability in hot conditions
• Pivot ball suspension system system system concept to quit binding in dusty conditions, while ensuring stable trip height atlanta divorce proceedings solicitors traction conditions
• Ultra-robust pivot ball suspension system system with built-in suspension system geometry modification; different kingpin meals being the sole optionally-available tuning parts
• Integrated Suspension system Settings (I.S.S.) for fast & easy suspension system system geometry setting
• Suspension hands with optimal size, degree, freedom, geometry of suspension system system points, and material traits.
• Suspension hands is the outcome of significant design knowledge and exhaustive testing
• Exclusive composite mixtures developed in-house by XRAY give you the perfect stability between reliability and satisfaction, rigid enough to offer a responsive feel yet soft adequate to endure extra-long main occasions and impact
• Extra-strong & robust front side top arms care for pivot ball suspension system.
• Front top pivot balls are coupled with metal threaded component for maximum energy; aluminum ball is machined from premium Swiss 7075 T6 and of course hardcoated for extended lifespan
• 2-pivot ball, super-lightweight composite steering obstructs
• Trailing-axle steering obstructs offer a substantial managing enhancement generally in most track conditions, making the automobile safer to drive and supplying increased ahead traction
• Turnbuckles created from unique mixture of HUDY Spring Steel™ especially formulated for turnbuckles
• Front & straight back anti-roll pubs made of spring steel material
• Rear 2.6mm sway club increases back traction with this automobile

Steering

• Servo saver moulded from graphite item which will be more resistant and efficient in dusty conditions
• Redesigned steering pivot balls to eradicate wheel lock
• Dual-arm steering system with adjustable Ackermann
• Stronger & strengthened steering ball bones for increased reliability
• Composite graphite shims between steering ball and nut guarantee free procedure of pivot balls even yet in extreme dusty conditions
• incorporated, efficiently adjustable servo saver
• Swiss 7075 T6 aluminum steering plate
• Quick & easy Ackermann and bump steer adjustment
• HUDY Spring Steel™ turnbuckles

Shocks

• Big-bore, long-stroke shocks for ultimate reliability and performance
• Shock numbers are externally hardcoated
• Shock human anatomy outside threading for fast & easy springtime preload adjustment
• Longer rear shock body for improved effectiveness in rough, bumpy conditions
• Robust 3.5mm super-smooth polished surprise shafts
• Longer shock shafts & surprise collar for increased downtravel
• Ultra-fine shock protective rubbers for superior sealing against dirt
• Ultra-precise big-bore 6-, 8- and 10-hole surprise pistons produced from Delrin™ item for smooth procedure and durability
• Specially-formulated artificial shock membrane layer guarantees equal damping
• Shock membranes from softer item for improved shock performance in bumpy conditions
• Lower shock set up features multiple top-quality silicone O-rings for smooth, free, leak-free operation
• Front & backside surprise springs work many modern & linear rates; the springs are dramatically modern, but under larger compression they change characteristics to be linear to offer excellent feeling & feedback atlanta divorce attorneys different track conditions.
• Specially-designed shock springs are especially built to complement the big-bore shocks
• Shock springs are by hand determined, chosen and matched into pairs to ensure correctly equal size and damping characteristics
• HUDY Premium Silicone natural oils are stated in countries in europe by a specialized premium silicone oil maker. Each batch of premium oil is laboratory tested and calibrated to ensure the maximum consistency and quality batch-to-batch. Based on the industry-standard cSt rating, the natural oils could be fairly simple to recognize, adjust, and feel.

Body & Wing

• High-speed human body for improved management on high-speed songs  & with extra rotation in tight corners
• top-notch Lexan™ human body totally fits the automobile and works in many track conditions
• Composite component guards protect the auto, muffler, and vehicle's gas tank from component hits. The medial part guards totally fit the chassis and seal against dirt. Ribs on staying side guard protect the vehicle's gas tank from muffler heat.
• Stylish, effective, and strong right back wing is constructed of strong distinctive composite combination, built to survive severe abusive and extreme crashes while keeping its shape
• 40per cent lighter wing mount with super low CG with a lot less fat behind the trunk suspension system quite a bit improves managing traits associated with car and featuringconstruction that allows more flex too features more optimized wing mounting jobs

Assembly & Support

• Premium 3D full-color Instructions & supplementary sheet
• Exclusive Virtual Online Setup Sheet database with countless setup sheets for battle songs around the world
• Premium, unmatched XRAY online assistance

Adjustment Possibilities:

The XB8 features fully-adjustable front side and right back suspension system geometry. For quick & effortless modification, we recommend using set-up tools and add-ons from HUDY, the whole world leader of RC tools.

The considerable and impressive range of modification possibilities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Lower roll center
• Upper roll center
• Roll center positions
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front component and right back diffs
• Adjustable XRAY Multi-Flex

All demands are inclined to alter without past notice. Pre-production model is shown, last requirements may significantly vary. In a few pictures optional elements can be shown. All option elements are not included and must be purchased separately. The color of some aluminum elements may vary from kit to kit and several associated with kits may well not include every one of the orange or black components as shown. Several of the additional components or choice elements may possibly not be provided by when on orange or black colored color as shown. A number of the photos reveal colored stickers on wing and radio tray, they're perhaps not within the kit and generally speaking are located in pictures only for marketing purposes. The rushing human body in the package is clear and unpainted.
