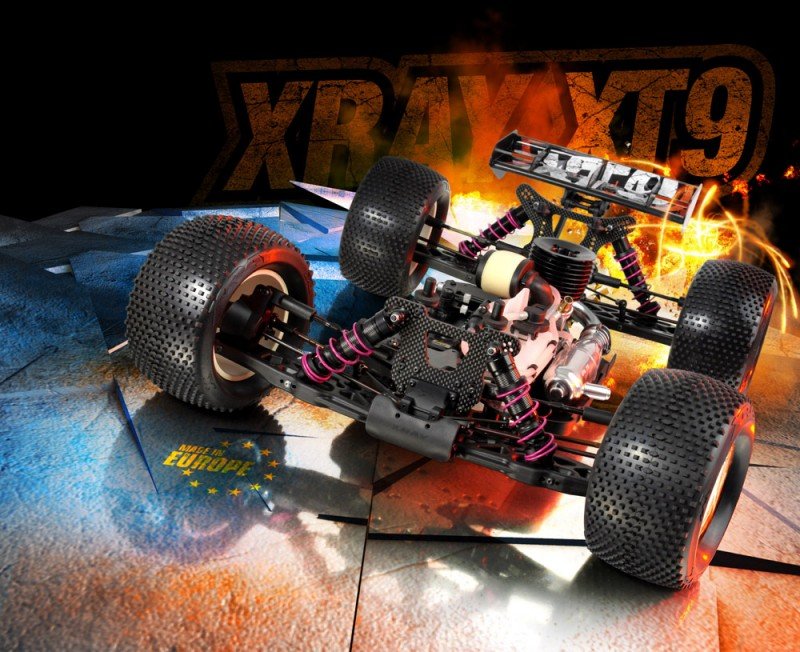

XRAY 350202 XT9 - 1/8 Luxury Racing Truggy  [XR-350202]

Dimensions

• Class: 1/8 nitro truggy
• Length w/o human anatomy: 574 mm
• Chassis size: 452 mm
• Wheelbase: 376-388 mm
• Width: 428 mm front side; 430 mm straight back
• body weight: 2333 gr
• Ready-to-run fat: approx. 3681g

Chassis

• Chassis: CNC-machined 3.0 mm Swiss 7075 T6 aluminum
• Shock towers: machined laminated carbon graphite (front side + rear) with numerous surprise mounting and roll center positions
• Radio tray: composite one piece

Drivetrain

• Type: Full-time shaft-drive 4WD w/ center differential
• Drive shafts: CVD drive shafts – Hudy Spring Steel™
• Final drive ratio (FDR): 15.88:1
• Differentials: Sealed, 6 gear, silicone-filled
• Front differential: 43T
• Center differential: 48T
• Rear differential: 43T
• Clutch bell: 13T
• Clutch: Aluminum 3-shoe

Suspension

• Suspension: Adjustable suspension system system with preset geometry
• Rear suspension: Lower H-arm with adjustable top camber link
• Front suspension system system: Zero Kingpin suspension system with key adjustable caster
• Rear upright: Composite with twin supply mounting and 3 roll center jobs
• Shocks: Big-bore, long-travel shocks, machined aluminum, oil-filled, coil-over shocks

Adjustability

• Caster: adjustable front part + rear
• Camber: adjustable front side + rear
• Toe: adjustable front part + rear
• Kick-Up: adjustable front component
• Anti-squat: adjustable backside
• Ride height: adjustable front part + rear
• Downstops: adjustable front side + rear
• Track-width: adjustable front + rear
• Front anti-roll pubs: Wire design 2.4 mm
• Rear anti-roll club: Wire design 2.8 mm
• Roll center: adjustable front side + right back, upper & lower
• Bump steer: adjustable front side component
• Wheelbase: adjustable front side & straight back
• Ackermann: adjustable front
• Shocks: Adjustable damping, preload, mounting jobs

Equipment

• Body: XRAY XT8 human anatomy
• Wheels: XRAY Racing Dish Wheels
• Tires: XRAY Thrax low-profile tires with foam inserts
• Fuel tank: 150cc capability with hypertonic tank lid and inside stone-type filter and vehicle's gas tank force limitation with 1-piece profiled seal
• Instructions: guide with 3D pictures (44 pages)
• packaging: carton industry with synthetic bags with parts
• Additionally included: Authentication Certificate, set-up sheet, components list & exploded view, decals
• Not included: radio system (transmitter and receiver), specific transponder, steering & throttle servos, engine, manifold & exhaust, beginner industry & novice industry battery pack, receiver battery, glowplug igniter, battery power charger, Lexan® paint, model R/C vehicle gasoline (nitromethane), tape, CA glue, bearing oil, medium-grade (blue) threadlock, tools, Set-up book: 2-color Set-Up Book (39 pages) - perhaps not included
