In regards to the U.S. M3 Tank
The M3 light tank was designed with four VVSS bogies, two per part, a front part mounted sprocket and a rear, trailing idler wheel. The trailing increased ground stress, therefore permitting a modest armor enhance. Front armor ended up being 38mm, while part armor wound up being 25mm. It was certainly not sufficient, but it ended up being all chassis could handle. Armament contains a bow mounted .30, two sponson mounted .30 MGs, a 37mm M5 primary tool with a coaxial .30 MG, and a .30 MG on an anti-aircraft mounting during the turret part.
Unfortunately, the M3 was an outdated design by European terms straight away. The classes through the Spanish war had been interpreted in a different way in European countries. This led to automobiles like French Char B1, the German PzKpfw III and IV, along with the Russian T34. All of these had greater security and armament compared to the M3.
Stuart Versions
There have been several variants associated with M3 light tanks. First, there have been four kinds of turrets. The original turret finished up being the D37182 turret. This is a slab-sided, hexagonal turret. It utilized riveted construction and had an octagonal cupola with vision slits. It turned out discovered that devoted MG fire from the turret caused the rivets to split and travel around inside turret. So that the very same turret design had been taken and welded together. This became the D38976 turret. This turret will come in the Academy M3 'Honey' kit.

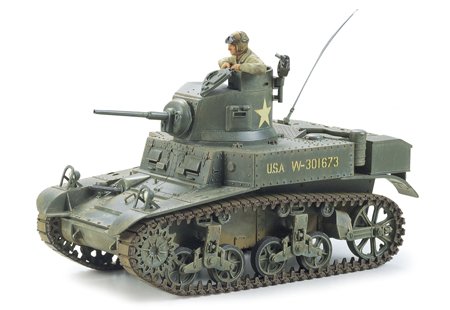

a third turret type, referred to as D39273, finished up being introduced in November 1941, and was effortlessly distinguished from early in the day turrets by its curved, horseshoe form and a commander cupola. The first design needed a rotating periscope but this is not fitted. Vision slits round the cupola supplied restricted vision. This turret comes in to the Tamiya M3 kit.
The 4th turret type, D58101, resembled the D39273 though without the cupola, and ended up being introduced in early 1942. It had two roof hatches and a pericopic sight the commander. This turret is within the Academy 'M3A1' kit.
The M3 had been powered by the Continental W-670 radial motor. But this motor have been in addition needed for aircraft, therefore other energy sources was in fact looked for. In September 1940, the usage of the Guiberson T-1020 diesel engine was authorized. This engine had a somewhat different motor deck layout, with all the current pipelines for the environment filters running towards the motor grill, in the place of going into the hull close to the atmosphere filters. Tamiya supplies the Guiberson design on their tank. The diesel engined automobiles aren't popular inside army, as a consequence of dependability and logistic problems of operating gas and diesel driven cars together. The Marines had less dilemmas, as diesel gasoline was ideal for their landing art.
