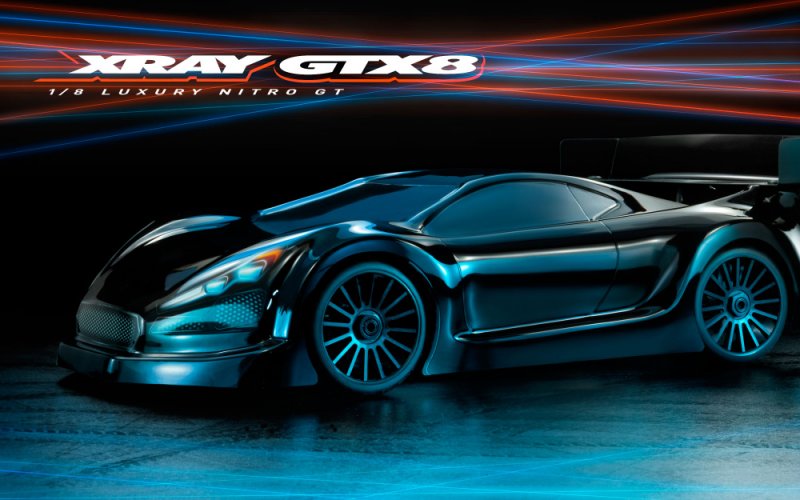

XRAY 350501 - Xray GTX8.2 - 1/8 Luxury Nitro On-road GT Car  [XR-350501]

XRAY GTX8

Chassis

• CNC-machined framework produced from 3mm top-notch Swiss 7075 T6 aluminum
• Strategically machined for ultra-light fat and uncompromised power & rigidity
• Pre-drilled centerline holes to be used with HUDY Chassis Balancing Tool
• 1-piece, compact, easy-to-remove gadgets assembly
• Front & backside framework braces for adjusting framework tightness & flex
• Large, easy-access, molded radio box
• Super-strong diff bulkheads household the differentials and gives mounting points for suspension mounts and surprise towers
• Extra-thick, premium-grade graphite surprise towers consist of many surprise mounting positions
• Connecting website link between throttle servo and radio industry, for reduced total of vibrations to chassis and much more accurate throttle & braking system control.
• Compact front component foam bumper produced from high-resilience, lightweight foam
• Front upper bumper owner & paid down composite bumper are molded from rigid composite to withstand hard crashes

Engine & Clutch

• High-torque clutch for smooth and continuous energy transfer at high RPM
• Swiss 7075 T6 tiny, lightweight clutch footwear allow smoother engagement at high RPM
• Extra-tough Hudy Spring Steel™ flywheel nut
• Optionally-available softer & harder clutch springs
• High-grade, CNC-machined aluminum engine mounts
• Extra-large capability 150mm vehicle's gas tank crafted from unique composite combination features a drifting stone filter and interior baffles to make certain constant fuel supply
• Fuel tank mounting with plastic grommets to absorb vibration

Brake system

• Well-proven, superior stopping system for strong, precise and dependable stopping performance.
• Laser-cut, accuracy flat-ground steel stopping system disk allows fade-free braking
• Special high-grip stopping system pads create on laser-cut steel backing plates
• Rigid, high-precision machined brake cam articles

Drivetrain

• Conventional shaft-driven 4WD drivetrain
• Front & rear gear differential with adjustable oil viscosity featuring 46T top gears and 14T pinion gears
• Central 2-speed gearbox
• front part, right back, and main CVD drive shafts created from HUDY Spring Steel™
• Central bigger & stronger outdrives work protective plastic shoes, dense 3mm pins, and a protective locking ring
• Rubber-sealed composite differential housings with metal inserts.
• Pressed metal inside diff gears, heat addressed & machined for ultra-high precision and smooth operation
• Diff gears made from unique HUDY Gear Steel
• Super-lightweight, hardened diff outdrives produced from HUDY Spring Steel™
• Ultra-lightweight 17mm wheel hex drive hubs re CNC-machined from Swiss 7075 T6 black-coated aluminum
• Full musical organization of 27 high-speed, lightly-oiled, blue-sealed ball-bearings make certain maximum efficiency
• 2-speed transmission installed on a precision-manufactured, super-smooth layshaft made from tough HUDY shaft metal for 2-speed, that will be furthermore heat addressed for extra energy and durability.
• 2-speed gear adapter made out of hardened steel
• 2-speed gear adapter CNC-machined from Swiss 7075 T6 with 1-way bearing for super-precise and wobble-free spur gear mounting

Suspension

• Ultra-robust XRAY Pivot Ball Suspension XPBS™ with integrated suspension system system system geometry adjustment
• Integrated Suspension Settings™ (I.S.S.) for fast & effortless suspension system geometry setting
• Suspension fingers with optimal size, level, freedom, geometry of suspension system points, and item characteristics.
• Super-lightweight composite steering obstructs + rigid Swiss 7075 T6 kingpin plate
• Easily-settable kingpin meal provides either 0° or 7° angle
• Optional kingpin dishes available
• Ultra-tiny composite straight back uprights + rigid Swiss 7075 T6 mounting plate
• Extra-strong & robust front side top arms
• Exclusive composite mixtures developed in-house by XRAY offer perfect security between dependability and performance
• Turnbuckles produced from unique combination of HUDY Spring Steel™ specially formulated for turnbuckles
• Front & backside anti-roll bars constructed from spring steel product

Steering

• Dual-arm steering system with adjustable Ackermann
• Swiss 7075 T6 aluminum steering plate
• Quick & easy Ackermann and bump steer modification

Shocks

• Big-bore shocks for ultimate reliability and performance
• 18.5mm outer-diameter hardcoated shock bodies
• Shock human body outside threading allows fast & effortless springtime preload adjustment
• Ultra-precise big-bore 6-, 8- and 10-hole shock pistons made from Delrin™ product for smooth procedure and durability
• Shock springs are by hand calculated, selected and matched into pairs to make sure exactly equal size and damping characteristics
• HUDY Exclusive Silicone sebum are stated in europe, and each batch of is laboratory tested and calibrated to make sure the most persistence and quality batch-to-batch. In line with the industry-standard cSt rating, the oils is supposed become quite simple to find out, adjust, and feel.

Body & Wing

• XRAY self-designed GTX human body (optional) made from top-quality Lexan™ product features high-downforce areas for appropriate airflow and enhanced stability
• Molded wing struts (3) for additional durability and superior mounting
• High-strength wing
• Composite component guards protect the car, muffler, and gas tank from component impacts. The within guards completely fit the framework and seal against dirt.
• Optional graphite part guard braces allow really efficient and easy framework flex modification to modify the control for the automobile to different track conditions.

Assembly & Support

• Premium 3D full-color Instruction Manual
• Premium, unmatched XRAY on line assistance

Adjustment Possibilities:

The GTX features fully-adjustable front part and right back suspension system system geometry. For fast & effortless modification, we recommend using set-up tools and add-ons from HUDY, the entire planet leader of RC tools.

The considerable and impressive collection of adjustment opportunities includes:

• Caster
• Camber
• Toe
• Kick-up
• Anti-dive
• Anti-squat
• Ride height
• Downstops
• Track-width
• Roll centers
• Bump steer
• Wheelbase
• Ackermann
• Adjustable shocks
• Adjustable front side & back diffs

All requirements are at the mercy of modification without previous notice. Pre-production model is shown, last needs may slightly vary. In certain images optional elements could be shown. All choice components are not included and must certanly be purchased separately. And of some aluminum elements can differ significantly from kit to kit plus some from the kits may not consist of most of the orange or black colored colored elements as shown. Some of the free elements or choice elements might not be offered by the minute in orange or black colored colored colored color as shown. The racing body can be acquired just like an option also it's perhaps not contained in the package.
