Regarding the U.S. M3A2 Personnel Carrier
The half track first appeared as a normal device in World War II and offered as the primary employees carrier of U.S. and German armoured divisions. It adorned war histroy featuring its many variations and characteristic designs. As an accompanying vehicle of tank, it revealed its freedom fully.
There were big distinctions these in the middle of your U.S. and German half tracks. In the U.S. half track, motor power wound up being delivered also to leading axle and steering was made just through the front tires. To the German half track, the front tires had no stopping system, plus the car managed the way of travel by changing the angle with this front tires or by fractionally idling the sprocket wheel utilizing one component throught the internet website link in respect as steering angle ended up being under or higher 15 levels. These distinctions arose considering that the individuals in the us at first made their half track by changing the rear tires of a truck by songs, even though the Germans originally made theirs with the addition of tires towards front side of a full-track car to make its human anatomy much longer. Individuals in america created their half track as an armoured fighting car from the beginning. But the Germans utilized the identical framework both with regards to non-armoured vehicle and armoured drawback. Though it revealed desired performance on European roads, its mobility had been much restricted within the industry, especially in muddy places, as the leading tires weren't driven and so the motor could not offer enough energy.
It absolutely was grasped since World War ! that the tractive force of a vehicle with two right back axles would remarkably increase if tracks were fastened round its back wheels. Some nations had keep on their particular efforts to study and develop the half track, rear suspension system the songs being the primary item of the research. Under these circumstances, a Citroen-Kegresse half-track automobile succeeded in running through the Sahara Dessert, which renewed their passion for developing the half track.
In the us, the Ordnance Bureau of Department of Army started earnest research and growth of the half track in 1925 with regards to bought two Citroen-Kegresse vehicles from France. The P17 half-track tractor bought from France in 1931 had a really great influence regarding the United states designs and some tips connected with half track. Initial U.S. army half track was in fact the T1 experimental half-track reconnaissance car produced in December 1932 by Jos. Cunninghams, Son & Co., of Rochester, ny which was then developing the T1 experimental light tank. This brand new half-track vehicle has an open-top human anatomy and a better form of Citroen-Kegresse running gear.
By 1937, non-armoured half tracks, T1 - T9E1, for reconnaissance, hauling weopons, carrying employees and transporting product had been trial-manufactured by Cunningham, Linn, GMC and Marmon-Herrington. We had been holding designed to be properly used primarily by mechanised cavalry and artillery. The half songs T9-T9E1 trial manufactured by Marmon-Herrington were based on the framework of the Ford 1 1/2 ton 4 x 2 vehicle of model 1936 and combined front drive with rear-bogie tracks. These half tracks had kegresse type figures of full of faults. In meanshile, Marmon-Herrington, and something other maker jointly developed suspension system system for synthetic tracks of one-piece gear type produced by B.F. Goodrich. The suspension system system accomplished accomplishment in tests and have been employed by the Department of Defense. It afterwards became the primary suspension system system associated with the M2 and M3 half track show and additional the traditional gear on most U.S. half songs.
Realizing that the German mobile troops the blitzkrieg approaches to the start of World War II mainly contained complete and half-track automobiles, the Us residents, who currently had the suspension system with a high efficiency, began, manufacturing half songs in large amounts. There have been outstanding range American half songs. Their fundamental types mass-produced and earnestly used had been the annotated following:
Half Track M2: initial production half track formally employed by the U.S. Army. In 1939, an experimental vehicle called "T14 Half Track APC" was produced by Diamond T. motor in line with the human anatomy of a wheeled armoured vehicle that was vehing utilized by armoured cavalry. In September 1940 to 1943, Autocar produced 2,992 and White Motor business 8,423, which made a total of 11,415.
Half track M2A1: A modified form of the Half Track M2. At the top right from the motorist seat, it carried a musical organization mount M45 (categorised as "Pulpit") for a 0.50-inch (12.7 mm) Browning heavy-barrelled unit weapon M2. From October 1943 to March 1944, an entire of 1,643 have been manufactured.
Half Track M3: This was designed to carry workers and material of numerous products in armoured divisions. Autocar and Diamond T. Engine Vehicle Business produced an overall of 12,499 in synchronous with the Half Track M2. The M3 and M2 were supplied towards Allies like the Soviet Union and Britain including to your U.S. Army.
Half Track M3A1: A modified form of the M3. Such as the M2A1, it carried an anti-aircraft ring mount M45 (for a 0.50-inch Browning) within the top right of this motorist seat. From October 1943 to March 1944, a total of 2,862 were manufactured by White, Autocar and Diamond T. like M3, the M3A1 ended up being found in World War II by devices in U.S. armoured divisions as an armoured need automobile, armoured ambulance vehicle, armoured radio car, and armoured general function vehicle. The M2A1 ended up being also employed by Uk armoured troops. Avariation with a recovery jib on leading ended up being additionally used by the British as an armoured data recovery automobile.

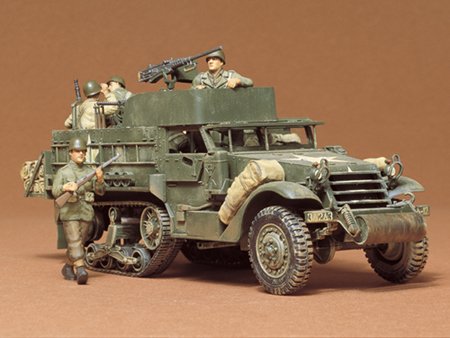

The M3A2: The final manufacturing version of the M3. This is an M3-based "general function car" designed to be properly used instead of the present M2, M2A1, M3, and M3A1. In July, 1943, a model named "T29" ended up being finished and, in October 1943, accepted for manufacturing once the Half Track M3A2. This is a much polished car. From 1944 in, the M3A2 saw active service because the main car of armoured infantry in armoured divisions. The M3A2, like M2 and M3 show, had been a light armoured combat vehicle with open-top human body, that hard-faced armour plates was welded or bolted. Armour had been 6.25 - 12.7 mm detailed, the nose associated with the vehicle being protected with relatively dense metal dish. The M3A2 accommodated 5 - 12 guys i.e. one fully prepared platoon.
The M3A2 carried the typical weapons comprising an anti-aircraft 0.50-inch Browning heavy-barrelled device gun M2, 0.30-inch Browning unit weapon M1919A4, 2.36-inch rocket launcher (bazooka) M9 or M9A1, 0.45-inch submachine gun M3, twelve 0.30-inch rifles and twelve Garand rifles. In stowage containers within the vehicle, another ammo had been carried: 330 rounds of 0.50-inch machine-gun ammo, 2,000 rounds of 0.30 ins machine-gun ammunition, 6 A/T rockets M6, 24 mines M1, 48 hand grenades and 180 rounds of 0.45 inches machine-gun ammo. When necessary, extra machine-gun ammunition(600 rounds the 0.50-inch Browning and 6,000 rounds for the 0.30 inches Browning) had been carried instead of two seats.
The M3A2, such as the M2 and M3 show, had a White 160 Ax, 4-cycle, show 6-cylinder, watercooled, gasoline motor providing 143 hp/3,000 rpm. Engine energy wound up being transmitted through the dry-type single-plate clutch, constant mesh transmission with 4 ahead and 1 reverse rates, 2-speed transfer situation and banjo-type rear axle toward sprocket tires. The car used all-wheel drive system where the front axle associated with split type received power through the transer case if necessary. The car carried 227 litres of fuel and gas usage ratio was in fact 1.49 km/l. Maximum cruising range was 320 kilometer and maximum speed on good road reached 72 km/h.
Front suspension ended up being exactly the same in construction as that of a typical car. Back suspension system had these construction: Two rows of four road tires - every wheel had a plastic tyre, 305 mm in diameter and 105 mm in width, that has been peculiar to American half songs - was indeed linked through links towards the bogie installation eequipped with right volute springs. The belt-type plastic track was supported by top rollers near the the surface of the bogie construction by the idler wheel serving as back human body help. The sprocket wheel associated with guides in the middle associated with the track to push it.
From might 1941 to 1945, america produced up to 45,044 half tracks such as the officially designated variants and experimental variations of self-propelled mortars, self-propelled cannons, self-propelled howitzers, self propelled multi-barrelled firearms, etc. along with the M2 and M3 show. This total was comprised the annotated following: 37,164 workers providers and 7,880 self-propelled weapons. These automobiles were found in all theatres of war by 16 armoured divisions, separate mechanized cavalry groups, separate armoured teams and some devices in infantry divisions.
In the case of the M3A2, 448 automobiles was utilized per armoured division within approximate cost the following: 72 every single of three armoured infantry battalions; 20 every single of three rifle companies; 11 towards headquarters; 11 towards head office company; and 1 towards supplier. Details of automobile allotment tot he rifle companies inside armoured infantry battalion about the armoured unit in 1944 are tabulated the following:
The rifle squad car accomodated the motorist and nine squad users composed of just one single squad leader, one connect squad leader, five riflemen, one automated rifleman and another ammo provider. The platoons leader's vehicle carried 12 men like the platoon frontrunner and their sergeant. The mortar squad automobile accommodated eight men comprising one squad frontrunner, two gunners, two ammo providers, two riflemen and another motorist. The anti-tank squad vehicle carried seven males comprising one squad leader, two gunners, two ammo companies, one riflemen plus one driver.
Through Korean War upon, america gradually changed their half songs with fulltrack M113 show cars. Today, three years after the end of World War II, armies of many nations such as the self-defense Forces of Japan stay utilizing half songs as fighting cars. We frequently receive the news these half tracks were running about into the Mideastern war, Vietnam War and riots in south usa. In america, but these vehicles are merely held in museums or by enthusiasts.
