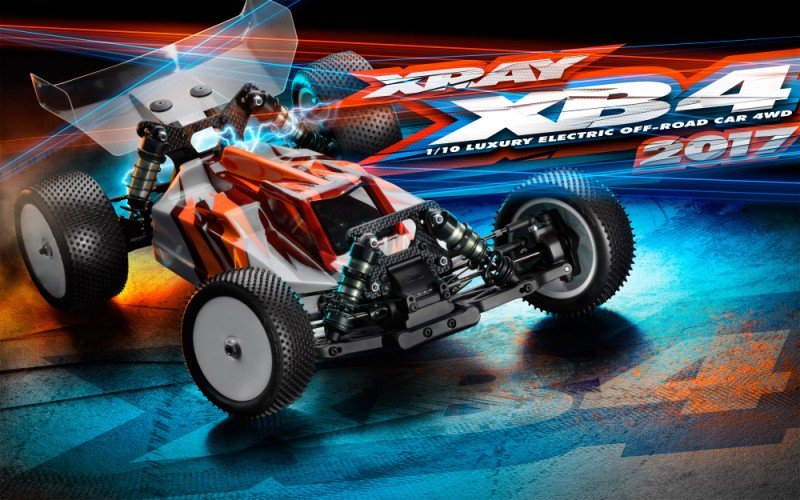

XRAY 360004 XB4 2017 Specs - 4WD 1/10 Electric Off-Road Car  [XR-360004]

Dimensions

• Class: 1/10 electric 4WD off road car
• Width: Adjustable 245-250mm
• Length: 350 mm
• Wheelbase: Adjustable 279-281 mm
• Weight: 850 g
• Ready-to-run fat: 1650 g

Chassis

• Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0mm
• Front upper deck: Machined 2.0 mm laminated carbon graphite

Suspension

• Suspension: Adjustable suspension system system system via built-in Suspension System I.S.S.
• Rear suspension: Lower supply with adjustable top camber link
• Front suspension: Lower supply with adjustable upper camber hyperlink with 9° caster blocks
• Rear upright: Composite 0° toe-in with double arm mounting and 3 roll center functions
• Shocks: Big bore membrane layer free surprise absorbers with Delrin pistons
• Shock towers: Machined 3.5 & 3.0 mm laminated carbon graphite (front part & backside) with multiple shock mounting and camber hyperlink roll center jobs

Drivetrain

• Type: Full-time shaft-drive 4WD
• Primary: Pinion / spur
• Drive shafts: HUDY Spring metal™ CVD drive shafts
• Central shafts: HUDY Spring metal™ Direct Connection Shafts™
• Differentials: Sealed gear differential, 6 gear, silicone-filled
• Slipper clutch: Adjustable 3-Pad
• Bearings: Rubber-sealed high-speed bearings

Gearing

• Primary ratio: 1:2.5
• Differential pinion: 14T front part / rear
• Differential top gear: 35T front / rear14
• Spur gear: 81T
• engine pinion: not included

Geometry

• Camber: Adjustable front component + right back
• Front Caster: 9° fixed +7~11° caster in framework = 16°~20° total caster range Optional 6° fixed +7~11° caster in framework = 13°~17° total caster range Optional12°static +7~11° caster in chassis = 19°~23° total caster range
• Toe-in: Adjustable front side + right back
• Downstops: Adjustable front part + right back
• Front kick-up: Adjustable 7° ~ 11°
• right back anti-squat: Adjustable 1° ~ 5°
• Anti-roll bars: 1.3mm front part / 1.2mm rear
• Ackermann: Adjustable
• Bump steer: Adjustable
• Steering: Centrally-positioned double steering system

Body, Tires, Wheels & Misc

• Body: XRAY XB4 body wide V2
• Tires: maybe not included
• Wheels: XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

• Standard modification: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
• guidelines: Full-color manual with 3D pictures (40 pages)
• Set-up guide: maybe not included. HUDY 2-color off road set-up guide (40 pages) can be installed inside “Download part“ plus it shows 1/8 down road models in photographs contained within it. Even so the methodology and set-up concept are an identical for several contemporary 1/10 down road automobiles.
• Packaging: Carton package with plastic bags with parts
• Additionally included HUDY Graphite Grease, Silicone natural oils, Authentication Certificate, Parts list & Exploded view, Decals

Things maybe not Included

•   Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all peanuts and turnbuckles alongside tools
