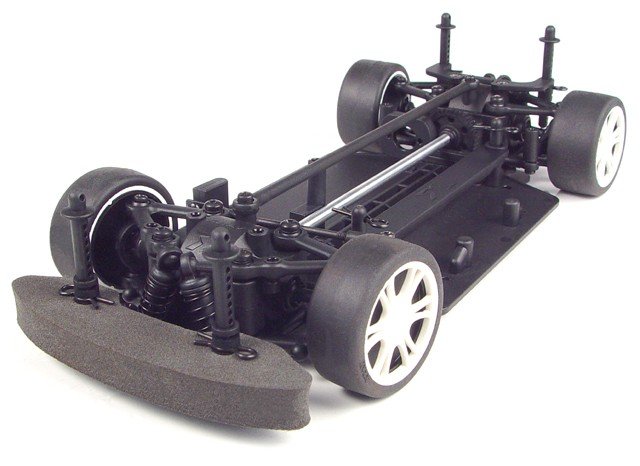

XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car [XR-380000]

Price:

£108.98

Brand:

XRAY

Model:

XR-380000

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"

Description

Dimensions

Class: 1/18 electric micro car
Front Width: adjustable 98~101 mm
Rear Width: adjustable 104~107 mm
Length: 215 mm
Wheelbase: 149 mm
Weight: 175 g
Ready to run fat: 390 g

Chassis:

Chassis: composite CAD-designed chassis
Upper deck: composite center linkage
Body: 150 mm micro human body (included)

Drivetrain:

Type: shaft-drive 4WD
Drivetrain: aluminum primary driveshaft
Primary drive: pinion/spur
Drive ratio: 1:2.5
Drive shafts: composite front side + straight back
Differentials: composite gear differentials, front differential adjustable
Bearings: 16 high-speed ball-bearings

Suspension system:

Front: fully separate
back: entirely independent
Dampening: friction-type coil-over shocks

Geometry:

Camber: front/rear: -1° (preset)
Caster: 12° (preset)
Front Toe: toe-out 0.5° (preset) (adjustable option)
back Toe: toe-in 4° (preset) (adjustable option)
Downstops: adjustable front + rear
Anti-roll pubs: optional front
Wheelbase: 149 mm

Others:

Wheels: XRAY micro tires, adjustable track-width
Tires: 40SH front/rear (included)
guidelines: full-color manual with 3D images
Packing: carton field with 8 synthetic bags with parts
Additionals included: certificate, elements list, decals, Hudy 3.0mm screwdriver, XRAY catalog
Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery pack (5 mobile), battery power charger

Remark :

Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
