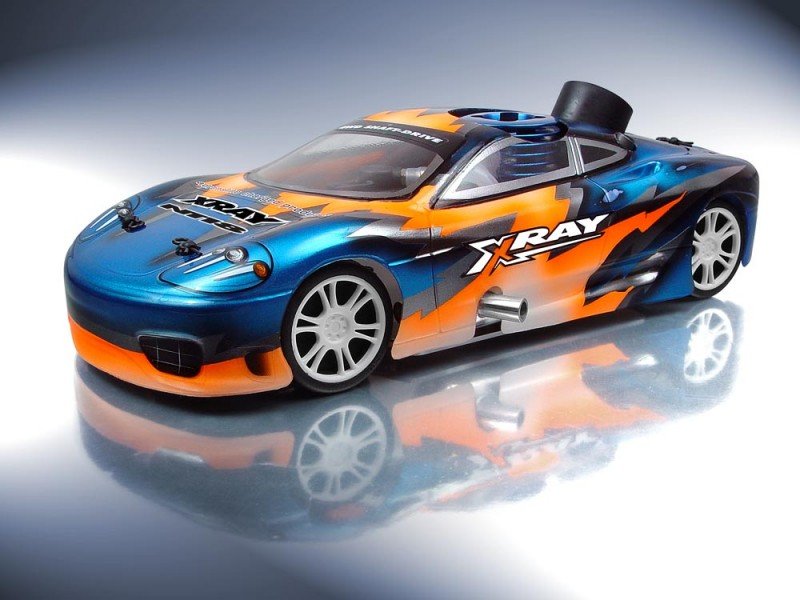

XRAY 380200 NT18 with Engine & Muffler  [XR-380200]

Dimensions

• Class: 1/18 nitro micro car
• Front Width: adjustable 98~101 mm
• Rear Width: adjustable 104~107 mm
• Length: 220 mm
• Wheelbase: 150 mm
• Ride Height: 3~4 mm
• Ready to operate fat: 530 g

Chassis:

• Chassis: Swiss T6 7075 CNC-machined framework
• Body: 150 mm F360 micro human anatomy (included)

Drivetrain:

• Type: shaft-drive 4WD
• Drivetrain: aluminum main driveshaft
• Internal ratio: 1:2.5
• Drive shafts: composite front component + right back
• Differentials: composite gear differentials, front differential adjustable
• Bearings: 18 high-speed ball-bearings
• Brake system: adjustable braking system; laser cut, hand-ground metal braking system disk; Ferodo brake pads

Suspension system system:

• Front: completely separate
• Rear: totally independent
• Dampening: friction-type coil-over shocks
• Servo saver: included (rugged)

Geometry:

• Camber: front/rear: -1° (preset)
• Caster: 12° (preset)
• Front Toe: preset toe-out 0.5° (adjustable option)
• Rear Toe: preset toe-in 4° (adjustable option)
• Downstops: adjustable front component & straight back

Engine

• Engine effective 0.8cc motor
• engine mounts CNC-machined aluminum engine mounts
• Carburetor aluminum autumn carburetor
• Muffler refined muffler
• Fuel tank 30cc gas tank w/ hypertonic lid & internal stone-type filter
• Flywheel aluminum flywheel
• Clutch bell HUDY steel clutch bell
• Clutch footwear CNC-machined aluminum clutch shoes
• Fuel tubing silicone gas tubing

Other people:

• Wheels: XRAY micro tires, adjustable track-width
• Tires: pre-mounted foam tires for optimum security
• instructions: full-color manual with 3D pictures
• Packing: carton package with 8 plastic bags with parts
• Additionals included: certificate, components list, decals, Hudy 3.0mm screwdriver, XRAY catalog, novice box
• Not included: radio system (transmitter and receiver), micro servos, lexan paint, gasoline, radiance plug heater, receiver battery power
