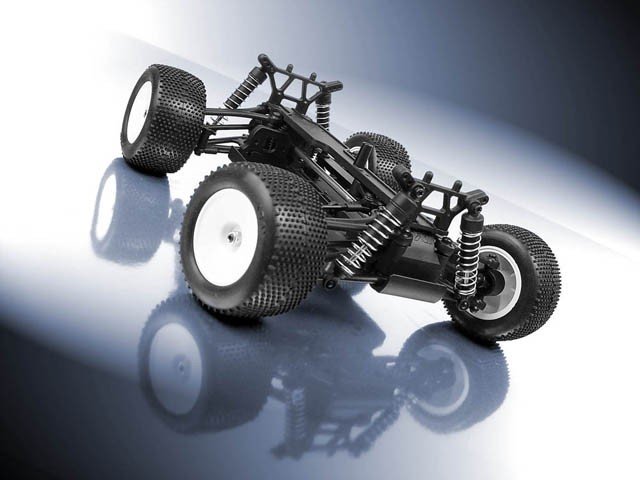

XRAY 380500 M18T - 4WD Shaft Drive 1/18 Micro Truck  [XR-380500]

Dimensions

• Class: 1/18 electric micro truck
• Front Width: 178mm
• Rear Width: 180mm
• Length: 211 mm
• Wheelbase: 150 mm
• Weight: 295 g
• Ready working fat: 535 g

Chassis:

• Chassis: composite CAD-designed chassis
• Upper deck: composite top deck
• Body: 150 mm 1/18 micro car body (included)

Drivetrain:

• Type: shaft-drive 4WD
• Drivetrain: aluminum primary driveshaft
• Primary drive: pinion/spur
• Drive ratio: 1:2.5
• Drive shafts: composite front side + straight back
• Differentials: composite ball differentials - adjustable front + rear
• Bearings: 22 high-speed ball-bearings

Suspension system system:

• Front: entirely independent
• back: totally independent
• Dampening: oil-filled coil-over shocks

Geometry:

• Camber: front/rear: -2° (preset)
• Caster: 12° (preset)
• Front Toe: toe-out 0.5° (preset)
• rear Toe: toe-in 3.5° (preset)
• Anti-roll pubs: 1.0mm front part + straight back (included)
• Wheelbase: 150 mm

Other people:

• Wheels: XRAY micro truck wheels
• Tires: XRAY micro vehicle low pin rubber tires
• guidelines: full-color manual with 3D images
• Packing: carton package with 8 synthetic bags with parts
• Additionals included: certificate, components list, decals, Hudy 3.0mm screwdriver, XRAY catalog
• Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery power, battery pack charger
