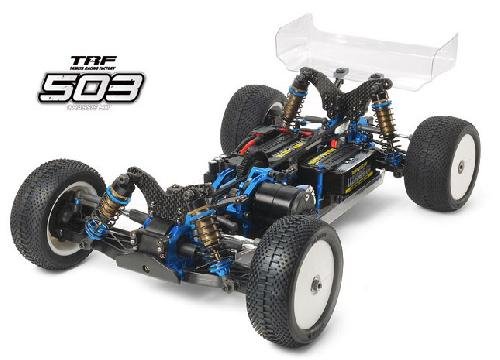

Tamiya 42275 - 1/10 RC TRF503 Chassis Set  [42275]

This is actually the new TRF503 4WD rushing buggy. The 503 originated thanks to your Tamiya rushing Factory group once again placing its extensive battle and evaluation experience to use for Tamiya’s rushing enthusiast clients. The TRF503 off road framework is an updated and modified as a type of the TRF511 that claims to possess more traction and enhanced cornering ability.

Specification

• Scale : 1/10
• Construction type : construction kit
• Terrain use : off-road
• Drive-train : 4WD
• Drive kind : belt
• Drive line : universal
• Differential kind : sealed oil-filled gear
• Suspension : entirely split dual wishbone
• Steering process : bell-crank
• Shock damper : oil-filled damper
• Shock damper product : aluminum
• Tire type : perhaps not included
• Tire tread : n/a
• Body product : Polycarbonate
• Chassis item : carbon dietary fiber plate
• Electronic Speed Control (ESC) : perhaps not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : perhaps not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe views : front side and rear
• Adjustable ground approval : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable surprise angle : yes
• Special function 1 : Features a long-wheelbase reduced deck. It is 7.5mm greater long compared to the 511 for enhanced managing on uneven areas.
• Special function 2 : The motor place ended up being shifted 10.5mm toward leading of the framework to improve controllability, although the engine mount is 5mm nearer towards centerline, which really helps to reduce framework roll.
• Special function 3 : the ability to handle higher-power engines is due to this new single-piece aluminum center pulley.
• Special function 4 : A weight reduction of up to 20per cent is attained by utilizing lightweight aluminum upper and reduced bulkheads.
• Unique function 5 : The aluminum suspension system dish is angled at 14 levels, which almost twin set alongside the TRF511. Damper accessory positions have already been raised 2mm about the front stay, for optimized front damper rebound.
• Original function 6 : Universal shafts are guaranteed with ring connectors.
• Special function 7 : Includes 39T oil-filled gear differentials, big bore aeration dampers
• Requires A : 2-channel radio gear & electronic rate control
• Requires B : 7.2 battery power & charger
• Requires C : polycarbonate paint
• Requires D : tires
