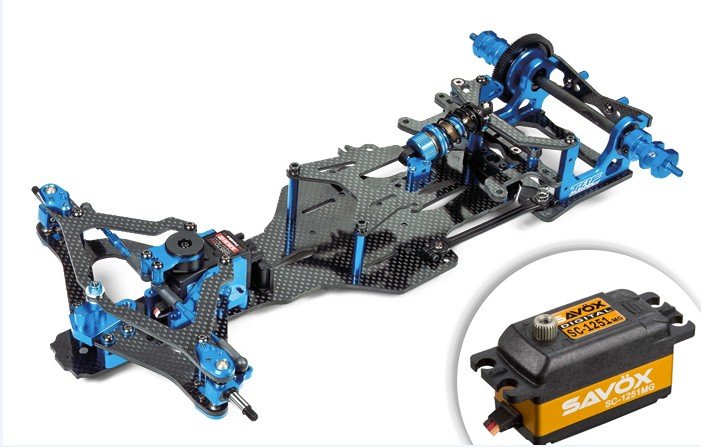

Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set  [42279COMBO]

About RC TRF101W

• The Tamiya Racing Factory has arrived up with a new variation regarding the TRF101. The "Wide-tread" Specification, designated when the TRF101W F1 framework kit, is ideally matched higher level racing circuits. The TRF101W advantages of the TRF group's wealth of racing experience and data. It retains many of the initial fundamental options that come with the TRF101 chassis while including several improvements to transform the best suspension system into a wide-tread device to help make the chassis appropriate "foam-tire" race. Other tweaks contain a 2.5mm depth primary framework to really make the vehicle more adaptable to low hold areas along with an alteration towards damper place to make initial dampening more efficient.

brand new characteristics:

• Revamped front suspension system arms: The redesigned carbon soluble fbre top supply piece is hitched with carbon fibre paid off hands to create the chassis excellent durability and improve the product's controllability. The front suspension system mount and aluminum servo stay will also be redesigned for the TRF101W framework.

• Better Flexibility: The thickness of this carbon soluble fiber reduced deck happens to be paid off to 2.5mm to supply greater framework freedom, that may provide improved safety on low-grip areas. Battery articles are moved forward, moving pitch lots nearer on leading regarding the product and boosting front part traction.

• Smoother, faster dampening: The newly-designed middle brace moves the pitch damper accessory spot 2.5mm on backside, resulting in faster effect and maintaining the automobile nearby the track area. The roll damper employs a brand new piston with equal contraction and expansion lengths for smoother performance.

Specs:

• Scale 1/10

• Construction kind: set up kit

• Terrain usage: On-Road

• Drive-train: 2WD

• Drive type: Pinion to spur gear

• Drive line: Solid axle

• Differential kind: Ball stress plate

• Suspension: Independent front/solid axle backside

• Steering system: Direct servo

• Shock damper: Oil-filled damper

• Shock damper product: Aluminum

• Tire kind: not included

• Tire tread: N/A

• Body item: not included

• Chassis material: Carbon fiber dish

• Electronic Speed Control (ESC): not included

• ESC model: N/A

• LED Light buckets: No

• LED lights: No

• Motor: N/A

• Bearings: Sealed ball bearing

• Adjustable camber: Front just

• Adjustable toe perspectives: Front just

• Adjustable ground approval: Yes

• Adjustable gear ratio: Yes

• Adjustable wheelbase: Fixed

• Adjustable track width: Fixed

• Adjustable surprise angle: Yes

• Unique function 1: Newly-designed upper supply piece, front suspension system mount, servo remain, center brace and roll damper.

• distinctive function 2: brand new: Lower hands are now actually made from carbon fibre material.

• distinctive function 3: ideal for square-shaped battery packages including shorty packages.

• Special function 4: The pivot-ball hyperlink back suspension system has 3 various part website link accessory jobs for fine environment alterations.

• Special function 5: 2.5mm thick Carbon Fiber Lower Deck

• Special function 6: Aluminum engine Mount

• Special feature 7: TRF Damper

• Special function 8: built-in Diff Plate and Rear Shaft

• Unique function 9: Track width with F103 foam tires: F: 198mm R: 198mm

• Special function 10: Track width with F104 synthetic tires: F: 198mm R: 180mm

• Needs A: 2-channel radio gear

• Needs B: 7.2 battery pack & charger

• Needs C: Wheels, tires, human body set, engine, esc

About the Savox - SC-1251MG Low Profile Tall Speed Metal Gear Digital Servo

• Here is the Savox SC-1251MG Low Profile Tall Speed Metal Gear Digital Servo

Features:

• Super high 4096 resolution and metal gears.

• Super light-weight.

• Coreless motor provides higher rate, amazing effectiveness, and low energy consumption than comparable servos.

• The aluminum situation design not merely seems good but additionally assists procedure to remain cool and smooth.

• Our servos are totally green - from materials to production, these servos are eco-friendly.

• Ideal as a steering servo for 1/10 area applications including in gliders and airplanes which have slim wing profiles.

Technical Specs:

• Dimensions(mm): 40.8X20.2X25.4

• Weight(g): 44.5

• Speed(@4.8V sec/60): .10

• Torque(@4.8V oz-in): 97.2

• Speed(@6.0V sec/60): .09

• Torque(@6.0V oz-in): 125.0

• Gear: Steel

• Bearing: 2BB

• Situation: Aluminum

• Running current (at no load): 150 mA @ 4.8V

• Operating present (at no load): 180 mA @ 6.0V

• Stall current (at locked): 2000 mA @ 4.8V

• Stall present (at locked): 3000 mA @ 6.0V

• Idle present (at stopped): 5 mA @ 4.8V

• Idle present (at stopped): 5 mA @ 6.0V

• Limit angle: 200 level +-10 level

• Connector wire measure: 22 AWG

• Connector wire size: 300 +-5 mm

• Horn gear spline: 25T

• Control system: Pulse width modification

• Amplifier kind: Digital controller

• Operating Travel: 100 degree (whenever 1000u->2000usec)

• Basic position: 1500 usec

• Dead musical company width: 5 usec

• Rotating way: Clockwise (when1500->2000 usec)

• Pulse width range: 700->2300 usec

• Optimum travel: Approx 160 level (when700->2300 usec)
