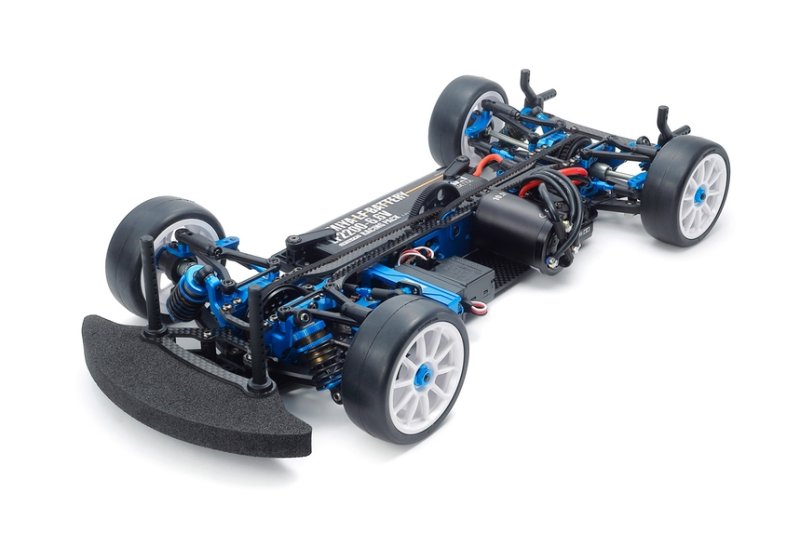

Tamiya 42384 - TRF421 Chassis Kit [42384]

Price:

£510.14

Brand:

Tamiya

Model:

42384

GTIN:

4950344423842

Condition:

Brand New

Quantity:

Available in warehouse

Write a review

alt="Tamiya 42384 - TRF421 Chassis Kit" title="Tamiya 42384 - TRF421 Chassis Kit"

Description

Tamiya’s TRF R/C designers don't ever sleep. They're typically constantly wanting to bring our numerous hardcore R/C rushing fans the top features capable be squeezed into a 1/10 scale touring vehicle framework! After two . 5 many years of development, we've make fully sure you get the ALL-NEW TRF 421. The maximum end touring automobile framework series we create has gotten another suspension system system and design makeover!

New features:
This 2-belt driven 4WD carbon fiber double-deck design is filled with new features such as for example an updated drivetrain, a fresh reduced deck kind, front and back top A arms, and fresh faster dampers, that vow to bring about serious cost on program! Other notable features consist of a choice between one- and two-piece upper deck designs for different chassis flex faculties, plus updated suspension system system geometry that keeps the framework more stable.

Key qualities:
The Drivetrain employs a front direct coupling and straight back oil-filled gear diff. Equal size front side and rear drive belts minmise pitch.

suspension system system system hands are a rigid "A" design with 7mm longer duration compared to the TRF420X for stable roll, while top supply mounts might be slid to modify camber.
Three damper pivot jobs can be obtained.

Dampers are 5.5mm paid off than regarding TRF420X, for a lighter framework and lower center of gravity. Attach them straight to aluminum mounts and fine-tune with spacers.

• 1/10 scale R/C framework installation kit.
• The drivetrain features the engine destination moved 22.7mm toward the framework center compared to the TRF420X Chassis Kit and has now now identical size front side and back drive belts for stable drivability.
• With updated setup of spur gear and drive belts, only one specific nut must attach spur gear, which improves effectiveness of maintenance.
• the modern reduced deck is smaller set alongside the one put on the TRF420X Chassis Kit to limit ground clearance when the framework experiences roll.
• pick from two kinds (one-piece and two-piece) of top deck. Changing screw functions allows five setup practices totally.
• A-shaped suspension system arms are utilized for greater rigidity. (The 420X framework kit utilizes I-shaped suspension system arms.) Longer reduced supply spans restrict swing width and ensure safety once the framework experiences roll.
• and longer reduced supply spans, front side and back suspension system setups are changed from suspension system system obstructs to suspension system balls. Approximately 7mm-longer supply spans restrict move width and guarantee protection whenever chassis experiences roll.
• Toe angle could possibly be modified by uprights. (The toe angle of repaid supply inside is 0 amounts.)
• Three accessory damper roles (interior, center, and external) on front and back paid off fingers can be seen by two types of aluminum bushings.
• Changing jobs of top supply mounts by screws allows changes to front and straight back caster perspectives, that's appropriate present high-downforce events. Front caster available views: 3, 4, and 5 levels. Straight back caster available views: -.5, -1.5, and -2.5 amounts.
• Dampers are faster by 5.5mm compared to the 420X framework kit, which supplies a very low center of gravity and reduces the excess fat, for a effective driving experience.
• specific damper ends are employed front and back to guarantee the identical piston degree.
• groundbreaking damper oil seals (item 51738) are acclimatized to keep carefully the maximum oil volume and to make the most of oil dampers effortlessly.
• Although the 420X framework kit employs carbon fibre damper stays, this framework kit employs aluminum mounts for exact angle modifications based on the number of spacers utilized.
• Front and back differential pullies are newly molded while direct coupling and oil-filled gear differential are used at front side and backside, correspondingly. (The presently sold Hop-Up choice and free Parts may be used.)
• the very best features double cardan joint shafts while right back employs lightweight universal drive shafts. Completely new axle shafts (product 42388) and 45mm drive shafts (item 42387) may useful for both front and back to ensure efficient drivetrain and upkeep.
• Newly designed lightweight back wheel axles enhance durability.
• Precision stabilizers are attached at a substandard place than drive shafts for efficient maintenance of drivetrain. Includes 1.0mm diameter (x1), 1.1mm diameter (x2) and 1.2mm diameter (x1).
• The steering system pairs twice steering arms and Ackerman bush with a whole new steering connection. Three forms of fresh spacers featuring various diameters permit steering angle modification.
• Includes Sealed Ball Bearings from TRF show for efficient rotation and Item 22078 Aluminum Differential Holders (0.8mm Offset, 2pcs.).
• The newly molded quick-plate design battery pack owner wont need tape for accessory. According to the battery pack ready, alter jobs of spacers and articles. Shorty pack appropriate.
• includes a carrying situation dedicated to the TRF421 framework kit.
• had a need to complete: 2-channel radio, low-profile steering servo, ESC, 540 motor, tires and tires, 190mm TC or low driver body, 7.4volt battery and suitable charger.

Specification:

Adjustable Gear Ratio : Yes
Bearings : Includes complete ball bearings
Chassis Material : Carbon Fiber Weave
Chassis Type : TRF421
Construction sort : put up Kit
Differential Type : Front-Direct Coupler SPOOL, Rear-Oil-Filled gear
Drive Type : 4WD
Electronic Speed Control (esc) : available Separately
motor : Sold Separately
Required To Complete : 2-channel radio, low-profile steering servo, ESC, 540-racing engine, wheels/tires, 190mm 1/10 body, 7.4volt battery & suitable battery pack charger
Scale : 1/10
Shock Damper : Oil-filled damper
Suspension : totally Independent Double Wishbone
Terrain Use : On-Road
