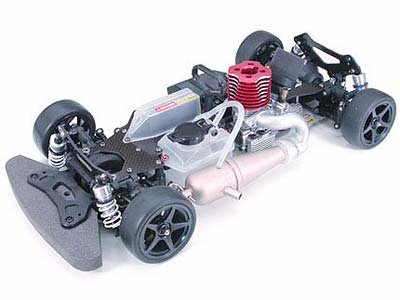

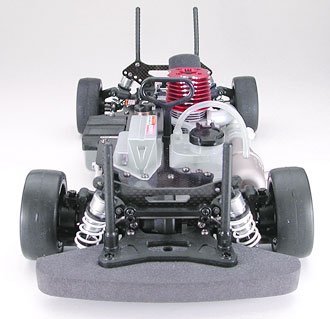

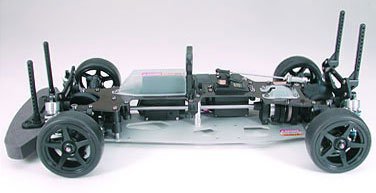

Tamiya 44032 - 1/10 TG10R Chassis Kit  [44032]

Towards TG10R

The glow-engine (TG10) battle scene is actually faster and hotter than previously aided by the new battle version of the radiance motor framework, the TG10R. Made for racing, this framework employs a 2.5mm dense, hardened carbon double-deck framework. The framework furthermore packs 4-wheel dual wishbone suspension system system and high-efficiency TRF dampers and stabilizers. 2.5mm dense carbon damper stay is fine-tuned and is highly responsive. This 198mm wide framework assumes on high-speed cornering with remarkable stability. The TG10R framework employs comparable 6mm diameter axles utilized in the 1/8 Scale R/C Glow Engine automobile TGR framework and brings along with it exactly the same power. Giving an answer to expert motorist demand, this framework comes entirely full of requirements required for rushing regarding side!

Essential Rushing Features

• Complete ball bearings
• Carbon-built top deck
• Front/Rear carbon damper remain 2-speed goal
• High-grade stopping system disk TRF
• Damper Front universal shaft
• Front/Rear stabilizers Medium-narrow tire, kind A

Fundamental Specifications

• General length: 376mm
• Overall width: 198mm
• Total height: 100mm (not including human body mounts)
• Clearance: approx. 7mm (adjustable)
• weight completely equipped: 1,580g (unfueled with 4 R6/AAUM3 batteries, Novarossi engine and TM2 Muffler)
• Wheelbase: 260mm
• Tread F/R: both 174mm
• Chassis item: 2.5mm Duralumin +2.0mm Carbon Fiber
• Chassis shape: double deck framework
• Steering tie pole: 3 component
• suspension system system: front side and rear dual wishbone
• Caster angle-F/R: 8deg/0deg
• Camber angle-F/R: adjustable
• Toe angle-F/R: adjustable/1.5deg
• Damper: F/R TA04R super low-friction
• Transmission type: Shaft drive full-time 4WD
• Gear ratio: 8.1:1-6.4:1 (7.5:1-5.6:1)
• Diff. gear system: F/R 3-bevel diff
• Gas tank ability: 75cc
• Brake: disk type
• Tire width: F/R both 24mm
• Tire diameter: F/R both 64mm
• Tread pattern: F/R slicks
