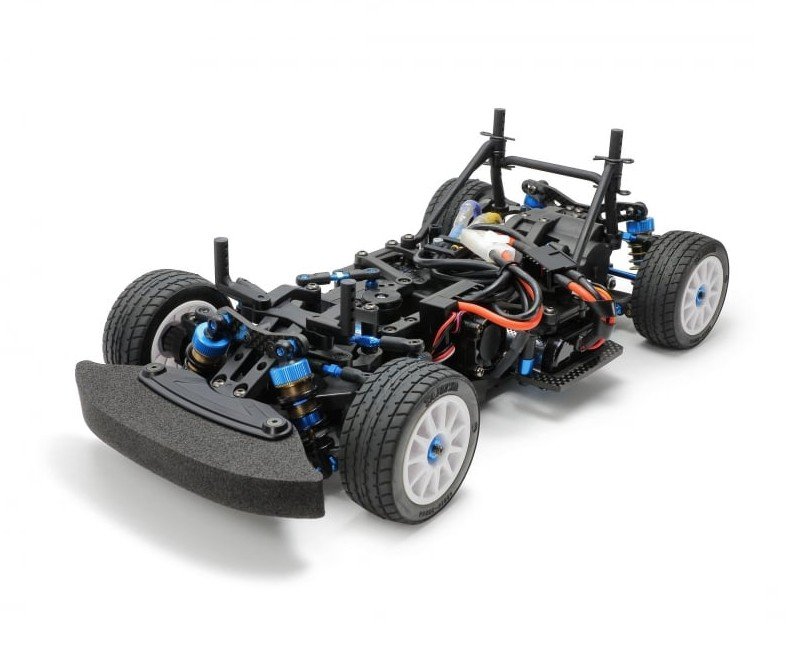

Tamiya 47480 - 1/10 M-08R Chassis Kit RWD  [47480]

The M-08R adds a variety of race-spec elements towards the balanced, compact RWD M-08 Concept framework: a good example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminum move shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension system system supply and steering setup elements simplify fine-tuning of M-08R, and titanium-coated shafts are a durable addition in kit. Carbon fibre damper remains are in conjunction with M-Chassis big bore aluminum dampers+ featuring dedicated blue anodized top and base caps for just a little program, while a 20-gram ballast fat is roofed getting the framework feeling so just how you will need it to.

Featured Elements

Drivetrain:

• Comprehensive ball bearings
• Ball differential (52T)
• 33mm lightweight aluminum swing shafts
• Cross joint for LF construction kind universal shafts
• 06 module fluorine coated 20T pinion gear
• M-08 Concept aluminum shafts
• M-Chassis reinforced freewheel axles
• 5mm clamp-type wheel hubs

Suspension System:

• Carbon soluble fbre damper continues to be (front/rear)
• Reinforced D elements (suspension system system arms)
• Aluminum turnbuckle shafts
• Titanium coated suspension system system system shafts
• 5x5mm, 5x11mm hard hex mind ball connectors
• M-Chassis big bore aluminum dampers+
• 3x 1.3mm-hole pistons
• 4mm aluminum serrated wheel peanuts (blue)
• 5mm reinforced open face adjusters

Chassis:

• Carbon fibre battery power holder
• Carbon fiber human body mount base
• Reinforced K components (gearbox)
• Chassis security fat (20g)
• Hi-torque servo saver
• Aluminum ball connectors (blue)
• Hex mind screws

Demands

• Length: 319mm (with 225mm wheelbase), width: 165mm
• Alterable wheelbase: 210mm, 225mm, 239mm
• Monocoque framework with separate front side and back sections
• Midship engine, rear-wheel drive
• Ball differential
• 3-piece steering tie-rod
• 4-wheel double wishbone suspension
• M-Chassis big bore aluminum dampers+
• Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are feasible with separately sold pinions)
• Electronic price controller (ESC) comes independently.

Separately Required Products

• Body
• Type 540 engine (brushless is recommended)
• Tires
• 2-channel R/C system w/ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
