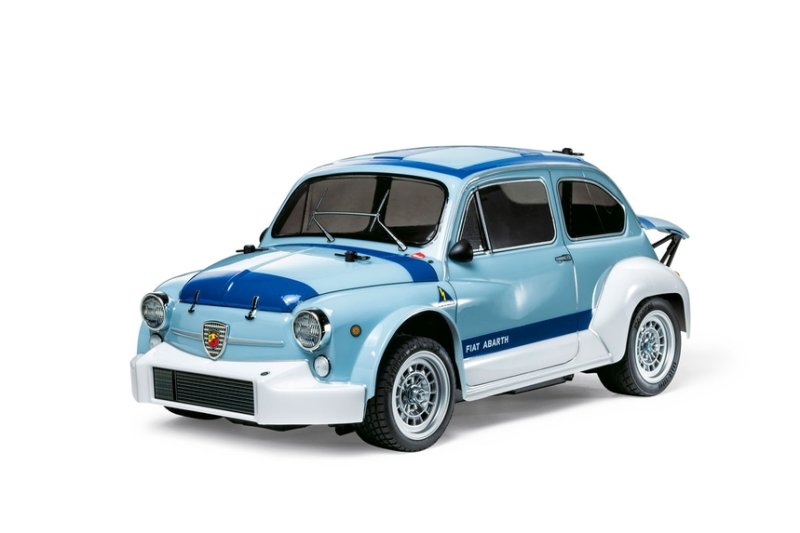

Which a limited-edition version of the Fiat Abarth 1000 TCR Berlina Corse (item 58721-A) kit with pre-painted, pre-cut body and wheel arches, ideal for not only beginners and veterans linked to hobby.
the motivation of M-chassis show history dates back to December 1994, which reveal is popular as a result of economical kits with a straightforward collection of numbers, simple upkeep and control for every level person. Enter the all-new MB-01!
the most up-to-date MB-01 framework continues that tradition and allows six setups by choosing from three forms of wheelbases, and front- or rear- wheel drive system. Its first human anatomy recreates the Fiat Abarth 1000 TCR Berlina Corse that's been an auto developed with a top degree tune-ups with regards to the lightweight 2-door Fiat 600.
The MB-01 Chassis
The compact, 2WD MB-01 framework offers an array of three types of wheelbases, and front- or rear- wheel drive system. This model employs a midship motor, rear-wheel drive setup. Without eliminating electric batteries, motor, and R/C gear setups from the center framework, simply alter accessory recommendations of final gears and steering linkage to change between front- and rear-wheel drive; low or high engine place are opted for for rear-wheel drive vehicles. The 4-wheel double wishbone suspension system system features symmetrical framework and friction dampers. Unitized parts such as engine mount, last gears and suspension system enhance simple put up and effective maintenance.
• Length: 322mm, width: 163mm. Wheelbase: 209mm (S) / 224mm (M) / 239mm (L) (*Fiat Abarth employs the LONGER wheelbase setup).
• The multi-purpose, 2WD MB-01 framework provides alternatives of three kinds of wheelbases (*), and front- or rear- wheel drive system. Six setups comes in total.
• Merely alter accessory directions of last gears and steering linkage to change between front- and rear- wheel drive; low or high engine place might chosen for rear-wheel drive automobiles.
• Unitized sections specifically engine mount and last gears facilitate simple put up and effective upkeep.
• The 4-wheel double wishbone suspension features symmetrical framework and friction dampers.
• While which a 2WD model, multi-link suspension system system system works together with with tires featuring the exact same element and back tire with toe-in as 4WD models.
• Gear ratio: 5.83: 1 (when working with kit-standard 29T pinion gear)
• Features 55mm diameter front side tires and 60mm diameter back tires to authentically reproduce the stance concerning the genuine automobile.
• numerous Hop-Up choice elements for M-chassis and TT-chassis cars allows you to fine-tune setup.
• Includes 540 motor and ESC.
• necessary to finish: 2-channel radio, steering servo, 7.2-7.4volt battery with appropriate charger.
