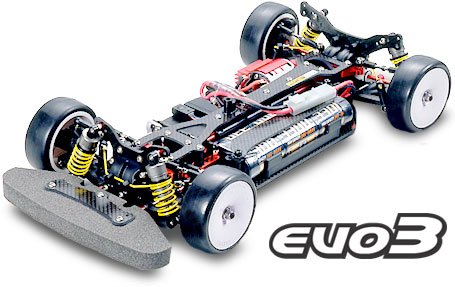

Tamiya 49283 - 1/10 RC TB Evo.3 Surikarn Ltd. - Limited Edition - TB Evolution III Chassis  [49283]

Tamiya is proud to provide the TB Evolution III that permitted Surikarn Chaidejsuriya to take the triumph both in Modified Class along with inventory Class through the Thailand Overseas Touring vehicle Championship that took place final February. This restricted edition kit is released to celebrate these great victories and provide champion program performance. TB Evolution III Surikarn Limited framework employs many especially developed components and option components. A pure racer simply for you! As soon as the highest level of R/C framework development gets with the choice and particularly created elements used by the greatest R/C racer on earth, the end result is nothing lower than quality. It features a 3mm thick reduced deck (Standard Evo. III features 2.5mm thick reduced deck) to build a lowered center of gravity (reduced balance). Red anodized components boost the machine's "hot" appears.

Presenting Surikarn Style

• Red anodized aluminum elements
• Titan hex screws and titan turnbuckle shafts
• Rubber sealed ball bearings
• 3 mm thick reduced deck
• strengthened diff. joint with back lightweight universal shafts
• SOREX tires (36R)
• Newly designed aluminum top supply mount
• Newly designed front/rear unique damper stay
• Newly created carbon dish for one-way item
• Evo III unique stickers
• a whole new packaging

fundamental specs

• Total size: 365mm
• Total width: 190mm
• Clearance: 5mm, Weight Fully-Equipped: 1,440g (dimension includes TP-S3003 servo, CPR Unit and RC2400SP Battery with RS-540 motor)
• Wheelbase: 259mm
• Tread F/R: 163mm
• Chassis Material: Carbon
• Chassis Shape: Double-Deck Frame
• Steering Tie Rod: 3 part
• Suspension: Front and Rear Double Wishbone
• Caster Angle-F/R: 4deg/0deg
• Camber Angle-F/R: adjustable
• Toe Angle-F/R: adjustable/2 to 3.5deg
• Skid angle-F/R: both 0deg (adjustable)
• Damper: F/R TRF Super Minimal Friction Dampers
• Drive train: Shaft-Driven 4WD
• Gear Ratio: 7.34:1, 6.88:1 (Standard in kit)
• Diff. gear system: F/R One-Way/Ball-Diff
• Speed Controller: Electronic Speed Controller
• Tire Width: F/R both 24mm
• Tire Diameter: F/R both 64mm
• Tread Pattern: F/R Slicks.

Required Products (maybe not included)

• Body
• RS-540 Type Motor
• R/C unit: Adspec GT-I or 2-channel R/C system with electronic price controler
• Battery: Tamiya 7.2V Racing Pack or comparable
