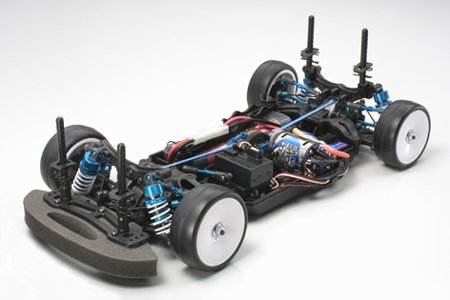

Tamiya 49418 - 1/10 RC TA05-R Chassis Kit - TA05 R Chassis  [49418]

The widely acclaimed TA05 chassis has been utilized as a mid-range on-road touring car chassis, but now Tamiya releases a specially-tuned race variation kit packed with option elements the circuit. It's well suited for going into the Tamiya Grand Prix occasions with.

Notice When Working With TA05-R

an operating R/C automobile constantly charges and discharges static electricity caused by friction from pulley and belts/gears, etc.

The quantity of fixed electricity which accumulated improvements according to conditions such as for instance heat, moisture, driving environment, component material, and framework design. Some R/C automobiles may experience technical trouble or out-of-control driving as a result of sudden release of fixed electricity.

we have discovered that the component design the TA05-R Chassis Kit (ITEM 49418) causes it to be reasonably vulnerable to the situation described above, if found in combination with a metal-geared servo under particular conditions.

As a preventive measure, utilization of the TA05 Lightweight Carbon Lower Deck (ITEM 53893) is preferred. This carbon and fiberglass deck effectively dissipates fixed electricity generated during R/C car procedure.

with regards to the Model

• All-new aluminum center plate, blue anodized aluminum spur gear owner, and carbon fibre damper continues to be reinforce the framework while reducing fat.
• Impressive report on included choice and free components:

  51000 tall Torque Servo Saver (Black)
  51065 TRF415 suspension system Mount (A)
  51068 TRF415 Suspension Mount (D)
  53539 5.5mm Aluminum Spacer Set
  53640 5mm Aluminum Bolt Nut (Blue)
  53642 5mm Aluminum Ball Connector (Blue)
  53644 Aluminum Stabilizer End (Blue)
  53685 TRF415 Front Bridge Suspension Mount (A)
  53823 Clamp Type Aluminum Wheel Hub (5mm thick)
  53836 48mm Swing Shafts for Assembly Universal Shaft Set
  53849 TA05 Tall Precision Diff Joint
  53857 04 GP Spur Gear 105T (TA05)
  53869 5mm Aluminum brief Ball Nut (Blue)
  53871 48mm Lightweight straight back Swing Shafts (Blue)
  53874 TA05 high Precision Center Pulley Bushing
  53894 TA05 Carbon Strengthened A Components
  53895 TA05 Carbon Reinforced K Parts
  53897 TA05 Aramid Drive Belt (Blue)
  53899 Reversible Lightweight Suspension Set
  53918 TRF Damper Low-Friction V Parts
  53935 TA05 Wide Pitch Diff Pulley
  53571 TRF Fluorine Coated Damper
  53842 TA05 Stabilizer Set (F&R)


• TRF Dampers (Blue), Damper Springs (White), Front/Rear Stabilizers, and Aluminum Turnbuckle Shaft (Blue) may also be one construction kit.
• R/C system, ESC, battery, body, engine, tires, and pinion gears are sold independently.
