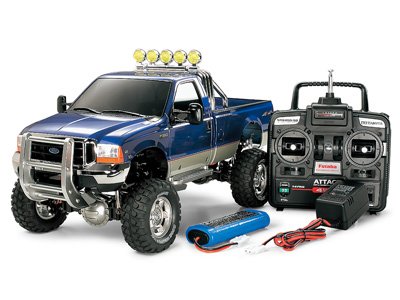

Tamiya 57059 - 1/10 R/C Ford F-350 High-Lift Full Operation Kit  [57059]

Electrical R/C set up kit of one among many extremely representative United States pick-up vehicles, the Ford F-350. The model features practical ladder framework, 3-speed transmission and shaft drive 4WD system. Undoubtedly step-by-step injection molded human anatomy and large diameter tires raise the stylish high-ground-clearance look. Initial marking stickers add to the truck's fundamental realism.

METAL & METAL PLATED ELEMENTS

• A good amount of steel parts particularly ladder framework, under guard, front part guard, leaf springs and aluminum friction dampers are included.
• Roll club, road light, front grille, front/rear bumper, side-step, diff guard, tires and muffler function metal-plated finish.

ADD Light-emitting Diode LIGHTS (SOLD SEPERATELY) usage Multi-Function unit to depict performing headlights, end lights and go club lights also to get more amazing realism.

MULTI FUNCTION DEVICE This Multi Function product brings more satisfaction towards procedure regarding the R/C Ford F350. Featuring realistic sound effects recorded from genuine cars, controllable Light-emitting Diode lights alongside movement impacts, this product will dramatically expand the potential of your Ford F350.

LADDER FRAME Durable and practical ladder framework includes steel channel and resin cross member.

PROPELLER SHAFTS F/R propeller shafts function universal joint to effectively move energy in the event suspension system system is updating and down.

FAST BATTERY HOLDER

• Battery held in low place for excellent fat balance and safety.
• Comfortable access owner allows operating battery pack become exchanged minus the removal of human body.

4WS STEERING ROD

• 4 wheel steering is enabled by adding kit provided rear axle anxiety pole.
• 4-wheel steering enables additionally tighter switching radius, perfect whenever using vehicle inside or in restricted room.

WHEELS & TIRES

• Newly designed monster vehicle tires feature lug pattern fitted to driving on rough surfaces.
• Apply concrete to tires and tires whenever operating on rough terrain.
• Exhausted wheel hubs might be changed with #53056 Pin type Wheel Adapter.

3-SPEED TRANSMISSION

Newly created 3-speed transmission provides
smooth good deal running, and allows gear
changing while running.

Includes slipper clutch as standard component to protect
gears during tough off road running

DIFFERENTIAL GEAR Durable resin gear situation with integral die-cast differential gear.

DIFFERENTIAL LOCK

• Differential lock, required for driving on rough roadways, are just enabled by simply eliminating F/R diff instance covers and having reduce screw pins.
• Through differential lock, drive power is transmitted even yet in the event tires making use of one part are not grounded.

LEAF SPRING SUSPENSION F/R suspension system with friction dampers enables tension modification by altering wide range of leaf springs.

FRICTION DAMPERS

• Features red anodized aluminum cylinder. Damping impact is modified through the use of individually available Friction Damper Grease and including o-rings. Select in accordance with ground conditions and leaf springtime amount.
• Standard: normal operating standard settings.
• Soft: low-speed, high hold running use 2 leaf springs and adjust stress utilizing damper oil (soft) #53174.
• Tricky: stable and high-speed running usage 5 leaf springs and use damper oil (medium) #53175 or (hard) #53176.

BEARINGS

• Kit includes a complete of 42pcs of metal bearings(bushings) (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size metal and 1pc of 1050 size ball bearings).
• Steel bearings need regular application of oil to keep performance. Separately available ball bearings cannot need this treatment, and so are suggested.

MOTOR

• This kit had been made become utilized simply with pre-supplied sort 540 engine and pinion gear.

NEEDED ITEMS (NOT INCLUDED) BROADCAST DEVICE TRANSMITTER, RECEIVER, ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO

• Requirements 4-channel, 2-servo electronic proportional R/C item with electronic speed controller with variable ahead and reverse function.
• Usage of Futaba Attack 4WD (4ch) or stick nice transmitter with slide trim is recommended to execute gear modification while operating. The Airtronics VG400/600 model radios have the capability since they function fall trim and self fundamental control sticks.
• 2ch R/C item may not be used since it cannot shift gears.
• PCM type receiver is probably not utilized as it might cause radio disturbance when working with with separately available Multi Function Device.

• Make use of high energy type ESC with reverse function (optimum constant present: forward 120A, reverse 60A, FET legislation).
• A high-spec ESC is specially suggested whenever running on rough area.
• TEU-302BK Electronic Speed Controller (PRODUCT 45028) is advised.
• Not to be used with TEU-101BK Electronic Speed Controller.

• While standard type steering servo is enough, high torque servo is preferred whenever operating on rough terrain.
• Using ITEM 50473 Tall Torque Servo Saver White or ITEM 51000 high Torque Servo Saver Ebony will further enhance effectiveness.
• Prevent little, big or high-speed servo.

• Tamiya 7.2V running electric batteries (ITEM TA201)
• Eight R6/AA/UM3 batteries for transmitter.

Battery and broadcast information 1. Any Tamiya 7.2V battery pack allows you to power the vehicle. Different milliampere-hour (mAh) values may impact the quantity of running time enabled by the battery power. Including, 7.2V 1400SP battery power should ordinarily enable 10 to 15 minutes of running time. But be sure to be aware that actual operating time may decrease as a result of extensive complete throttle and also other high energy running.

2. another 4-channel R/C unit (self-neutral stick type transmitter/receiver) is preferred for optimum procedure: FUTABA ATTACK 4WD (T4VWD/FP-R114H) The Airtronics VG400/600 model radios is likewise capable as they work slip trim and self basic control sticks.

keep in mind that making use of an R/C device without a self-neutral system may increase trouble of procedure. Without self-neutraling websites (springtime loaded sticks) the operator is kept to focus on the throttle and steering minus the help of self-centering springs, making driving the vehicle harder than it needs become.

4-channel wheel-type transmitters can be utilized with ITEM 58372, but won't be in a situation to be utilized with kit full of Multi-Function item (become released).

PPM receivers are suitable for use with this kit.
PCM receivers aren't right for kit designed with Multi-Function unit.

Other manufacturers' radio control services and products of 4 or even more networks may be used, but might not recognize the most functioning making use of this kit.
Suggested utilizing comparable R/C device as used in combination with ITEM 56511 Tractor Truck Multi-Function Control

ELECTRICAL KITS NEED: (unless promoted in another way above)

• Broadcast: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or top for 6-cell battery pack
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Goods: Building and track gear
