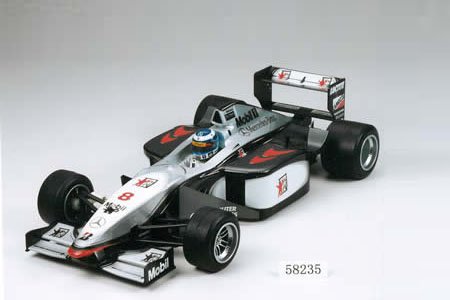

Tamiya 58235 - RC McLaren Mercedes MP4/13 - F103RS  [58235]

Electric broadcast Control automobile installation Kit based on the 1998 F1 Grand Prix Championship car, McLaren Mercedes MP4/13. Its lightweight yet rigid polycarbonate body comes with a realistically reproduced front and straight back wing plus component mounted deflectors. Includes Germany GP markings FRP framework comprises of lightweight, simple half-double deck for responsive running. Car comes standardly loaded with high accuracy ball differential gear for smooth cornering. Chassis is similarly balanced on right and left sides, further boosting cornering. Features left/right separate suspension system on front side and 3-point suspension system with friction damper on rear constructed with reinforced race slicks Tires designed with one-piece aramid fiber gear, heightening rigidity and traction. Is sold with 540-type motor

Specs

• Overall size: 397mm
• Overall width: 201mm
• Overall height: 97mm
• Minimum approval: 7mm
• Car fat: 660g
• Weight completely ready: 1110g
• Wheel base: 260mm
• Tread (front/rear): 170mm/155mm
• Chassis product: 2.5tFRP
• Chassis type: half-double deck
• Steering tie-rods of equal size enable main servo mounting.
• Front suspension system system: master pin/coil spring
• Rear suspension: rigid/T-bar
• Caster angle (front/rear): 6/0�
• Camber angle (both front/rear): 0�
• Toe angle (front/rear): 0� (adjustable) /0�
• Rear damper: adjustable friction damper
• Drive system: side-winder/direct drive
• Gear ratio: 3.7:1
• Diff. gear system: ball diff. Front tire width/diameter 30/56
• Rear tire width/diameter: 45/58
