Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis [58243]

Price:

£231.79

Brand:

Tamiya

Model:

58243

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis" title="Tamiya 58243 - 1/10 TA03R-S TRF Special Chassis"

Description

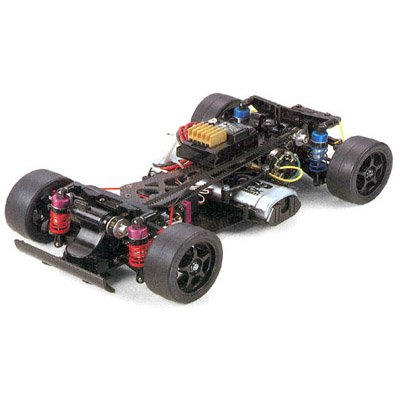

In regards to the Model A new TRF Chassis addition towards 1/10 electric touring car TA03 show, which will be a favorite among R/C fans. The TA03R-S TRF Unique Chassis Kit features a midship installed motor for fast maneuvering and 28 option components for improved performance. Lightweight, rigid double deck framework kit consists of perforated 2.5mm dense carbon soluble fiber main framework and 2mm dense carbon fibre upper deck. Effective belt driven 4wd framework with four wheel split double wishbone suspension system, full bearings and lots of other race-tested option elements. Responsive framework satisfies the strict demands of experienced drivers. Super minimal Friction Dampers, Universal Shafts and a number of specifically colored aluminum components create the special kit image.

Fundamental Demands

Overall Length= 354mm
General Width= 192mm
Clearance= 9mm
Weight Fully Equipped= 1400g (Measurement includesTP-S3003 servo, CPR unit and 1700SP Battery. Body maybe not included.
Wheelbase= 237mm
Tread F/R= 157mm/165mm
Chassis Material= 2.5mm dense Carbon Fiber+2.0mm dense Carbon Fiber
Chassis Shape= Double Deck
Steering Tie Rod= 3 component
Suspension= Front and right back twice Wishbone
Caster Angle-F/R=8/3
Camber Angle-F/R=1.5/1.5
Toe Angle-F/R=Variable/1.5
Damper= F/R Super minimal Friction Dampers
Transmission Type=Belt Driven 4WD
Gear Ratio=7.34:1
Differential=F/R One Way/Ball Differential
Recommended Speed Controller: Electronic Speed Controller
Tire Width/Diameter=27/65mm
Tread Pattern=Front and back Reinforced Racing Slicks Type the
Tire Material=Synthetic Rubber

Necessary products (Available independently)

Body: 1/10 Touring vehicle Body (50695 Taisan Starcard Porsche 911GT2 and 50747 Porsche 911GT1)
R/C device: Adspec GT-I or 2-channel R/C product with electronic rate control
engine: RS540 course
Battery: Tamiya 7.2V rushing Pack

ELECTRICAL KITS NEED: (unless reported in a different way above)

Radio: 2-Channel with servo(s)
Battery: 6-cell flat with standard Tamiya connector
Charger: AC/DC timed or top for 6-cell battery pack
Paint: PS for Polycarbonate/TS for ABS
Misc. Products: Building and track gear
