NSX racers are dominating the 2000 Japanese GT Championships (JGTC). In the group, the most used Raybrig NSX devices are displaying a blue and gunmetal human body. Kit replicates the appealing vehicle with competitive electric TB-01 framework. This form of TB-01 is perfect for On course rushing and features lightweight elements including drive train.
Longitudinally mounted motor/Shaft drive 4WD Chassis Kit incorporates TB-01 Chassis which does exceptionally efficient power transfer by longitudinally engine mounting and shaft drive 4WD. The tough framework consists of bathtub type main framework and top framework. Another feature is its low center of gravity by the flat mounting of RC system and battery pack. This structure is important in stable running.
4 Wheel Independent Suspension with Oil Dampers Double wishbone suspension adopts oil dampers for smooth impact moderation. Kit is sold with one piece, 6 spoke tires and pneumatic slick tires.
Lightweight Elements For better on-road performance, model incorporates newly developed aluminum propeller shaft and lightweight musical organization gears. Because of these improvements, the framework vehicle weighs 130g lighter compared to the initial rally variation, ideal for the RC Mitsubishi Lancer Evolution VI WRC.

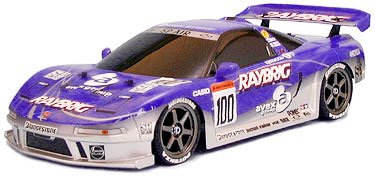

Aerodynamic and Realistic Body The sleek human body is replicated with polycarbonate. It is actually aerodynamically sensible similar to its original counterpart. Along with sponsor markings, kit includes blue and gunmetal stickers to help alleviate the artwork with this body.
variety of Hop-up Optional Parts it is vital to tune your unit to a lot of various courses. A diversity of hop-up options and extra elements are about for TB-01 framework.
Model needs
- General Length: 434mm
- general Width: 194mm
- General Height: 120mm
- weight Fully Equipped: 1,640g (including TP-S3003 Servo, CPR device and RC2400SP Battery)
- Wheelbase: 257mm
- Tread (front/rear): 155/164mm
- Chassis Material: ABS
- Chassis Type: Bathtub Frame
- Steering Tie Rods: three sections
- Suspension system: front side and rear double wishbone
- Caster Angle (front/rear):10�/0�
- Camber Angle (front/rear): adjustable
- Toe Angle (front/rear): variable/2�
- Dampers (front/rear): CVA oil dampers
- Drive Train: shaft drive 4WD with longitudinally mounted motor
- Gear Ratio: 7.94:1(9.91- 5.72)
- Diff. Gear System: front and straight back 3 bevel gear differentials
- Speed Controller: technical rate controller included
- Tire Width (front side and rear): 27mm
- Tire Diameter (front/rear): 65mm
- Tread Pattern (front side and back): race slick
- 540 type engine included
Needed products (individually Available)
- RC System:Adspec GT-II (standard system for use with kit included technical rate controller),or Adspec GT-I (which comes with electronic rate controller), or comparable 2-channel RC system.
- Battery: Tamiya 7.2V Racing Pack
